2.3 Motherboard rear and audio connections

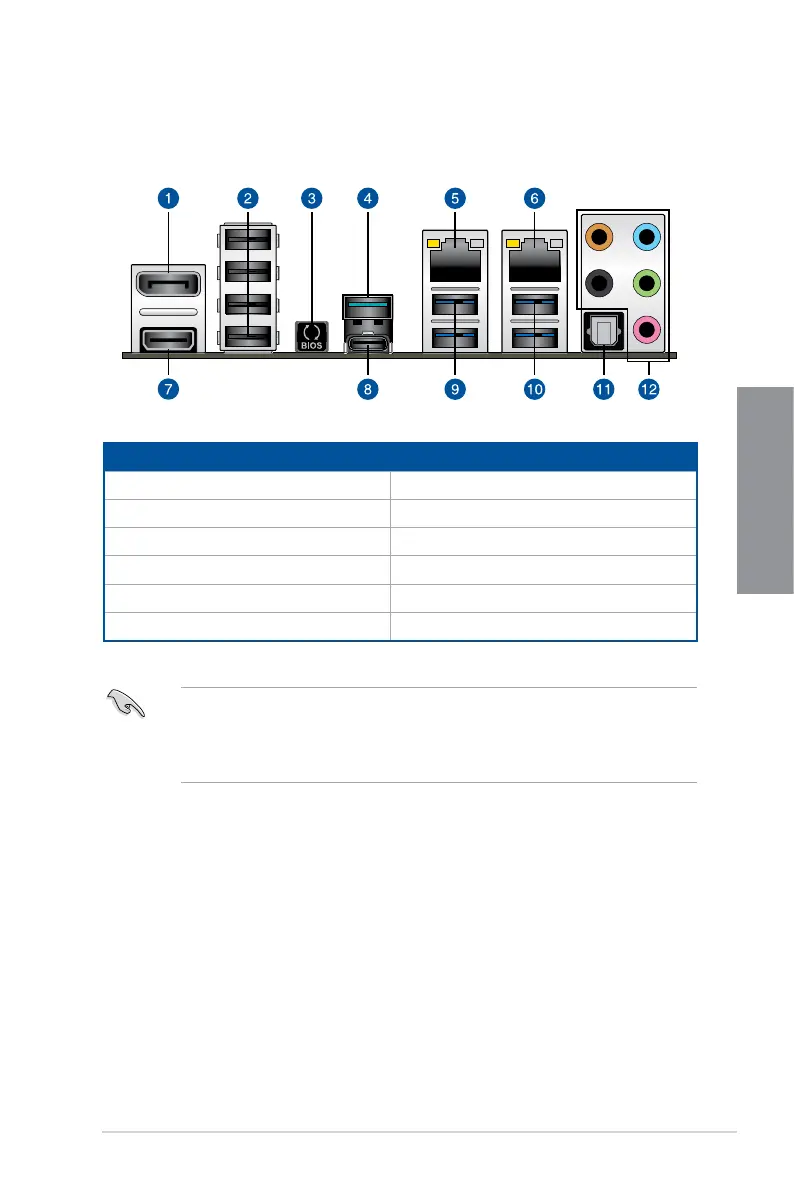

2.3.1 Rear I/O connection
Rear panel connectors
1.
DisplayPort 7. HDMI port
2.
USB 2.0 ports 7-10 8. USB 3.1 Type-C port EC2
3.
USB BIOS Flashback button 9. USB 3.0 ports 3 and 4
4.
USB 3.1 Type-A port EA2 10. USB 3.0 ports 5 and 6
5.
Intel
®
LAN port 1* 11. Optical S/PDIF Out port
6.
Intel
®
LAN port 2* 12. Audio I/O ports**
* and ** : Refer to the tables on the next page for LAN port LEDs and audio port definitions.
 USB3.1/3.0devicescanonlybeusedasdatastorageonly.
 Westronglyrecommendthatyouconnectyourdevicestoportswithmatchingdata
transfer rate. Please connect your USB 3.0 devices to USB 3.0 ports and your USB
3.1 devices to USB 3.1 ports for faster and better performance for your devices.
