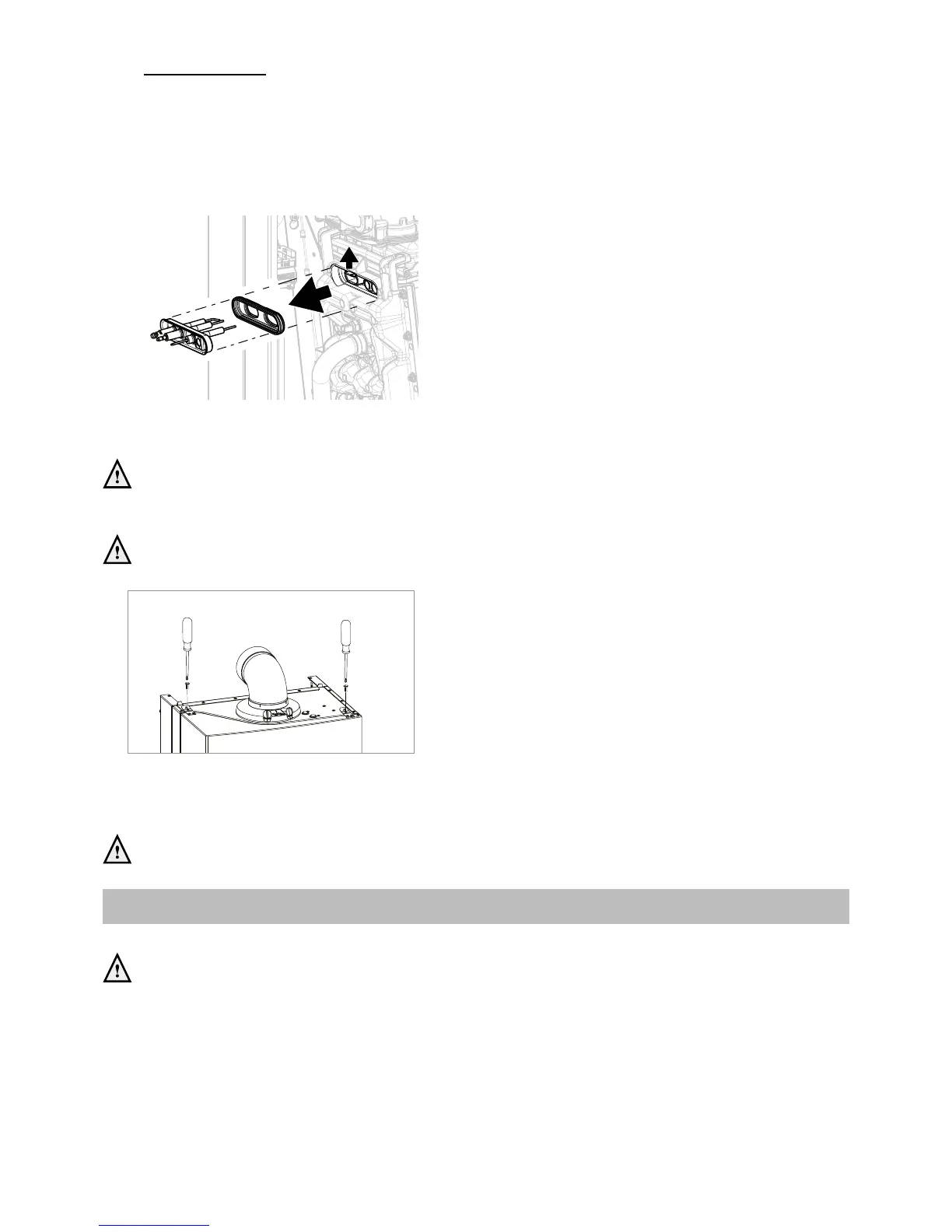

Ignition electrode
Replacing the ignition electrode is necessary when the pins are worn.
If the inspection hole is damaged, the entire ignition electrode has to be replaced.
It is replaced as follows:
- Take away the plug connections on the ignition electrode;
- Push the clip on top of the electrode upwards and take away the electrode;
- Remove and replace the gasket;
Reassembly takes place in reverse order.
Always replace the gaskets of the removed parts during maintenance.
Put the boiler back into operation and carry out a ue gas analysis (see page 34).
Always put back the cover after (maintenance) work and secure it with screws A and B.
Remind to connect this earth cable when placing back the boiler front panel and take care the wire
does not get stuck between front panel and boiler.
Please contact your installer or ATAG Heating Technology Ltd. for further details. Contact details can be
found on the back page of this manual.
After servicing, complete the relevant Service Interval Record section of the Benchmark Checklist
located on the inside back page of the document.
16.1 Component replacement
In the event that parts require replacement, use only genuine parts supplied by ATAG Heating
Technology Ltd.
