2920 1351 01
6
Instruction book

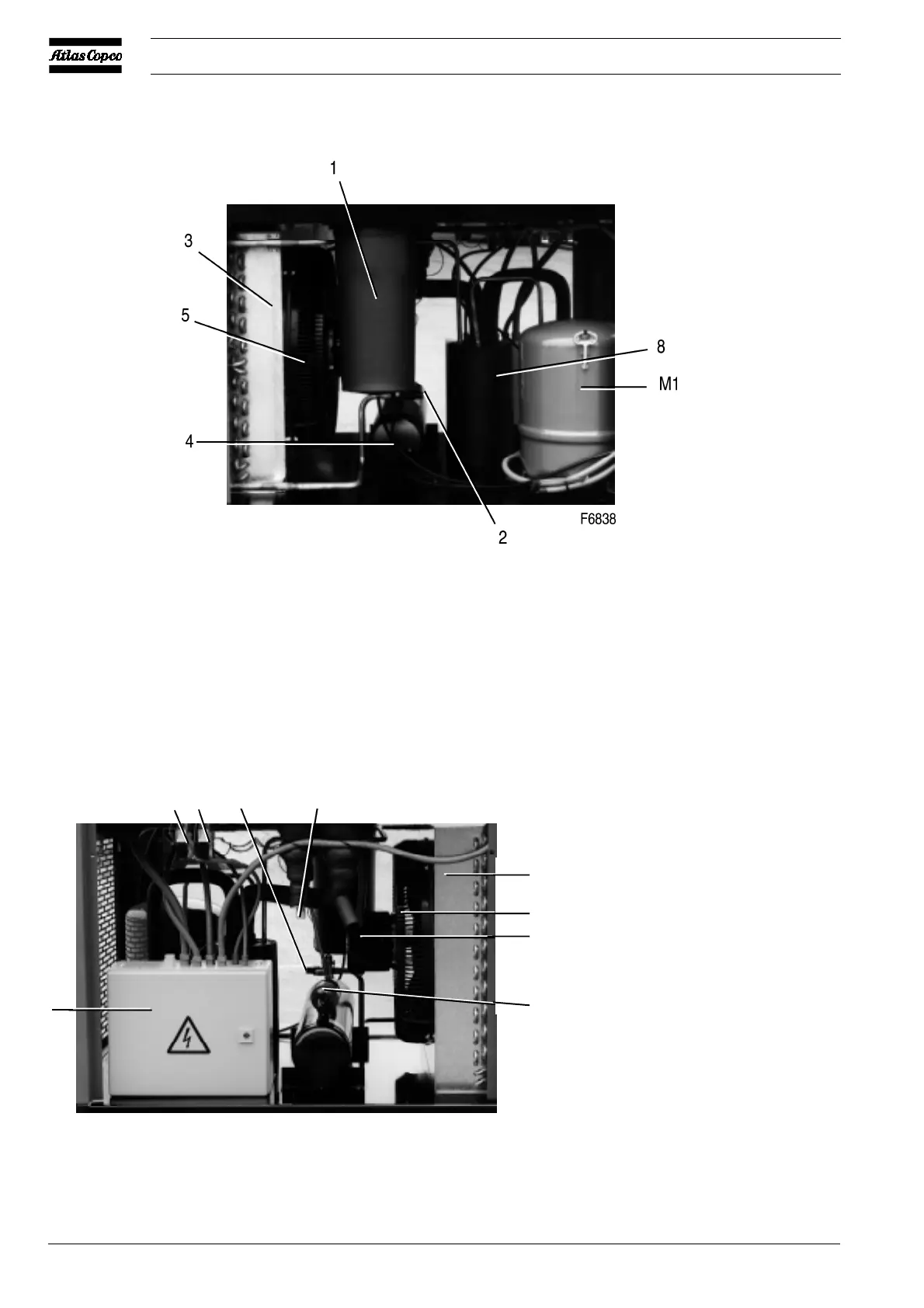

Fig. 4a
Fig. 4b
M1.
Refrigerant compressor/motor
M2.
Condenser cooling fan motor
S2.
High pressure shut-down switch
S3.
Fan control switch
1.
Condensate trap with automatic
discharg
e
2.
Refrigerant shut-off valve
3.
Condenser
4.
Liquid refrigerant receiver
5.
Fan
6.
Refrigerant dryer/filter
7.
Refrigerant expansion valve
8.
Liquid separator
9.
Electric cubicle
Figs. 4. Side views of FD450
3
5
M2
6
9
S3 S
2 2
7
F6839
5
7
Table of Contents
Contents
2
Leading Particulars
3
General Description
3
Air Circuit
3
Front View of FD450
3
Air and Refrigerant Flow Diagram, Air-Cooled Dryers
4
Refrigeration Circuit
5
Electric Cubicle of FD260
5
S. 4. Side Views of FD450
6
Side Views of FD380 W
7
Installation
8
Automatic Regulation System
8
Electrical System
8
Dimension Drawings
8
Dimension Drawing of FD260 up to FD380 50/60 Hz and FD450 50 Hz
9
Dimension Drawing of FD260 W up to FD380 W 50/60 Hz and FD450 W 50 Hz
10
Dimension Drawing of FD700 50/60 Hz
11
Dimension Drawing of FD700 W 50/60 Hz
12
Installation Proposal
13
Installation Instructions
13
Pictographs
14
Operating Instructions
15
Initial Start
15
Starting
15
Altitude Operation
15
Maintenance
16
During Operation
16
Stopping
16
General
16
Settings
17
Automatic Expansion Valve
17
Switches
17
Detail of Pressure Dewpoint Indicator
17
Problem Solving
18
Pressure Dewpoint Temperature too High
18
Condenser Pressure too High or too Low
18
Compressor Stops or Does Not Start
18
Principal Data
19
Limitations/Nominal Conditions
19
Specific Data
19
Conversion List of si Units into British/Us Units
20
4
