7. Depressurise the system by unscrewing filler plug (FC) just one turn to permit any pressure in the system
to escape. Remove the plug.
Add oil until the sight-glass (Gl) is 3/4 full.
Take care that no dirt enters the system. Tighten the filler plug.
8. Reset the service warning after carrying out all service actions in the relevant Service Plan:
For compressors with Elektronikon® Graphic controller, see section Service menu.
7.4 Oil separator change
Warning
The operator must apply all relevant Safety precautions.
Procedure

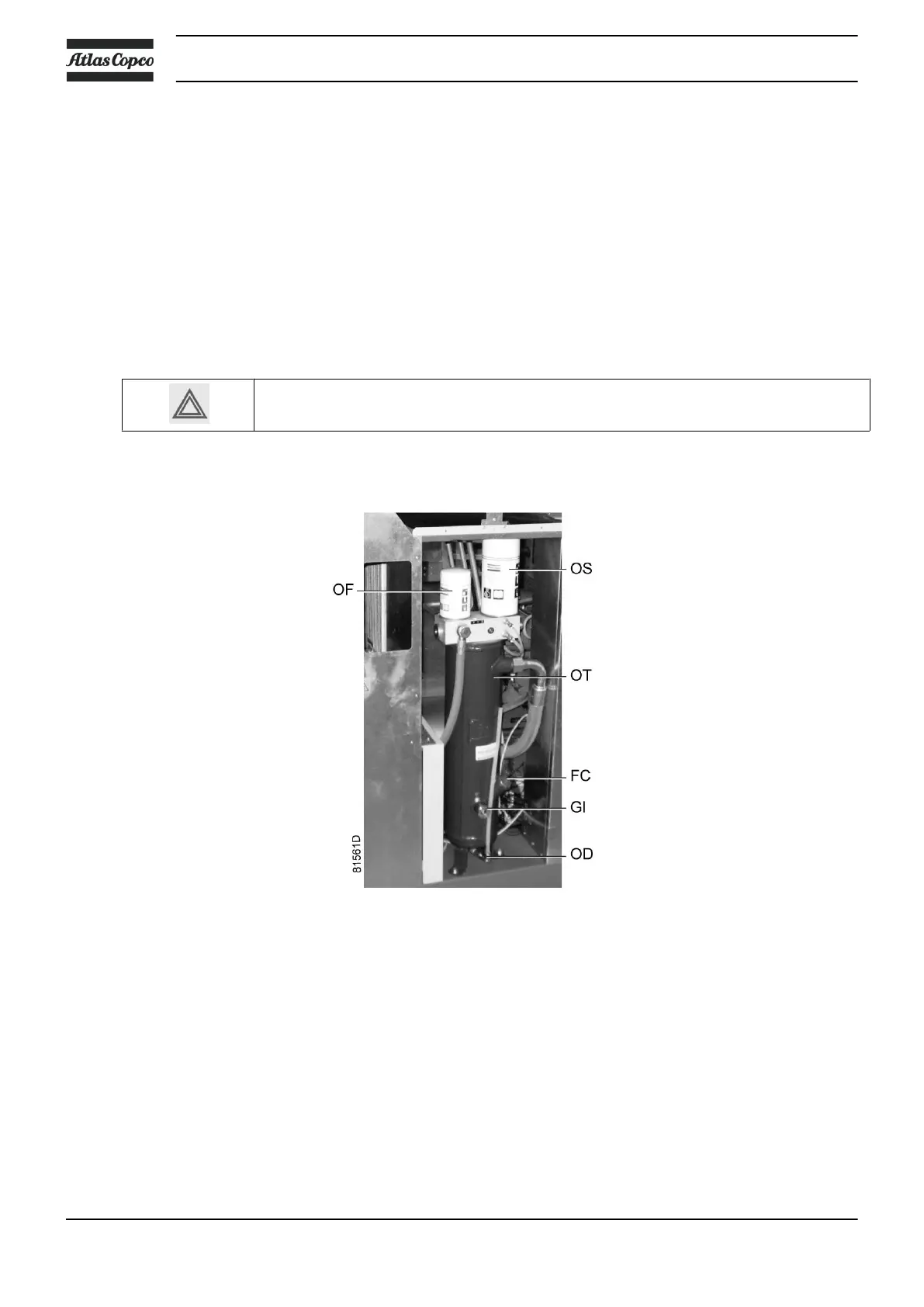

Oil system components
1. Run the compressor until warm. Stop the compressor, close the air outlet valve and switch off the voltage.
Wait a few minutes and depressurise by unscrewing oil filler plug (FC) just one turn to permit any pressure
in the system to escape.
2. Wait 5 minutes and remove the oil separator (OS). Clean the seat on the manifold. Oil the gasket of the
new separator and screw it into place. Tighten firmly by hand.
3. Reset the service timer:
For compressors equipped with an Elektronikon® Graphic regulator, see section Service menu.
Instruction book
80 2920 7104 10
