Atlas Copco ga55+ User Manual

54
Instruction book
9096 3313 00
The first row shows that service was done at 6223 Running hours and Real Time hours 7976. The following
rows show the running hours and real time for the next service Levels (A, B, C) which need to be done at
7000 Running hours
History

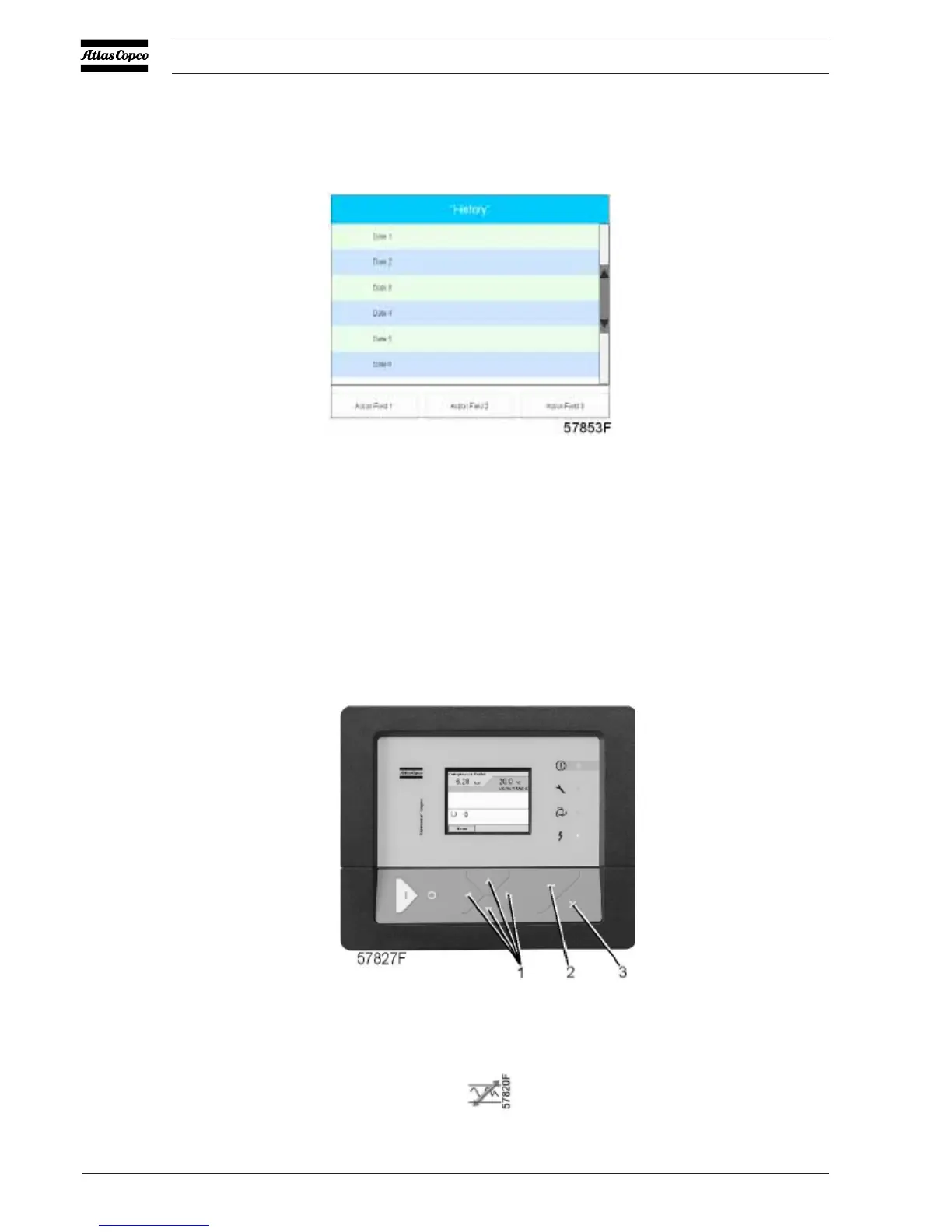

The history screen shows a list of all service actions done in the past, these actions are sorted by date. The
date at the top is the latest service action. To see the details of a completed service action (e.g. service
level, running hours or real time), use the scroll keys (1) to select the desired action and press the enter key
(2).
3.11 Setpoint menu
Control panel
Menu icon, setpoint

Atlas Copco ga55+ Specifications

General

Model	GA55+
Category	Air Compressor
Working Pressure	7.5 bar
Motor Power	55 kW
Noise Level	69 dB(A)
Cooling System	Air-cooled
Drive Type	Direct Drive
Free Air Delivery	10.2 m³/min
