Atlas Copco GA90 User Manual
4
of 1
of 1 rating
150 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
18
Instruction book
9096 3313 00

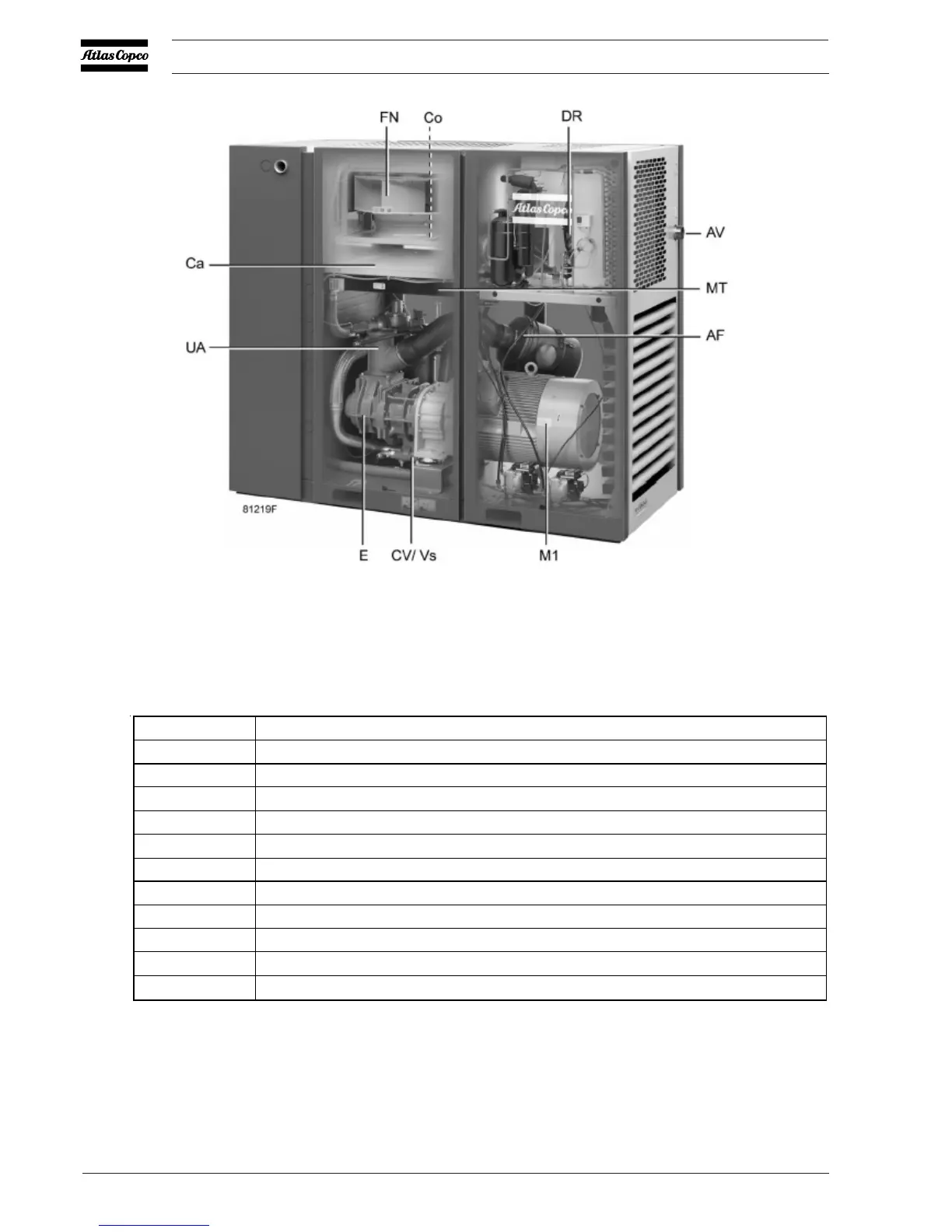

Rear view
, GA 55+ up to GA
90 W
orkplace Full-Feature
Re
f
e
renc
e
Na
me
E
Co
mpr
esso
r ele
men
t
CV/
Vs
Che
ck va
l
v
e/oil
stop
va
lve
FN
Coo
lin
g
fan
M1
Comp
r
essor
dr
i
v
e
mo
tor
MT
Con
de
n
sa
te
tra
p
AV
C
om
pre
ssed
air
ou
tlet
v
alv
e
DR
Dry
e
r
AF
Air
f
i
l
t
e
r
Co
O
i
l
c
o
ol
er
Ca
A
ir cooler
UA
Unl
oad
er
17
19
Table of Contents
Default Chapter
5
Table of Contents
5
Safety Precautions
10
Safety Icons
10
Safety Precautions During Installation
10
Safety Precautions During Operation
12
Safety Precautions During Maintenance or Repair
13
General Description
15
Introduction
15
Air Flow
19
Oil System
21
Cooling System
22
Condensate System
24
Regulating System
25
Electrical System
26
Electrical Diagrams
28
Air Dryer
32
Elektronikon Graphic Controller
34
Elektronikon Graphic Regulator
34
Control Panel
36
Icon Used
37
Main Screen Menu
40
Calling up Menus
42
Inputs Menu
43
Outputs Menu
45
Counters
47
Settings Menu
49
Service Menu
50
Setpoint Menu
54
Event History Menu
57
Modifying General Settings
58
Info Menu
60
Week Timer Menu
61
Test Menu
65
User Password Menu
66
Programmable Settings
67
Osci (Optional)
71
Introduction
71
Putting into Operation (Commissioning)
77
Elektronikon Display and Warnngs
78
Pictographs
78
Data Displayed During Normal Opetation
79
Warning
80
Maintenance
82
Problem Solving
85
Energy Recovery (Optional)
88
Services Kits
85
Energy Recovery Unit
88
Energy Recovery Systems
89
Operation
90
Maintenance
93
Energy Recovery Data
94
Installation
96
Dimension Drawings
96
Installation Proposal
98
Electrical Connections
100
Cooling Water Requirements
102
Pictographs
105
Operating Instructions
107
Before Initial Start-Up
107
Initial Start-Up
108
Before Starting
111
Starting
112
During Operation
114
Checking the Display
116
Stopping
117
Taking out of Operation
117
Maintenance
119
Preventive Maintenance Schedule
119
Drive Motor
121
Oil and Oil Filter Change
122
Oil Specifications
122
Disposal of Used Material
124
Storage after Installation
124
Service Kits
125
Adjustments and Servicing Procedures
126
Air Filter
126
Coolers
127
Safety Valves
128
Problem Solving
129
Roblem Solving
129
Readings on Display
132
Technical Data
132
Electric Cable Size and Main Fuses
133
Settings for Motor Overload Relay
134
Settings of Fan Motor Circuit Breaker
134
Dryer Switches
135
Compressor Data
136
Technical Data Elektronikon Controller
141
Instruction for Use of Air Receiver
143
Instructions for Use
143
Guideline for Instruction
144
Guidelines for Inspection
144
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Atlas Copco GA90 and is the answer not in the manual?
Ask a question
Atlas Copco GA90 Specifications
General
Brand
Atlas Copco
Model
GA90
Category
Air Compressor
Language
English
