GX 7 and GX 11 Full-Feature

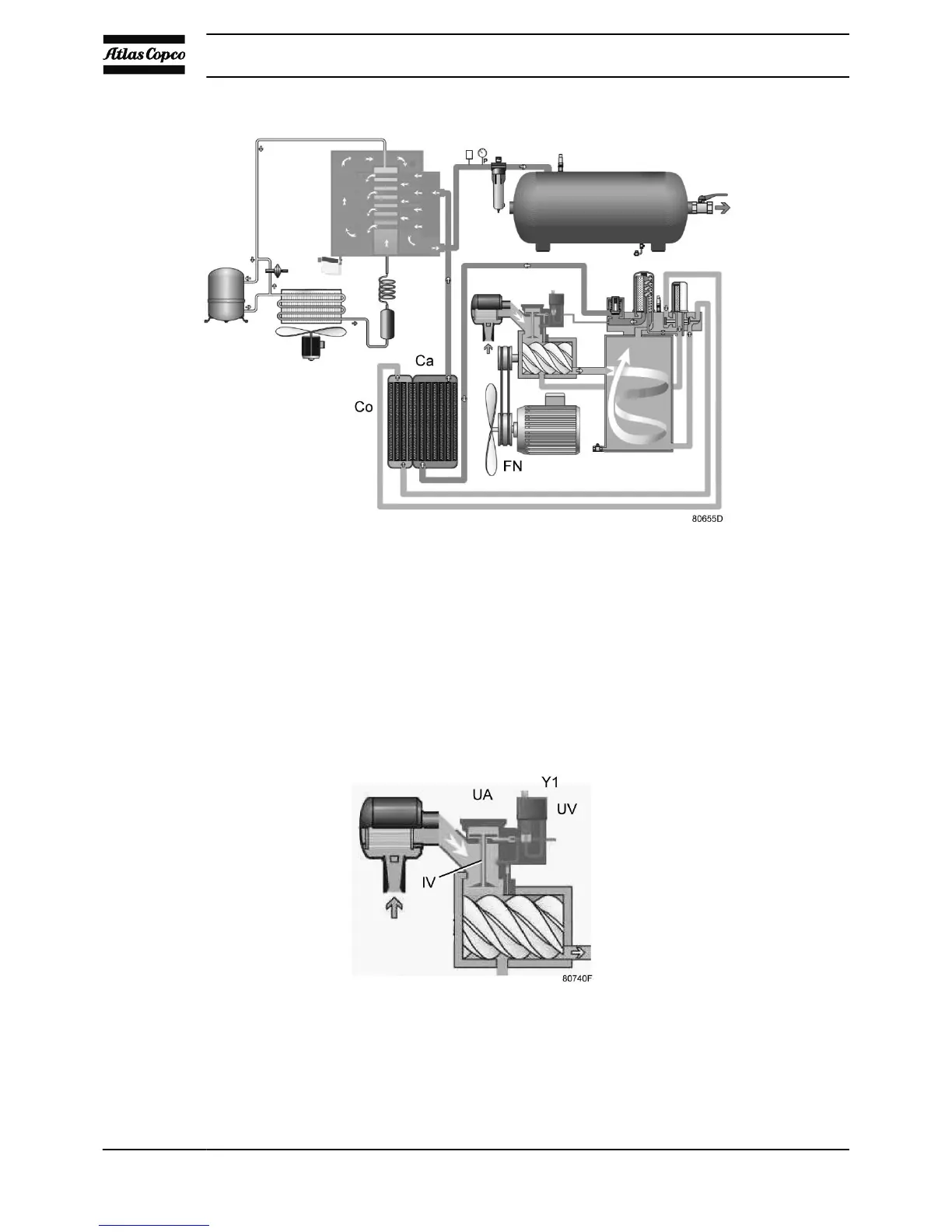

The cooling system of the Full Feature version comprises oil cooler (Co) and air cooler (Ca). A fan (FN),
mounted directly onto the motor shaft, generates the cooling air in order to cool the oil and the compressed
air.
2.5 Regulating system
Main components
Detail view of unloader assembly (UA)
The main components of the regulating system are:
• Pressure switch, which opens and closes at preset pressure limits. See Protection of compressor
• Unloader (UA), including inlet valve (IV) and unloading valve (UV).
Instruction book
16 2920 7054 00
