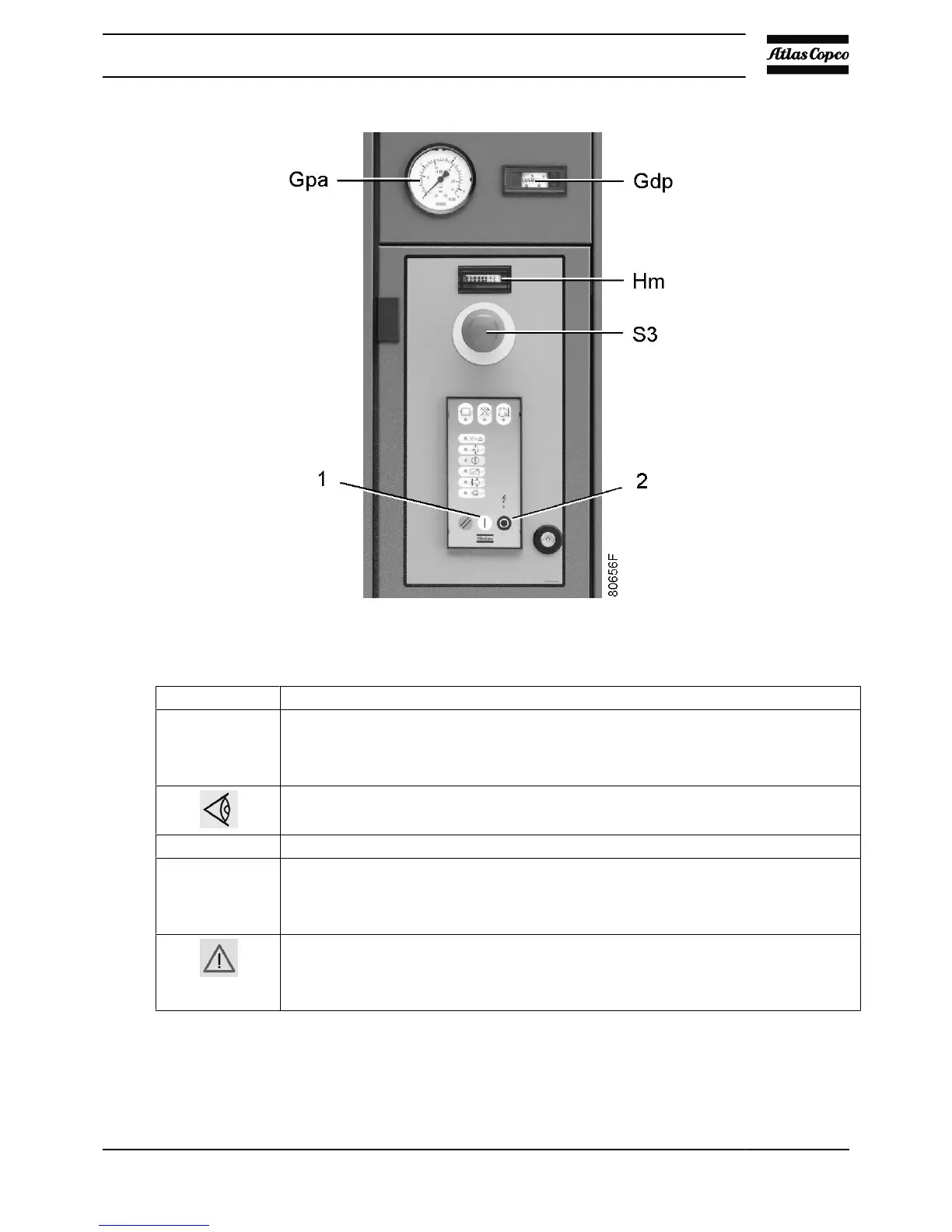

Control panel GX 7 up to GX 11
Step Action
1 Push the stop button (2) on the control panel. The compressor will switch to unloaded
operation and stops after 120 seconds. The automatic operaion LED goes out.
To stop the compressor immediately in the event of an emergency, press button (S3). See
the Control panel section. After remedying the fault, unlock the button by pulling it out.
Only use emergency stop button in the event of an emergency. Avoid using the button for
normal stopping of the compressor.
2 Close air outlet valve (2) and switch off the voltage to the compressor.
3 Open condensate drain valve (Dm) for a few seconds to drain any condensate and then
close the valve.
Open condensate drain valve (4) of the air receiver for a few seconds to drain any
condensate and then close the valve.
The air dryer and the air receiver remain under pressure.
The PDX filter (if installed) remains under pressure.
If maintenance or repair work is necessary, consult the Problem solving section for all
relevant safety precautions.
