- 33 -
GENERATOR FUNCTION (XA(S) 137 KdG - XA(S) 300 KD7G)

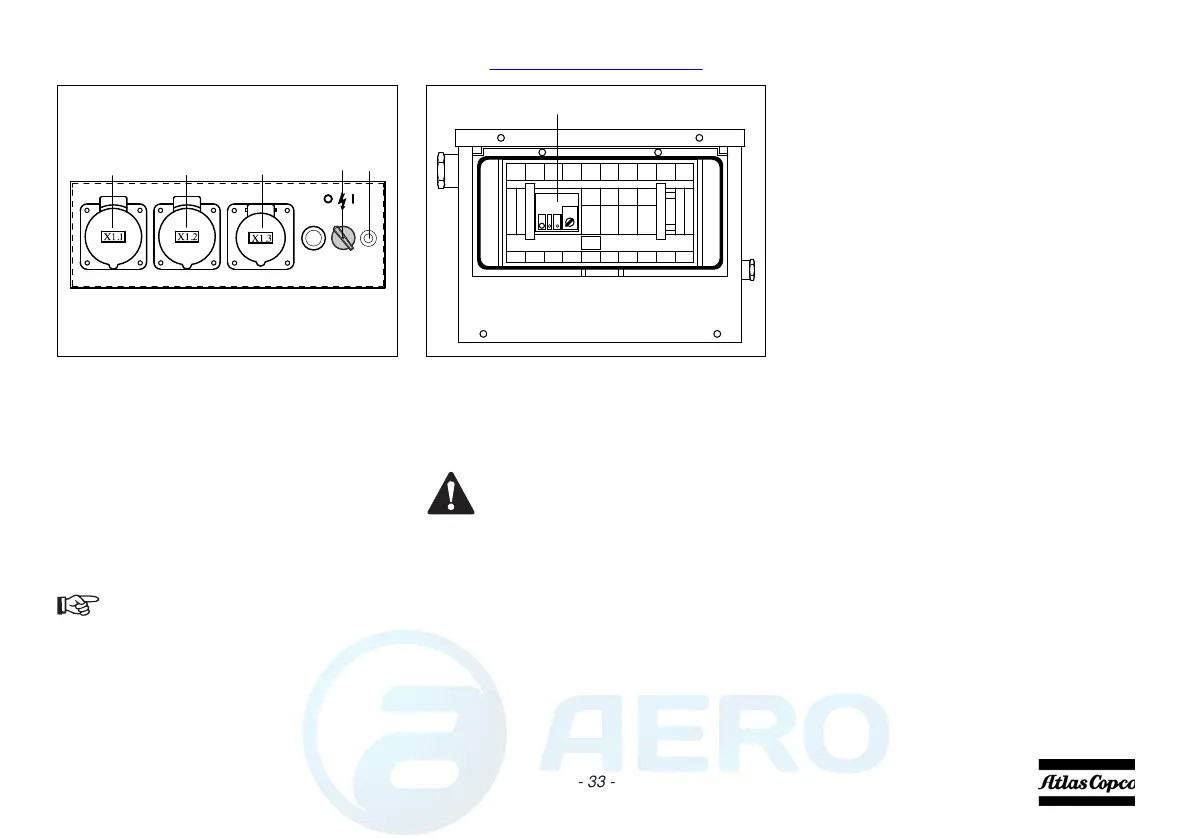

Control panel (generator)
Start the unit in accordance with the normal
procedure. Let the motor warm up until it reaches
operational temperature.
Generator control box
Fault situations and protective devices:
Open the left machine door and check that the
circuit breakers are up. If the circuit breakers are
down, put them up (switch them on). Circuit
breakers in the up position can be indicative of a
serious electrical fault.
When the yellow LED on the insulation
monitoring relay (K6) is activated, it means that a
serious insulation fault has occurred. Reset by first
switching off the motor, then restart it.
The insulation monitoring relay K8 must be
adjusted to 10 k. This adjustment may not be
changed.
X1.1 Socket 400 V/16 A
X1.2 Socket 400 V/16 A
X1.3 Socket 230 V/16 A
S1 ON/OFF switch
PE Earthing clamp
Only use the generator after the
compressor has been switched over from
NO-LOAD to LOAD.
(X1.3)
(S1)
(X1.2)(X1.1)
(PE)
Q1 Main circuit breaker 4-pole
K8 Insulation monitoring relay
Before connecting an electrical device,
always check the data listed on the rating
plate.
