3.19 Modifying protection settings

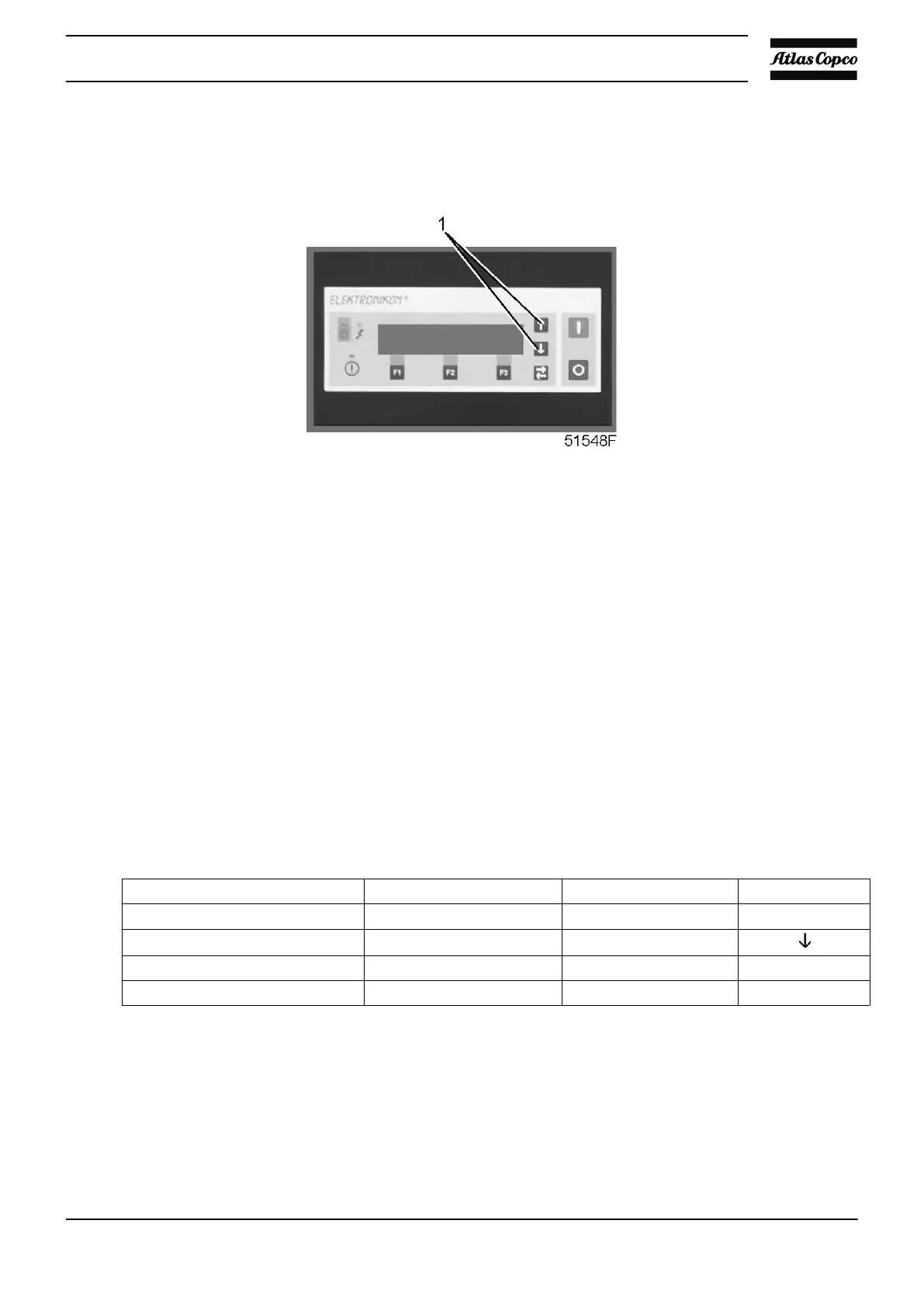

Control panel
Function
To modify a number of protection settings. Consult the menu flow in section Control programs.
Procedure
Starting from the Main screen (see Main screen menu):
• Press key “Menu” (F1).
• Press key (1) until “Modify settings” is shown.
• Activate the menu by pressing key “Select” (F2).
• The first item (“Regulation”) is shown. Press keys (1) to scroll to “Protection”.
• Press key “Select” (F2) and use keys (1) to scroll to the setting to be modified.
• For each setting, the modifying procedure is similar to the example below.
Modifying the shut-down setting for the oil pressure
• Consult the section above for selecting the option “Protection”.
• Press key “Select” (F2). The first item is shown (“Oil pressure”).
• Press key “Select” (F2). A display similar to that shown below will appear:
Oil 2.5 bar
Programmable settings
Shutdown Minimum 1.2 bar
Menu Modify
F1 F2 F3
The example indicates:
• The name of the sensor (“Oil”) and the actual measured value (“2.5 bar”)
• The type of parameter (“Shutdown”), the level type (“Minimum level”) and the actual programmed
value (“1.2 bar”)
• After pressing the key “Modify” the value of the parameter starts blinking and the functions of the
keys (F1, F2 and F3) change into “Program”, “Limits“ and “Cancel” respectively.
• Modify the value by means of scroll keys (1).
Instruction book
2920 1815 04 61
