OWNER'S MANUAL
AA35 MIXER AMPLIFIER
16
WIRING THE AA35
Speaker Outputs - Use 2 conductor unshielded wire of the appropriate gauge. If you are unsure about
this, contact Atlas Sound Tech Support at 1-800-876-3333. Make sure you know how many speakers you
need and what tap value you intend to use.
Mic/Line Input - Use 2 conductor w/ shield for low level signals of 20-22 gauge is best. Maintain the
proper polarity, + to +, – to – , and shield to ground.
Unbalanced Inputs and Outputs - Pre-made RCA cables can be purchased from vendors to simplify
interconnection to external devices.
Zone 2 Out - Use 2 conductor, 20-22 gauge, shielded is best. Terminate the shield at the input to the
device if possible.
SECURITY COVER OPTION
In order to prevent unauthorized operation of the AA35, optional security covers are available which take
the place of the front panel knobs. After the AA35 has been installed and is operating as desired, grasp
the front panel knobs and pull straight out from the front panel. Replace the knobs with security covers,
Atlas part number AAVCC-5, available in quantities of 5.
Power
On
Off
Signal PowerPeak
Treble
n
Bass
Input 3Input 2Input 1
n
77)+C_n[h7cfb_\_[h

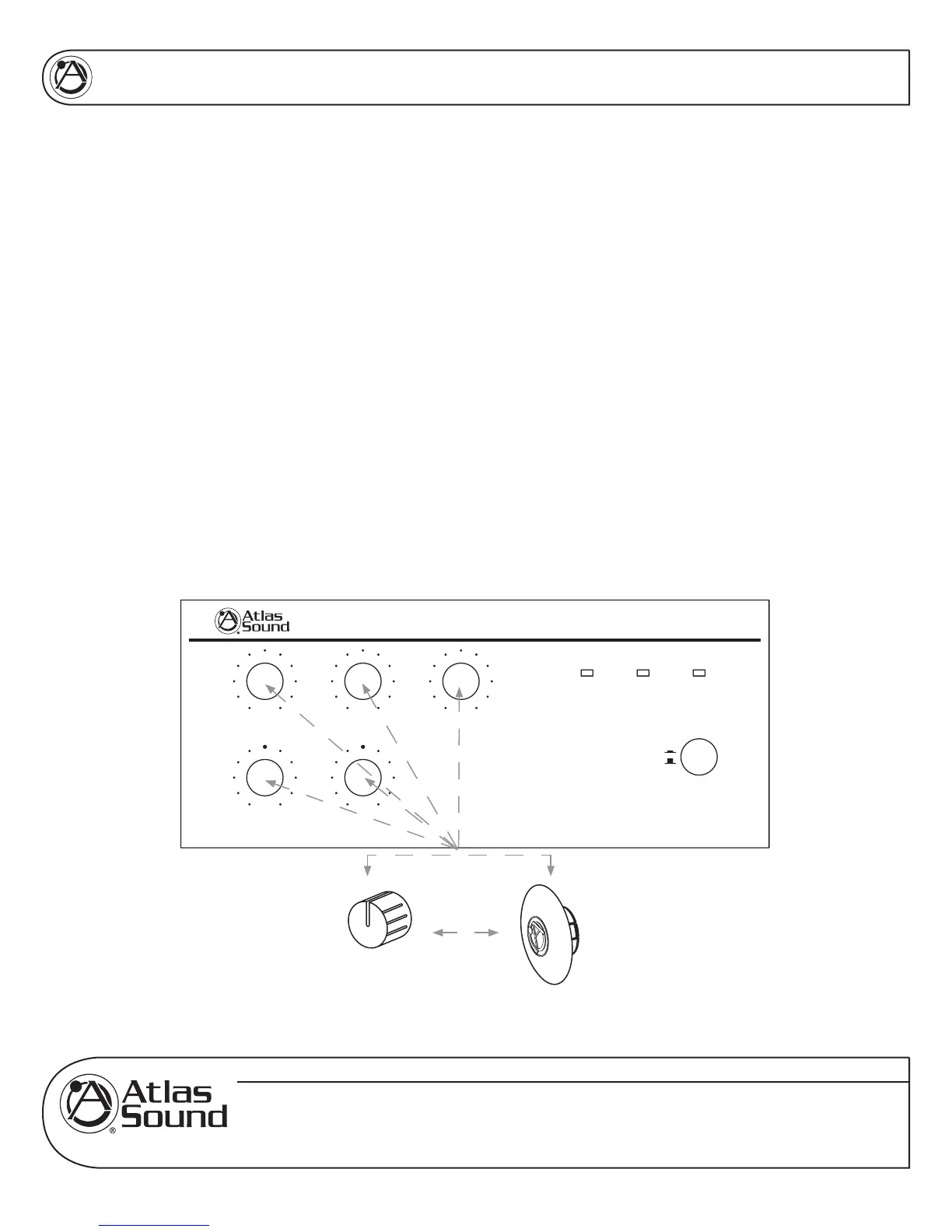

Front Panel
Knob
or
Security Cover
To Next Page
