OWNER'S MANUAL
AA35 MIXER AMPLIFIER
7
9. Treble Control
Normally set at the 12:00 position, rotating clockwise will increase (boost) treble frequencies by 10dB
at 10kHz. Rotating counter-clockwise from the 12:00 position will decrease (cut) treble frequencies by
10dB at 10kHz.

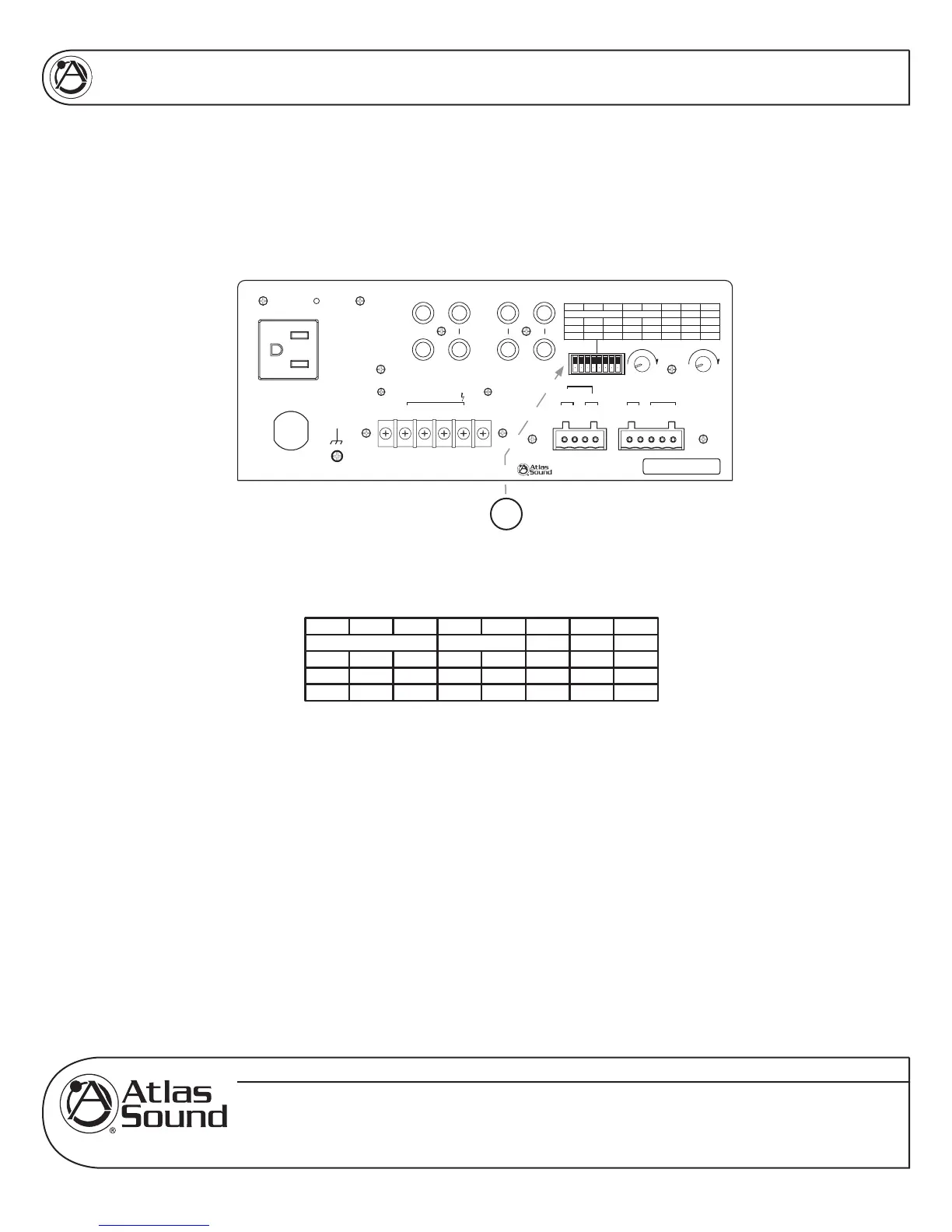

REAR PANEL DESCRIPTION
10. Multi Function Dipswitch
Understanding the functionality of the dipswitches is key to maximizing the versatility of the AA35.
When a switch is in the up position, the function is "OFF"; when a switch is in the down position, the
function is "ON".
SWITCH 1- Zone 2 Assign - When "ON", will route signals from Input 3 to the Zone 2 Output
terminals.
SWITCH 2- Zone 2 Assign - When "ON", will route signals from Input 2 to the Zone 2 Output
terminals.
SWITCH 3- Zone 2 Assign - When "ON", will route signals from Input 1 to the Zone 2 Output
terminals.
SWITCH 4 - Mute Receive - When "ON", Input 3 signals will be muted if a signal is present on
Input 1 (Refer to Mute Sensitivity Control, number 16 on page 9), or if a contact closure is
present on the remote mute terminals (Refer to Remote Mute Connector, number 11(B) on page
8).
SWITCH 5 - Mute Receive - When "ON", Input 2 signals will be muted upon a signal present on
Input 1(Refer to Mute Sensitivity Control, number 16 on page 9), or if a contact closure is present
on the remote mute terminals (Refer to Remote Mute Connector, number 11(B) on page 8).
On
Off
Low cut
8
On
Off
43
21
Phantom
Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3 Input 2 Input 1
Input1
7
Input 2
Input 3
Line/Tel
Mic
Off
On
Unswitched Outlet
120V AC 60Hz
Max 500W
Outlet Breaker
125V AC 4A
Push Reset
120V AC 60Hz 100W
Amp In
Line Out A
Line Out B
Pre Out
Input 3 Input 2
L
R
Zone2
100
Level
Mute
Sens
100
Remote
Mute
G-+
Input 1
¡
8
1W
¡
600
Zone 2 Out
-+-+
Speaker Output 35W
COM
25V
¡
8
70V
L
R
£Èä£Ê>VÊV>ÞÊÛ`°]ÊÃ]Ê/8ÊÇx££Ê
nää®ÊnÇÈÎÎÎÎÊÌ>Ã-Õ`°V
77)+
7jbWiIekdZ77I[h_[iC_n[h7cfb_\_[h
CLASS 2 WIRING
10
On
Off
Low cut
8
On
Off
43
21
Phantom
Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3 Input 2 Input 1
Input1
7
Input 2
Input 3
Line/Tel
Mic
Off
On

Atlas AA35 Specifications

General

Package weight	4630 g
Amplifier class	-
Frequency range	50 - 20000 Hz
Output impedance	8 Ω
Audio output channels	3.0 channels
Peak power per channel	35 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
Purpose	Performance/stage
Product color	Black
Volume control	Rotary
Bass adjustment	Yes
Channels quantity	3 channels
Connectivity technology	Wired
AC input voltage	110 - 120 V
Power source type	AC
Speakers connectivity type	Phoenix / RCA

Weight and Dimensions

Depth	276 mm
Width	210 mm
Height	93 mm
