Product Application Samples of TS/ TS-SW series

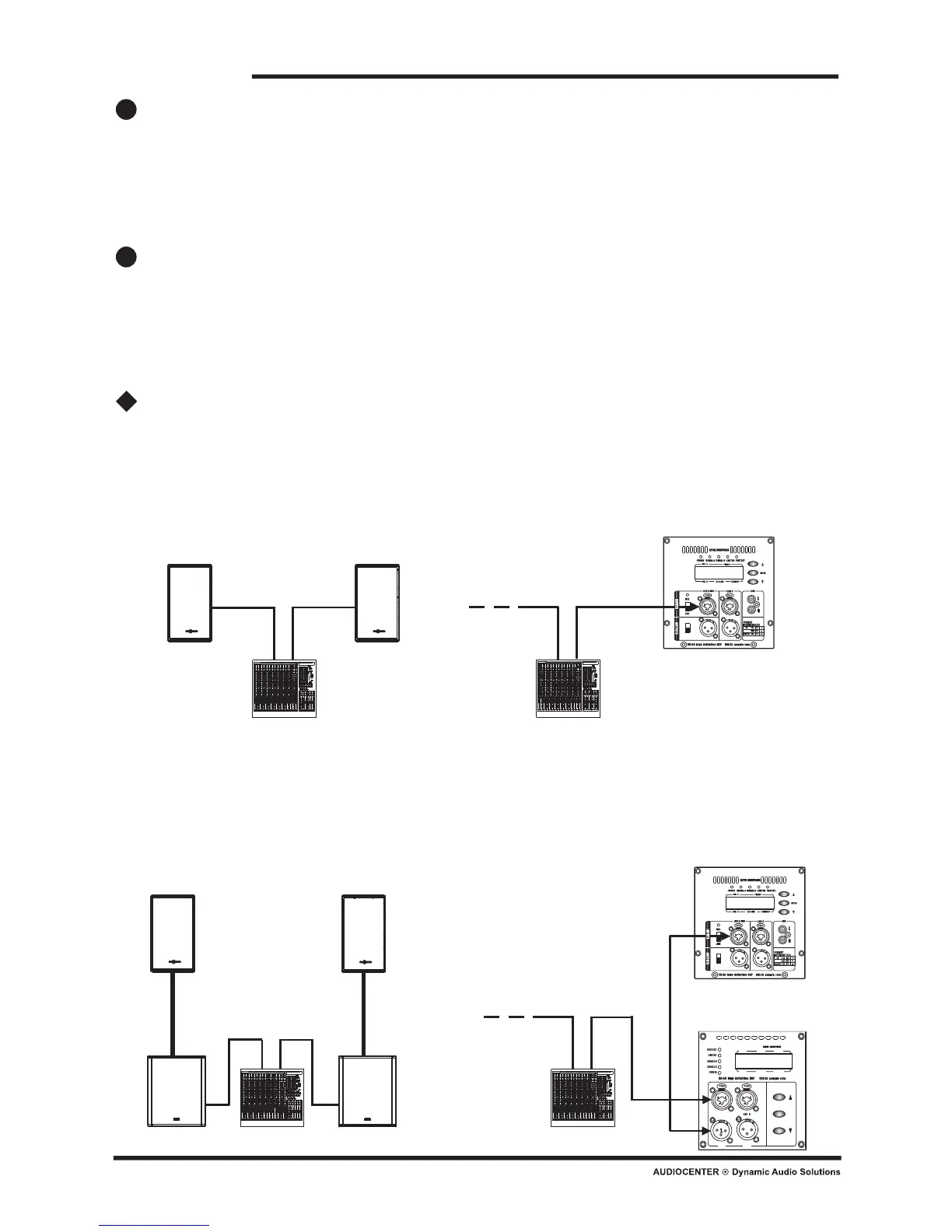

Below is the basic system application with 2pcs of TS series full range speakers. This
system is ideal for small size touring performance restaurant and rehearsal etc.. 。
Basic system with subwoofer:
A/B LINK
When selecting from menu navigation key there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then select the linkage
status by navigation key If YES, input gain of Channel A and B can be adjusted at the
same time. If NO, input gain of Channel A and B can be adjusted individually Finally you
can exit by pressing Enter key again..
Standby
When selecting from menu navigation key there is an underline below the content
Choose it by pressing the Enter key and the content will flash. Then select the standby
time by navigation key For example, 5' means standby after minutes Off means no
standby Finally you can exit by pressing Enter key again..
Basic system application
Below is the basic system with 2pcs of TS series full range speakers and 2pcs of
subwoofers with coupling bars. This system is ideal for small size touring performance
church and small stadium,etc..
5
6
TS/TS-SW
1.
2.
