5.6 Connecting Serial Interface
The device provides an RS-232 serial interface port for accessing the device's command line interface
(CLI) for serial communication.
The RS-232 serial port is not intended for permanent connection.
Cable specifications:
◼ Port Type: RJ-45
◼ Cable: RJ-45 to DB-9 female cable adapter

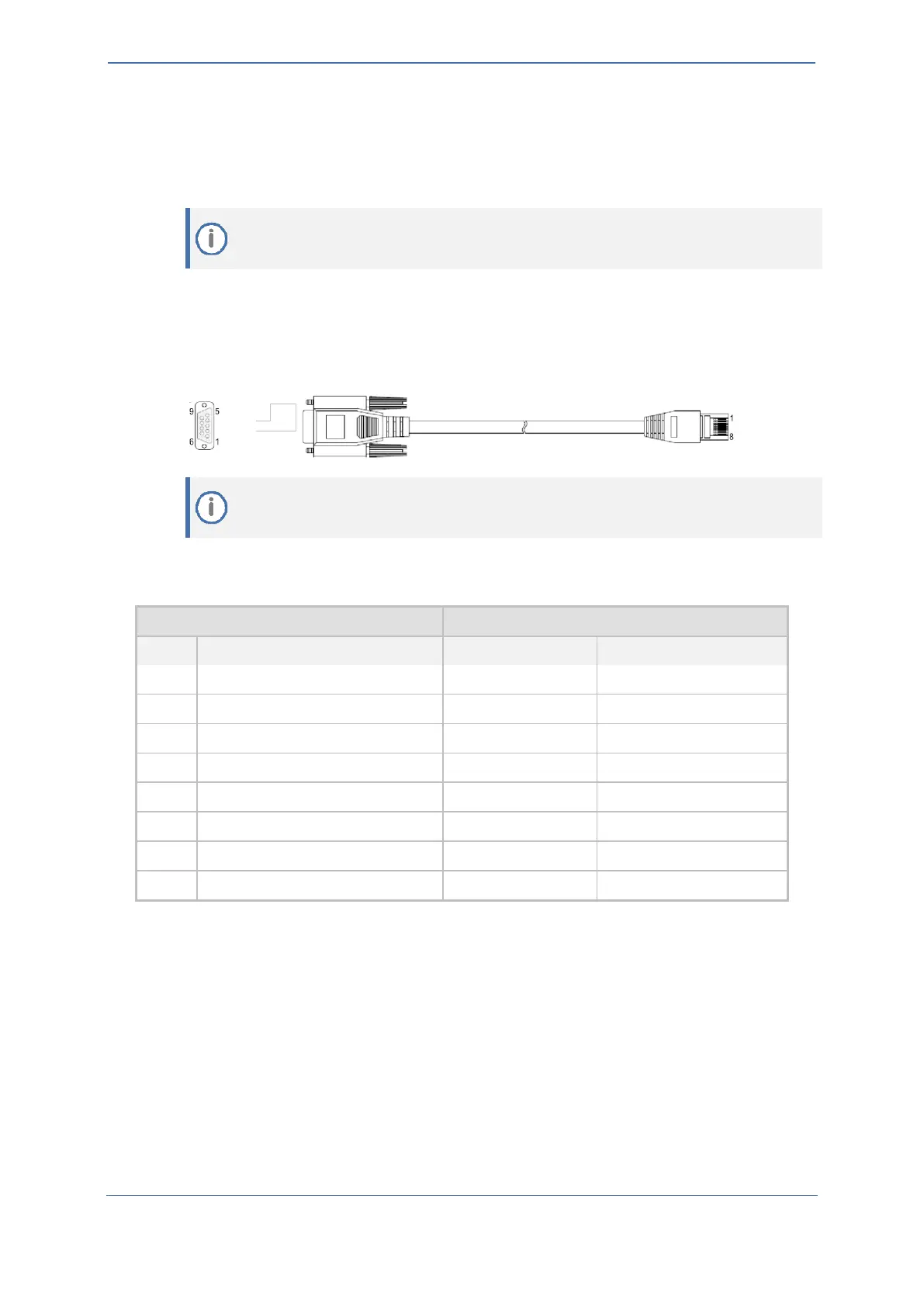

Figure 23: RJ-45 to DB-9 Female Cable Adapter
This cable is a separate orderable item from AudioCodes.
◼ Connector Pinouts:
Table 12: RJ-45 to DB-9 Serial Cable Connector Pinouts
RJ-45
DB-9 Female
Pin
Signal
Pin
Signal
1
Internally used
8
Not used
2
Ground (GND)
6
Ground (GND)
3
Transmit Data (TXD)
2
Receive Data (RXD)
4
Internally used
5
Not used
5
Internally used
5
Not used
6
Receive Data (RXD)
3
Transmit Data (TXD)
7
Ground (GND)
4
Ground (GND)
8
Internally used
7
Not used
