To cable the combined MP-11x FXS/FXO Lifeline:
1. Connect a fax machine, modem, or phone to each of the FXS ports.
2. Connect an analog PSTN line to each of the FXO ports.

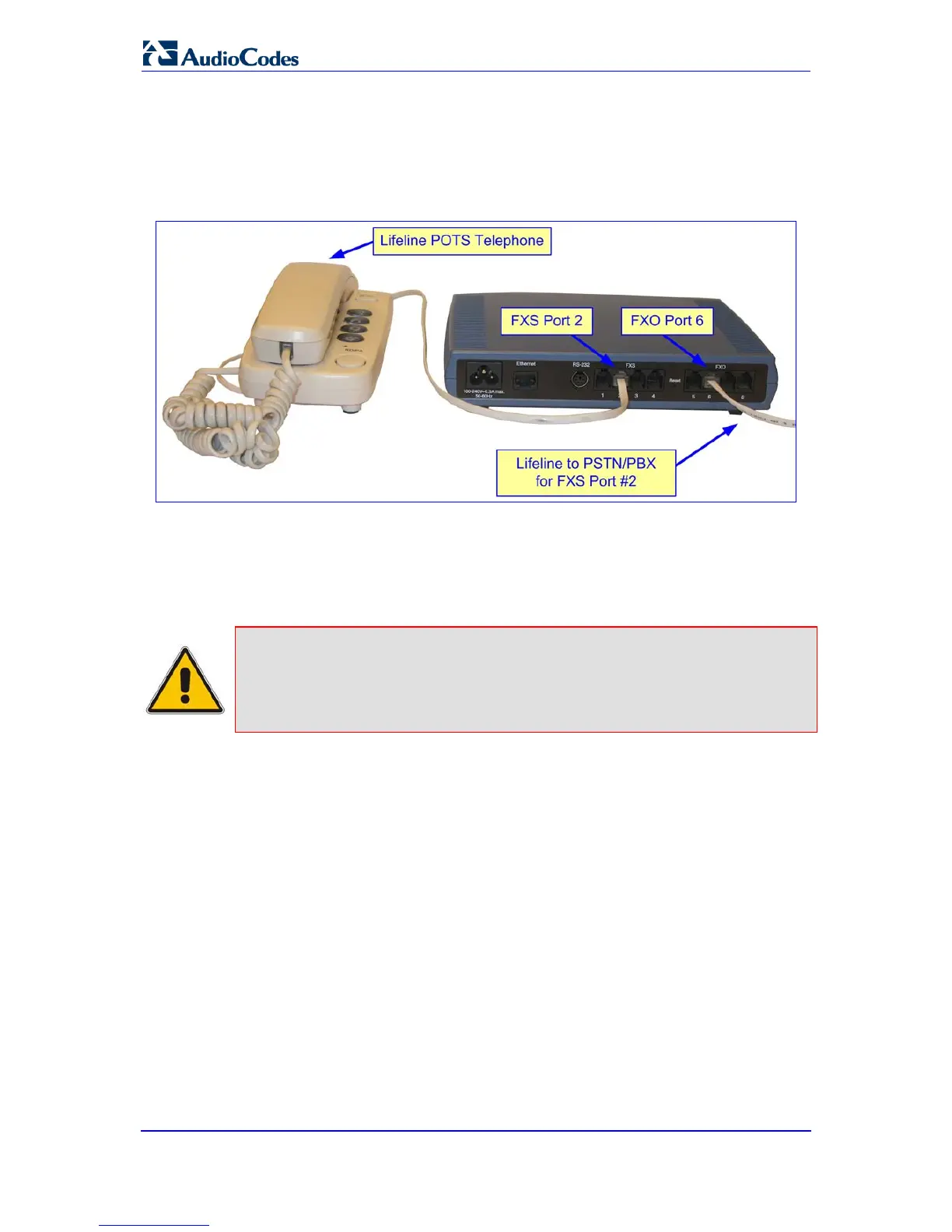

Figure 2-10: Lifeline Cabling for FXS and FXO Devices
2.1.4.4 Connecting MP-11x RS-232 Port to a PC
Follow the procedure below to connect the MP-11x serial (RS-232) interface to a PC using
a straight-through, PS/2 to DB-9 cable adaptor.
Notes:
• This procedure is not applicable to MP-112 as this model does not
provide an RS-232 serial interface port.
• The PS/2 to DB-9 cable adaptor is not included in the MP-11x package.
