6 Monitoring the Mediant 1000
The Mediant 1000 provides several ways of monitoring the status of the gateway:
Monitoring the Mediant 1000 LEDs (refer to Section 6.1 below).
Monitoring the Mediant 1000 trunks and B-channels via the Embedded Web Server (refer to
Section
6.2 on page 29).
6.1 Monitoring the Mediant 1000 LEDs
Figure 6-1 below, shows the location of the front panel LEDs on the Mediant 1000. They are
described below in Table
6-1.

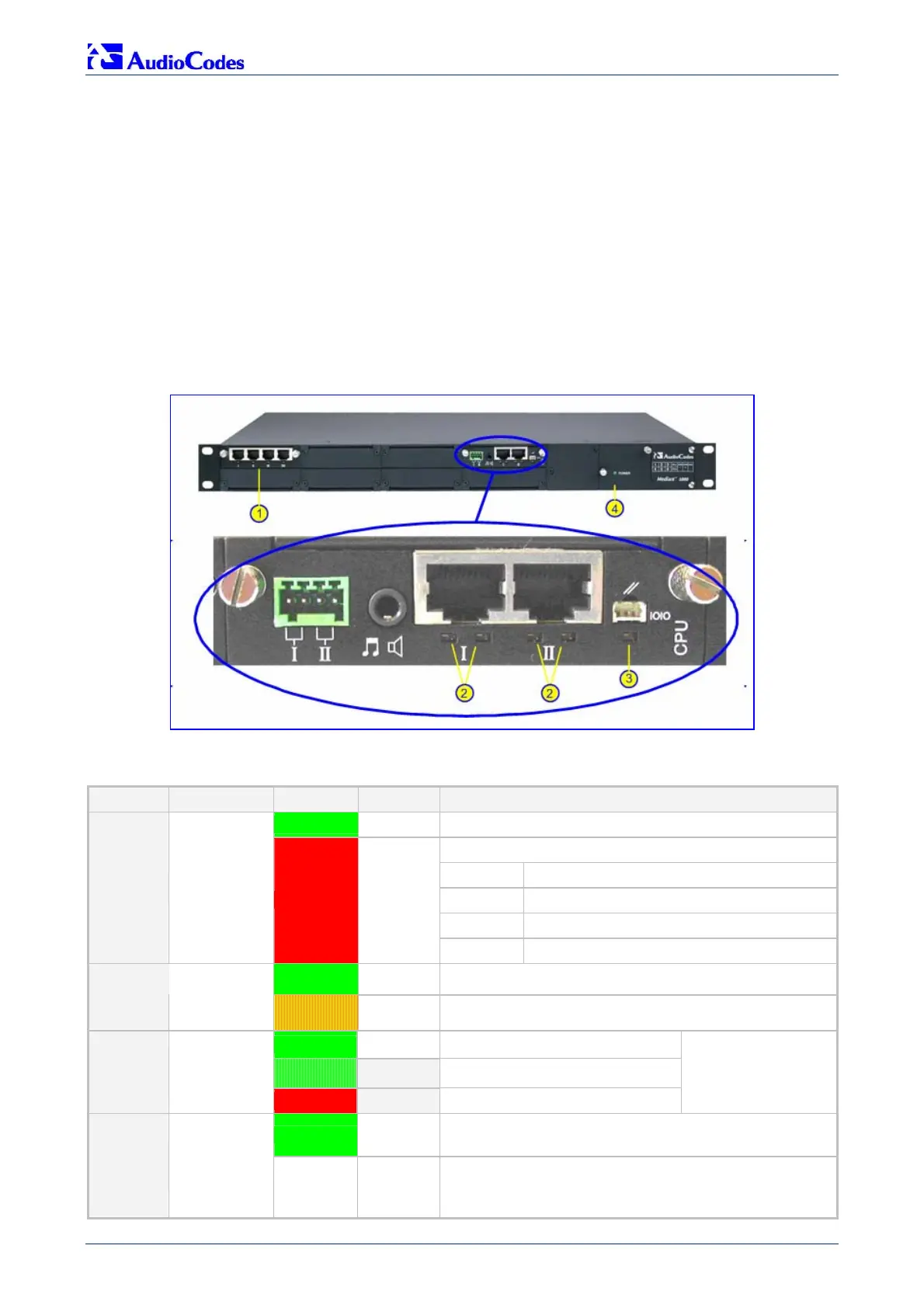

Figure 6-1: Location of Front Panel LEDs
Table 6-1: Functionality of the Front Panel LEDs
LED Location Color State LED Indication
Green
On
Trunk is synchronized (normal operation)
Loss due to any of the following 4 signals:
LOS
Loss of Signal
LOF
Loss of Frame
AIS
Alarm Indication Signal (the Blue Alarm)
RJ-48c
1
Red
On
RAI
Remote Alarm Indication (the Yellow Alarm)
Green
On
Link OK.
Ethernet
Ports I &
II
2
Yellow
Blinking
Data is being received.
Green
On
Normal working condition.
Green
Blinking
Software load / initialization.
General
Purpose
3
Red
On
Failure. A fatal error has occurred.
This general purpose
LED is used to
indicate the status of
the CPU, fans, etc.
Green
On
The LED of each AC power supply is lit green when the
power supply is operating correctly.
Power
Supply
4
- Off
Either there is a failure / disruption in the AC power
supply or the power is currently not being supplied to the
Mediant 1000 through the AC power supply entry.
