BSD-340-user-guide-eng, Doc. 1004474-2, 2020-09-18,
Autronica Fire and Security AS
Page 21
low. In addition; this measurement was made on an open loop. Open loop is more exposed to
crosstalk/noise than a closed loop.
Source may be found this way:
1. Select a loop which has crosstalk and/or has problem with loop raise
2. Disable suspected source loops
3. Do #PL_Clear to set counters to zero
4. Wait 5 minutes
5. Check #PL_stat to see any increase in frame errors (if increase is high source might be a
loop not disabled)
6. Enable a loop
7. Wait 5 minutes
8. Check #PL_stat to see any increase in frame errors
Repeat for all loops.
5.5 Serial numbers for verification (Recommended)

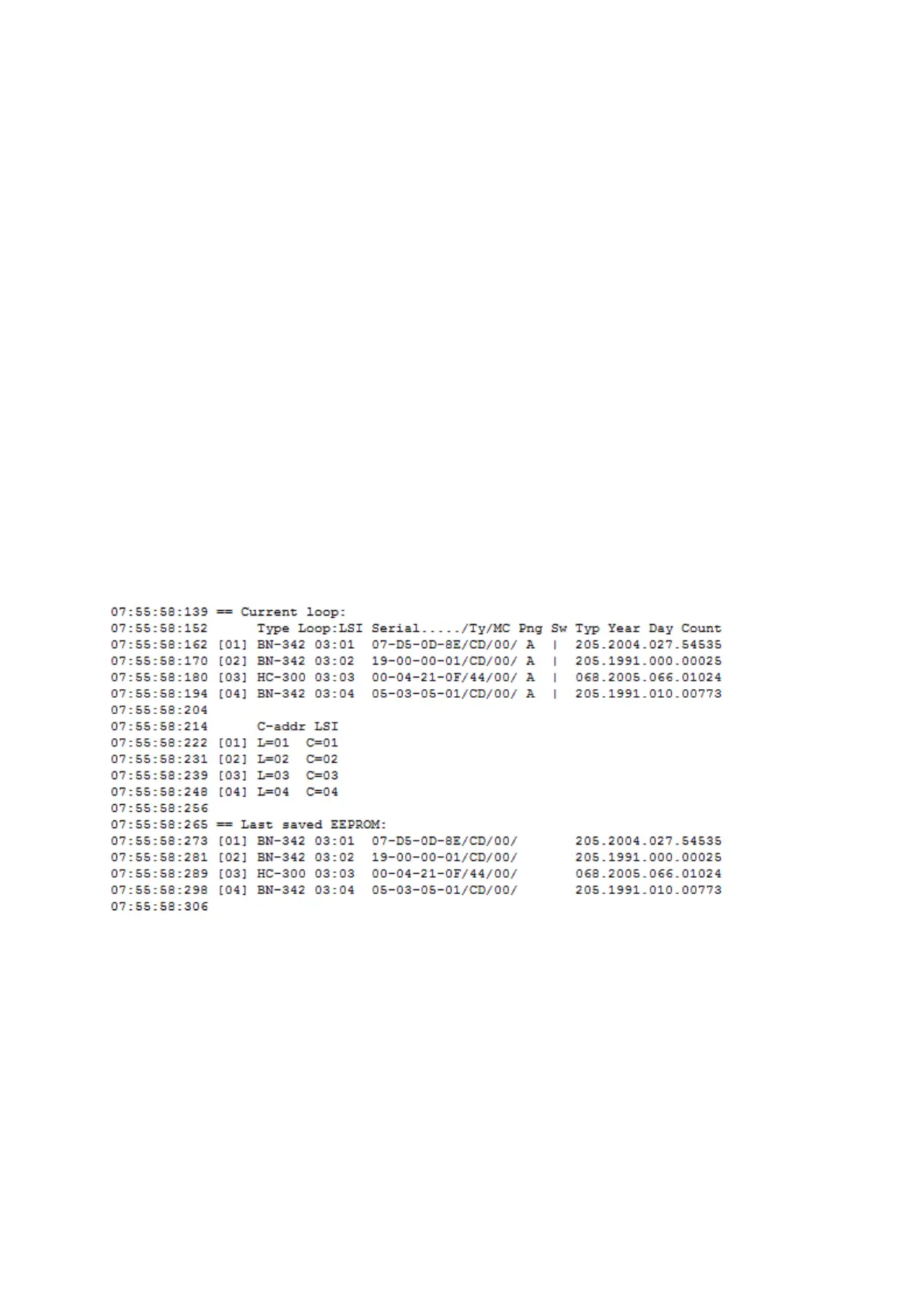

#prntop will list actual content as well as last saved topology. In case of “memory fault detected
(16) this command may be used to discover conflicts. Also, save the topology list for reference.
OK topology:
Wrong topology (Memory fault (16):
