2

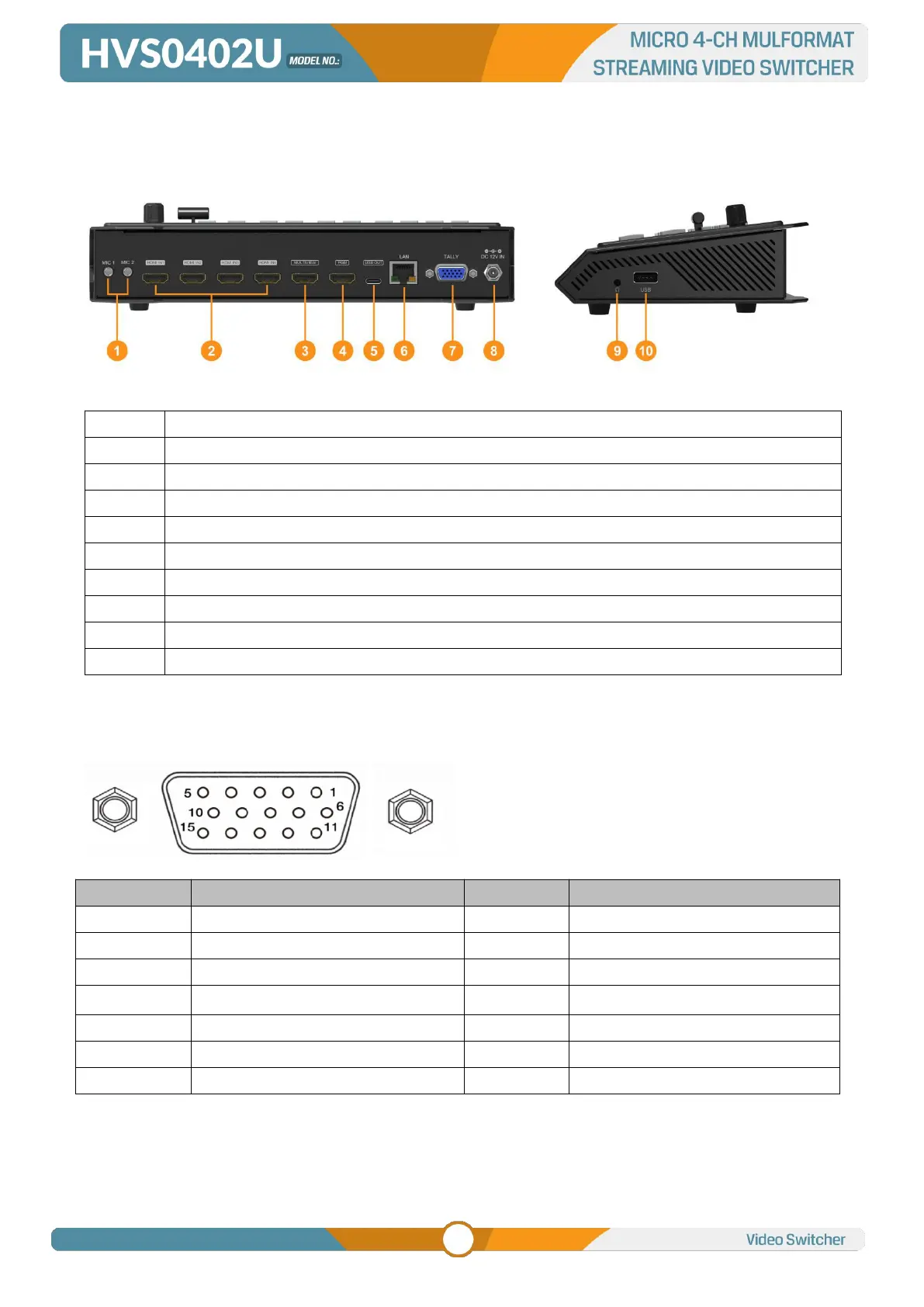

2. INTERFACES
2.1. Interface Overview
1
MIC/Line level IN × 2
2
HDMI IN × 4
3
MULTIVIEW(AUX) OUT × 1
4
PGM(AUX) OUT × 1
5
USB OUT × 1 (for live streaming on PC)
6
LAN port for PC software control
7
GPIO (for tally)
8
DC 12V IN × 1
9
Earphone OUT × 1
10
USB type-A × 1 (insert U disk to import images and LOGO; firmware upgrade)
2.2. Tally PIN Definition
PIN
Definition
PIN
11
PGM-IN1
6
12
PGM-IN2
7
13
PGM-IN3
8
14
PGM-IN4
9
15
NC
10
3
NC
4
5
GND
