Commissioning
EL34xx 129Version: 1.5
6.4 Process data
6.4.1 Sync Manager
The scope of the process data offered can be viewed on the "Process data" tab.
The following figures show the assigned input process data objects (PDOs) of the EL34xx Sync Manager
(SM3) as examples.

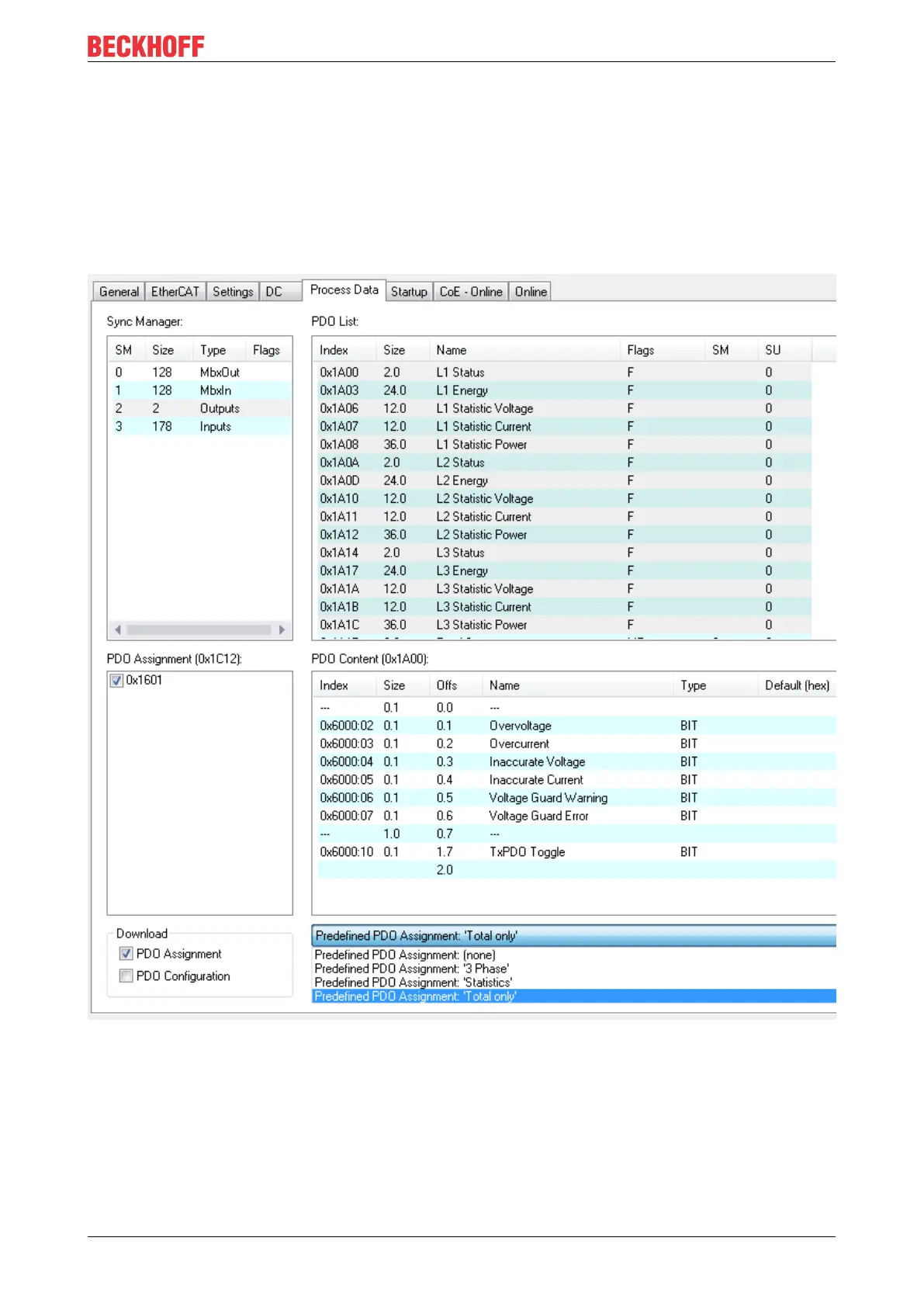

Fig.146: Process Data tab SM3, EL3423
