3.2.3 SPI Mode of TMC Driver

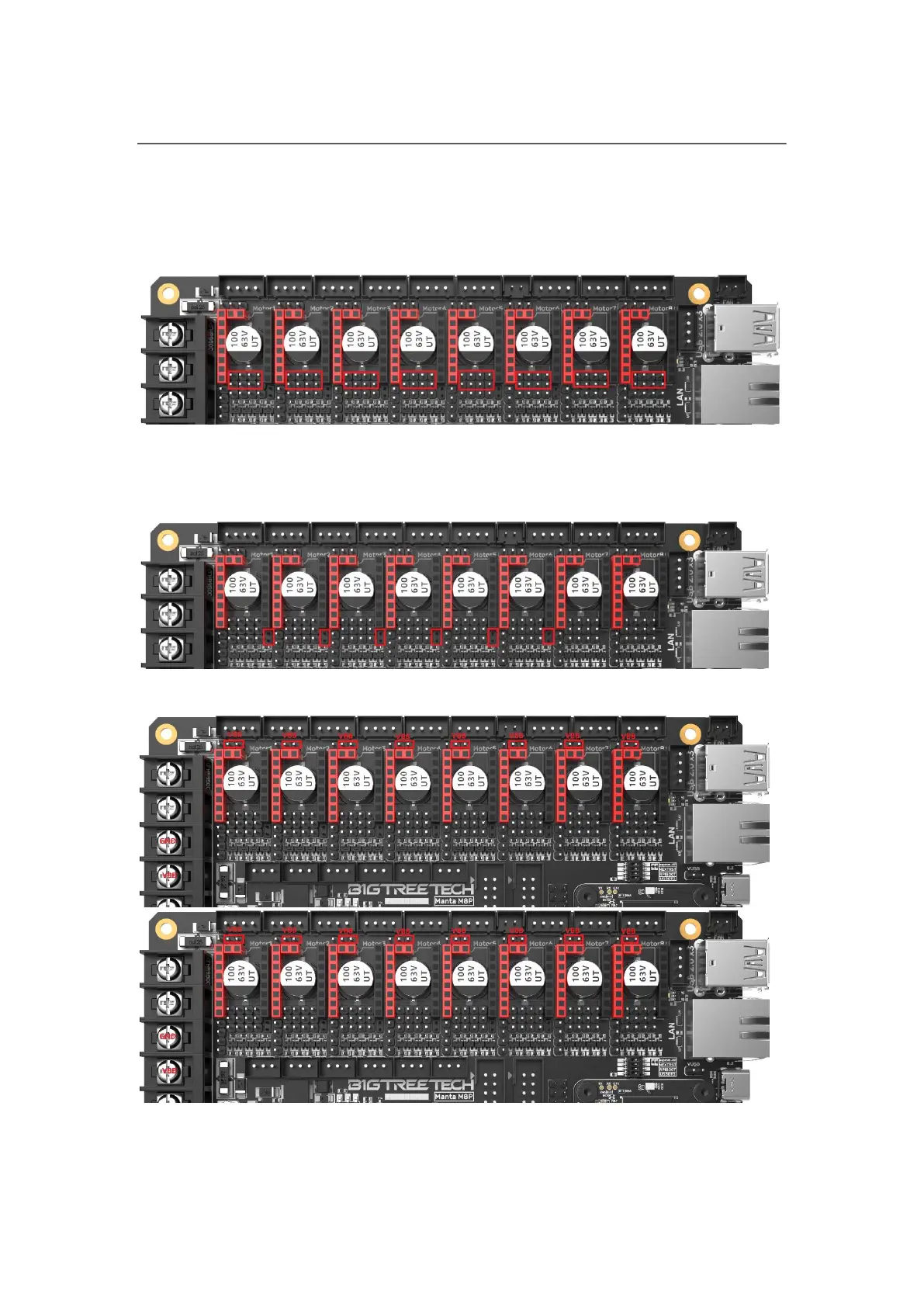

For example, TMC2130, TMC5160, TMC5161... Use 4 jumper caps for each to
connect the position of the red box in the figure, and the subdivision and driver
current is set by firmware.
3.2.4 DIAG(Sensorless Homing) of TMC Driver
As shown in the figure, plug the jumper cap when using the Sensorless Homing
function, and leave it unplugged when it is not used.
3.2.5 Selection of driving power supply for stepping motor
