4/201101 29 2 210 822© BMW AG, Munich (Z/Z) 10

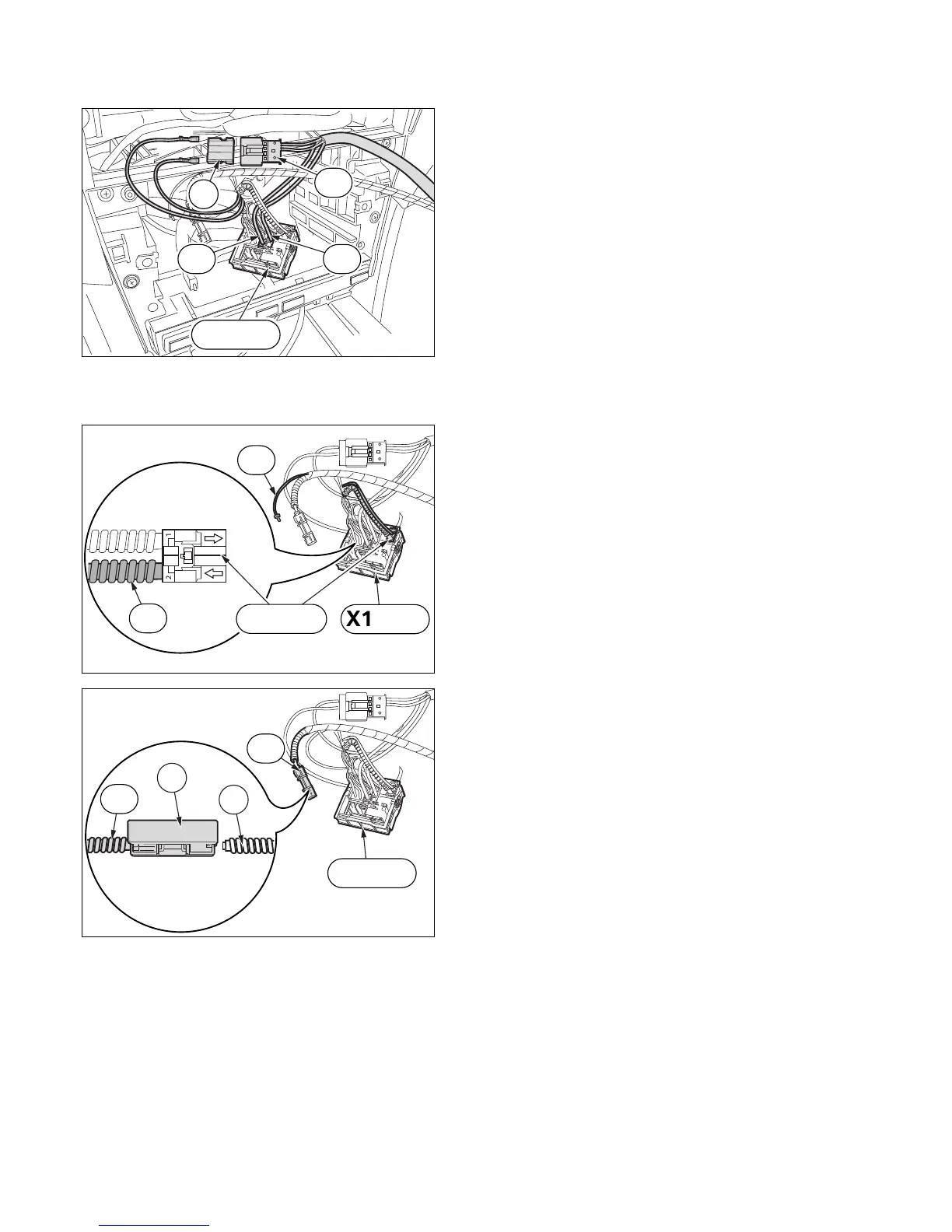

6. Wiring harness on radio receiver
Disconnect the following cables from plug X13812
(SW 16-pin) of the radio receiver and connect to socket
casing J:
- Cable, RT/GN cable, from PIN 15
to socket casing J PIN 1
- Cable, BR cable from PIN 12
to socket casing J PIN 2
Connect branches A1 and A2 to plug X13812 as
follows:
- Branch A1, RT/GN cable, to PIN 15
-BranchA2, BR cable, to PIN 12
Connect branch A3 to socket casing J.
Unclip fibre optic cable casing X13815 (SW 2-pin) from
plug X13812 (SW 16-pin) of the radio receiver.
Disconnect the outgoing fibre-optic cable from fibre-optic
cable casing X13815 PIN 2 and connect branch A4,
OR cable.
Clip fibre-optic cable casing X13815 into plug X13812.
Unlock the fibre-optic cable connector (1) on branch A5
and connect the disconnected fibre optic cable (2).
Connect plug X13812 (SW 16-pin) to the radio receiver.
