7. Installing and connecting the combox
4/201101 29 2 210 822© BMW AG, Munich (Z/Z) 12
All cars

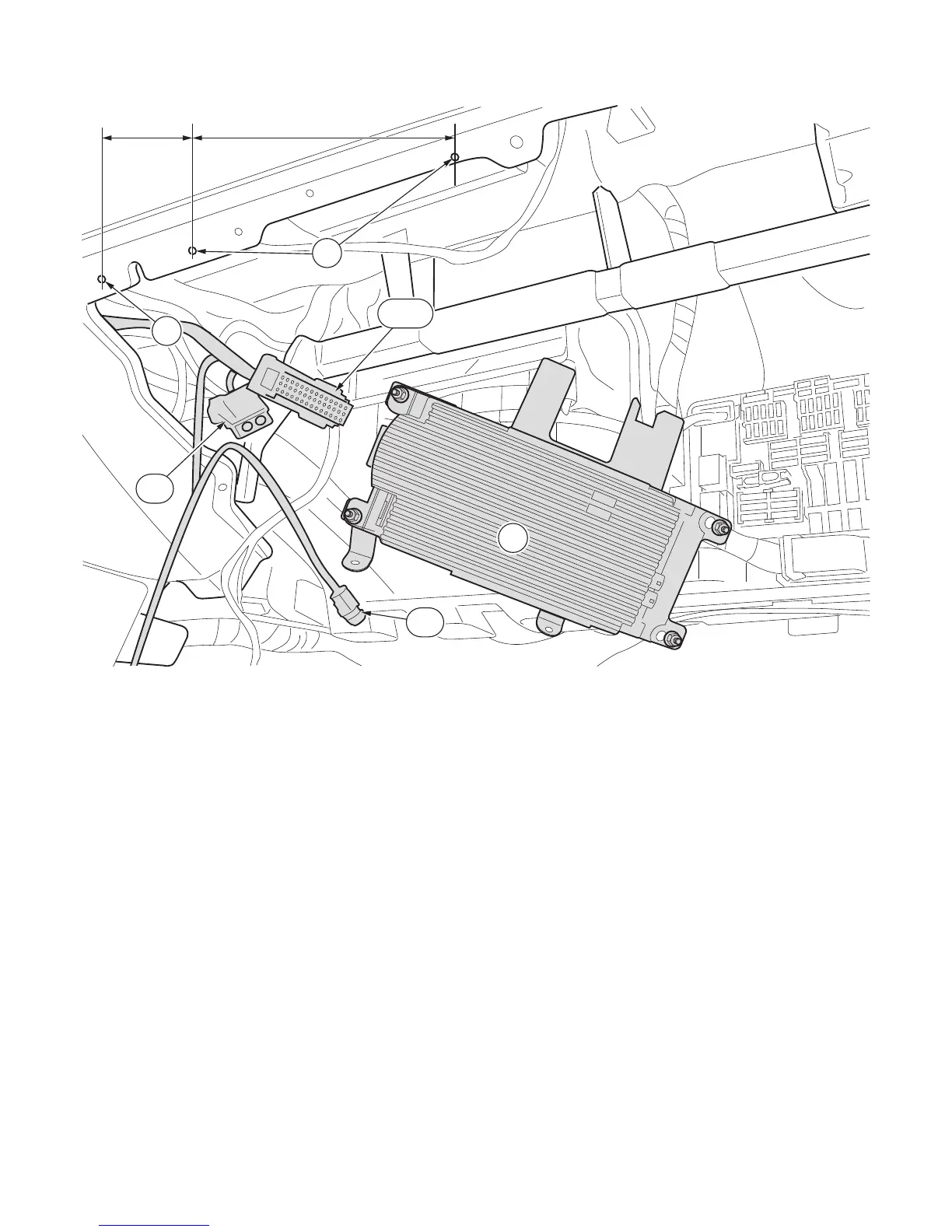

Make 2 drill holes (2) of diameter 4 mm at the points indicated in the dashboard.
The left-hand fastening point of the glove compartment (1) serves as the starting point.
Route branches A6 and A7 to the glove compartment installation site.
Route branch U7 to the glove compartment installation site (only when installing the basic Bluetooth hands-free kit
with USB/audio interface retrofit kit).
Connect the following branches to combox D:
-Branch A6 (SW 2-pin fibre optic cable casing)
-Branch S (GN 26-pin socket casing)
Branch U7 (SW 4-pin HSD socket casing, only when installing the basic Bluetooth hands-free kit with
USB/audio interface retrofit kit).
