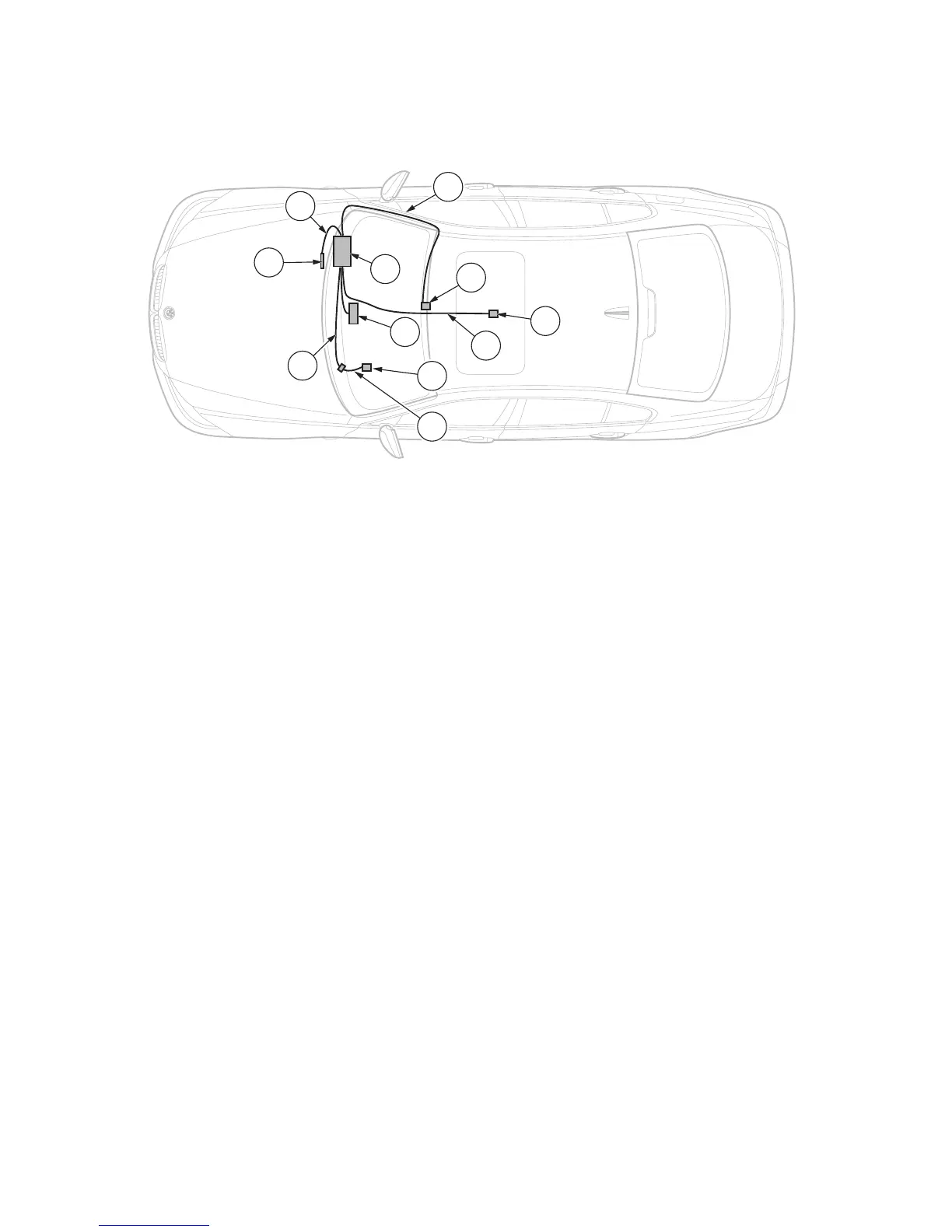

5. Installation and cabling diagram
4/201101 29 2 210 822© BMW AG, Munich (Z/Z) 9
Legend
A Wiring harness
B Bluetooth aerial
C Hands-free microphone (E90, E91, E92 cars only)
D Combox
N Bluetooth aerial connecting cable
O Hands-free microphone (E93 cars only)
P Adapter cable (E93 cars only)
U
USB wiring harness (only when installing the basic Bluetooth hands-free kit with
USB/audio interface retrofit kit)
V
USB/AUX-IN jack (only when installing the basic Bluetooth hands-free kit with
USB/audio interface retrofit kit)
1 Radio connectors X13812 and X13815
