4/201101 29 2 210 822© BMW AG, Munich (Z/Z) 7

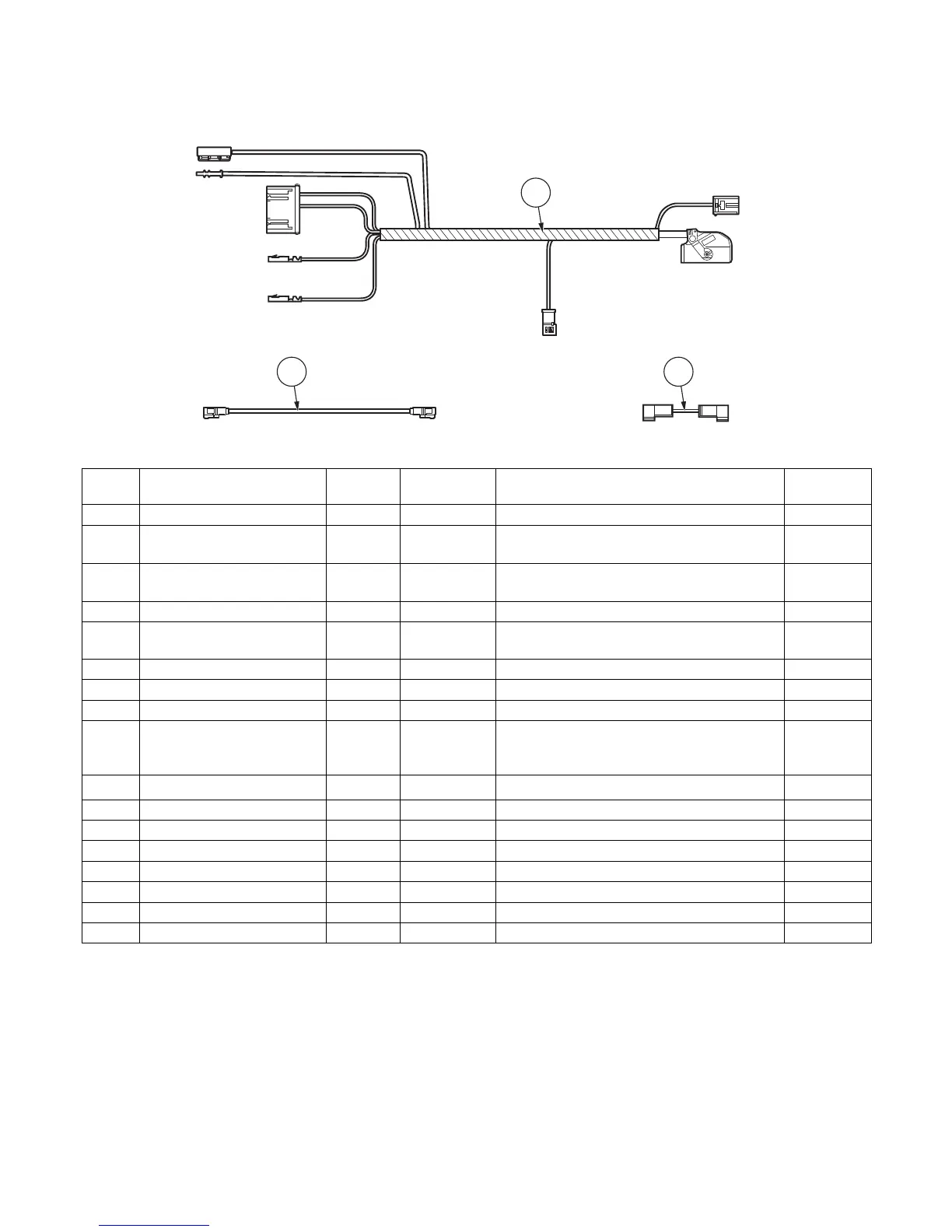

Item Designation Signal Cable colour/
Cross-section
Connection location in the car Abbreviation/
Slot
A Wiring harness --- --- --- ---
A1 Socket contact Terminal 30 RT/GN
2.5 mm
2
On radio receiver X13812
PIN 15
A2 Socket contact Terminal 31 BR
2.5 mm
2
On radio receiver X13812
PIN 12
A3 SW 4-pin pin housing --- --- On socket casing J ---
A4 Fibre-optic cable MOST OR On radio receiver X13815
PIN 2
A5 Fibre-optic cable connector MOST GN On the radio receiver's disconnected fibre optic cable ---
A6 SW 2-pin fibre-optic cable casing MOST --- On combox D X34139
A7 52-pin socket casing --- --- On combox D X34130
A8 SW 3-pin socket casing Mic
---
E90, E91, E92 cars only
On hands-free microphone C
On branch P2
X3564
N Bluetooth aerial connecting cable --- --- --- ---
N1 Fakra socket casing, GN BT aer --- On combox D X34128
N2 Fakra socket casing, GN BT aer --- On Bluetooth aerial B X14080
--- --- --- --- --- ---
P Adapter cable --- --- E93 cars only ---
P1 SW 3-pin pin housing Mic --- On hands-free microphone O ---
P2 SW 3-pin pin housing Mic --- On branch A8 X3564
