8. To install the GPS aerial (LHD cars only)
0
0
0
0
0

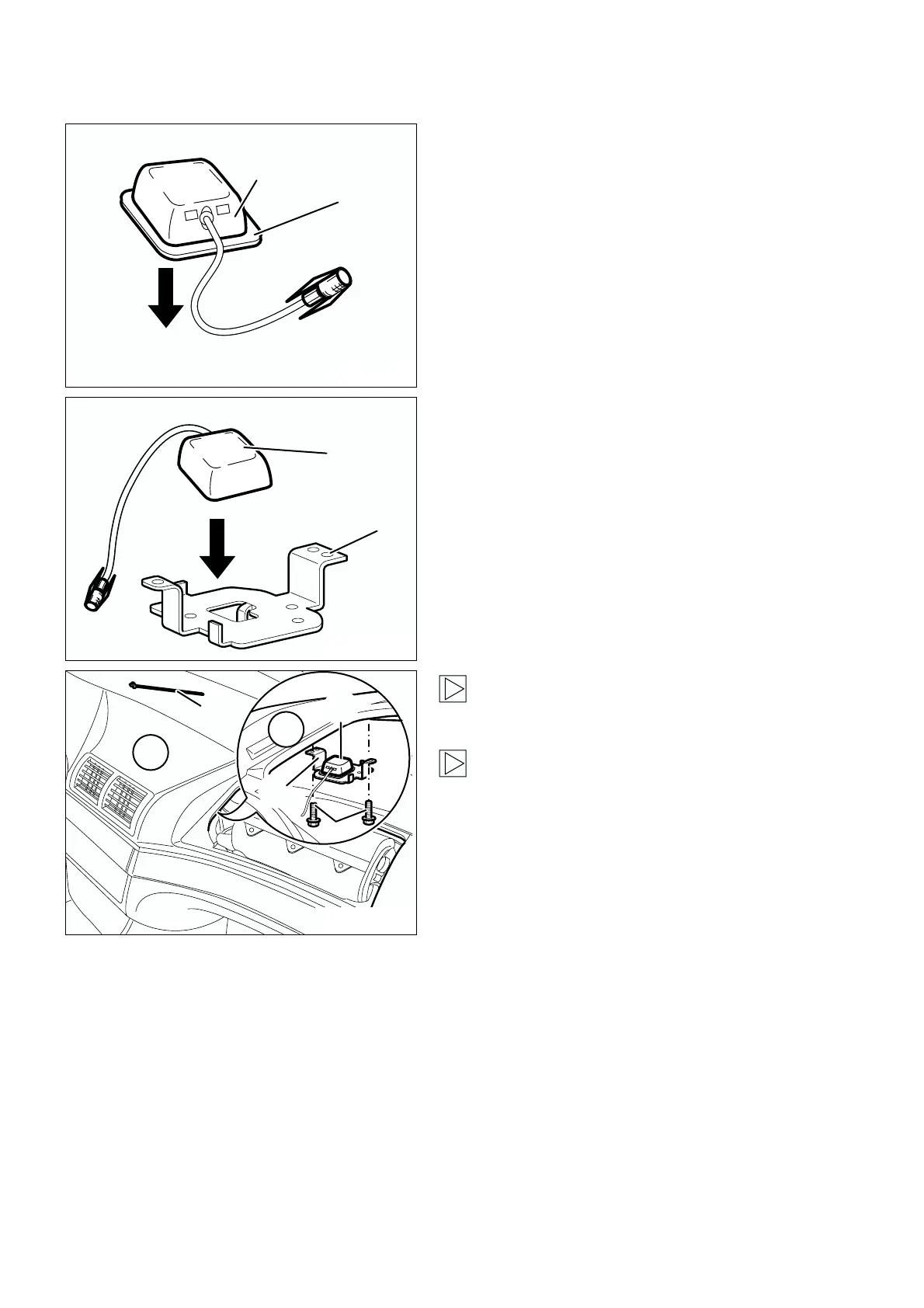

Remove the plate (30) from the GPS aerial (5).
0
Place the GPS aerial (5) on the holder (6) (the aerial
will be held in place by integrated magnets).
0
The figure shows the installation site of the
GPS aerial under the instrument panel.
The mounting points for the GPS aerial
holder (6) are marked in the instrument panel
(30). During the installation process ensure
that you do not miss the mounting points
since otherwise you will damage the
instrument panel (30).
Secure the GPS aerial holder (6) with the fitted
GPS aerial (5) to the instrument panel (30) using
two hexagonal screws (7).
Lay the GPS aerial cable to the installation site of
the radio and secure it with cable ties (4).
5
30
039 0008 B
6
5
039 0042 B
30
30
5
6
7
4
039 0010 B
