Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447 Issue date: 06.2001
6. Adapter cable connection overview (RHD cars only)
0)

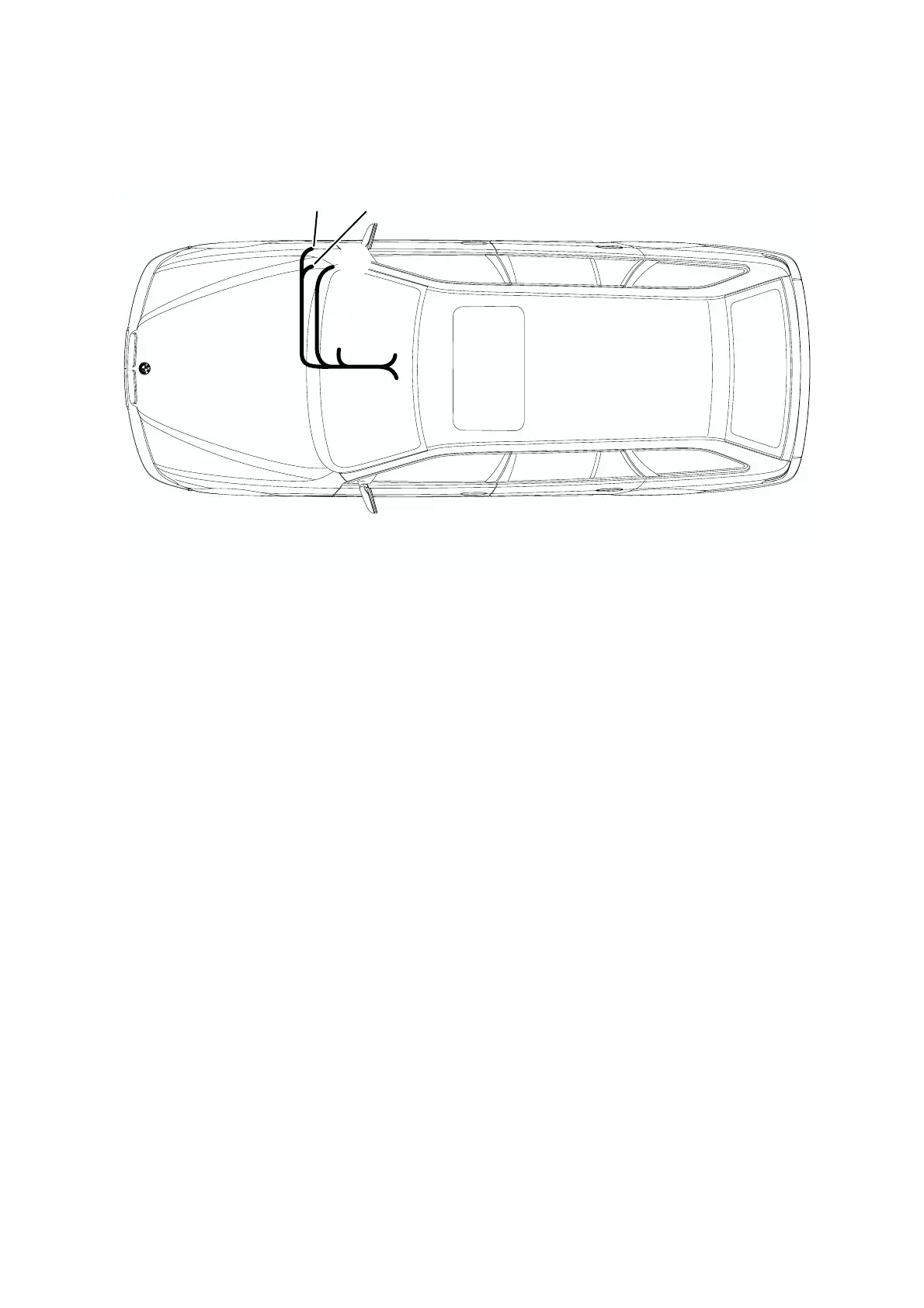

Lay the adapter cable A, as shown in the figure, and secure it with cable ties
.
Branch
A1
to the black 16-pin plug casing
X18126
in the centre console
Branch
A2
to the navigation radio in the centre console
Branch
A3
to the navigation radio in the centre console
Branch
A4
to the standard wiring harness on the A pillar at the front right using a double
insulation-piercing connector
Branch
A5
to the white 18-pin socket casing
X10113 PIN3
on the instrument cluster
Branch
A6
to the white 26-pin socket casing
X11175 PIN14
on the instrument cluster
Tie back any excess lengths.
A4
A1
A5
A2
A3
A6
039 0041 B
