EN/6
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447 Issue date: 06.2001

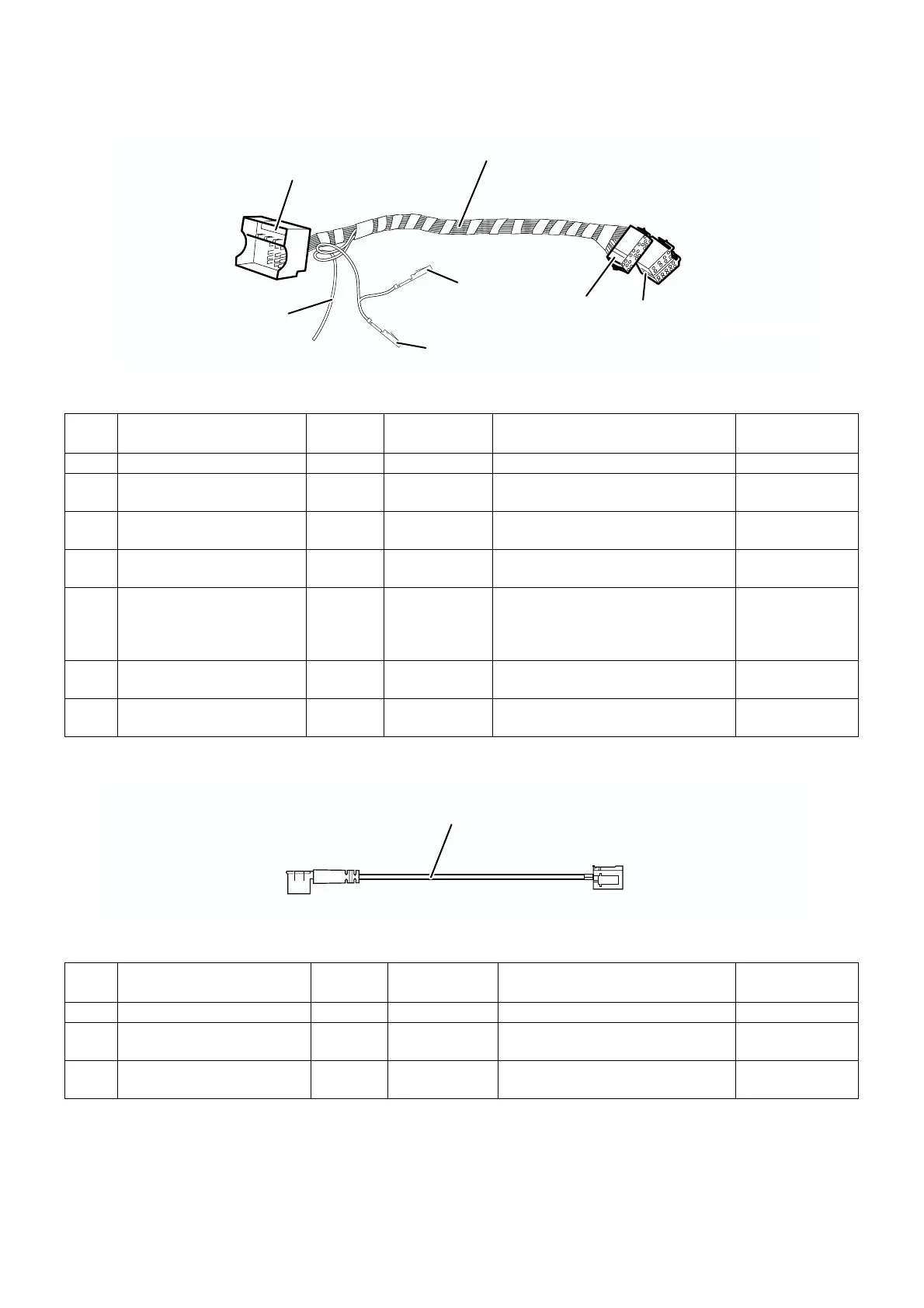

4. Adapter cable connection diagram
0
0
Coaxial plug casing
0
Item Description Signal
Cable colour /
Cross-section
Connection location in the car
Abbreviation /
Slot
A Adapter cable
--- --- --- ---
A1 Black 16-pin plug casing
--- ---
To black 16-pin plug casing in the
centre console
X18126
A2 Black 16-pin socket casing
--- ---
To the navigation radio in the centre
console
---
A3 Red 20-pin socket casing
--- ---
To the navigation radio in the centre
console
---
A4 Open cable end Reversing
light
terminal
BL/GE To the standard wiring harness, right A
pillar on the light module, using
double insulation-piercing connector
(check whether the signal exists)
---
A5 Blade terminal contact Tacho A
signal
SW/WS To the white 18-pin socket casing on
the instrument cluster
X10113 PIN3
A6 Blade terminal contact Tacho A
signal
WS To the white 26-pin socket casing on
the instrument cluster
X11175 PIN14
Item Description Signal
Cable colour /
Cross-section
Connection location in the car
Abbreviation /
Slot
B Aerial adapter
--- --- --- ---
B1 Coaxial plug casing
--- ---
To the navigation radio in the centre
console
---
B2 Fakra coaxial plug casing
--- ---
To coaxial Fakra aerial plug in the
centre console
---
A
A1
A2
A3
A5
A4
039 0006 B
A6
B
B2B1
039 0007 B
