19
E46iCCVM/ST039/3/21/00

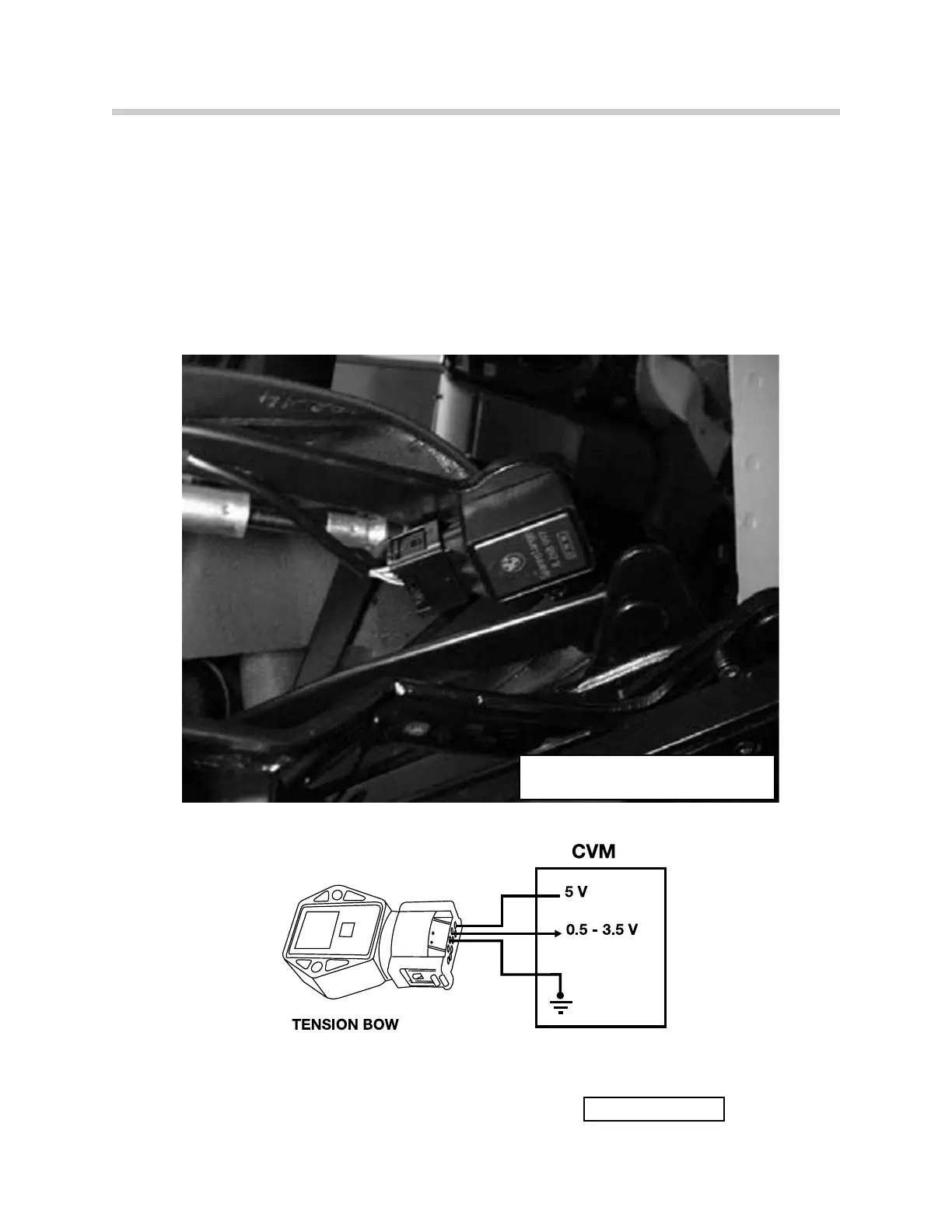

Angle Hall Sensor - Tension Bow
The angle sensor for the tension bow is mounted on the left side of the top linkage by the
tension bow hydraulic cylinder. The angle sensor receives power (5 volts) and ground from
the CVM. It provides a linear voltage signal input from approximately 0.5 to 3.5 volts as the
tension bow moves from a vertical to horizontal position.
The CVM uses the signal from the tension bow angle sensor to determine positioning of the
tension bow and switching operation during soft top lowering and raising.
61E46ANGLEHALLSENSOR0500
ART-E46ICTENBOW.
