Components of the System:
Roll Over Bar Cassettes

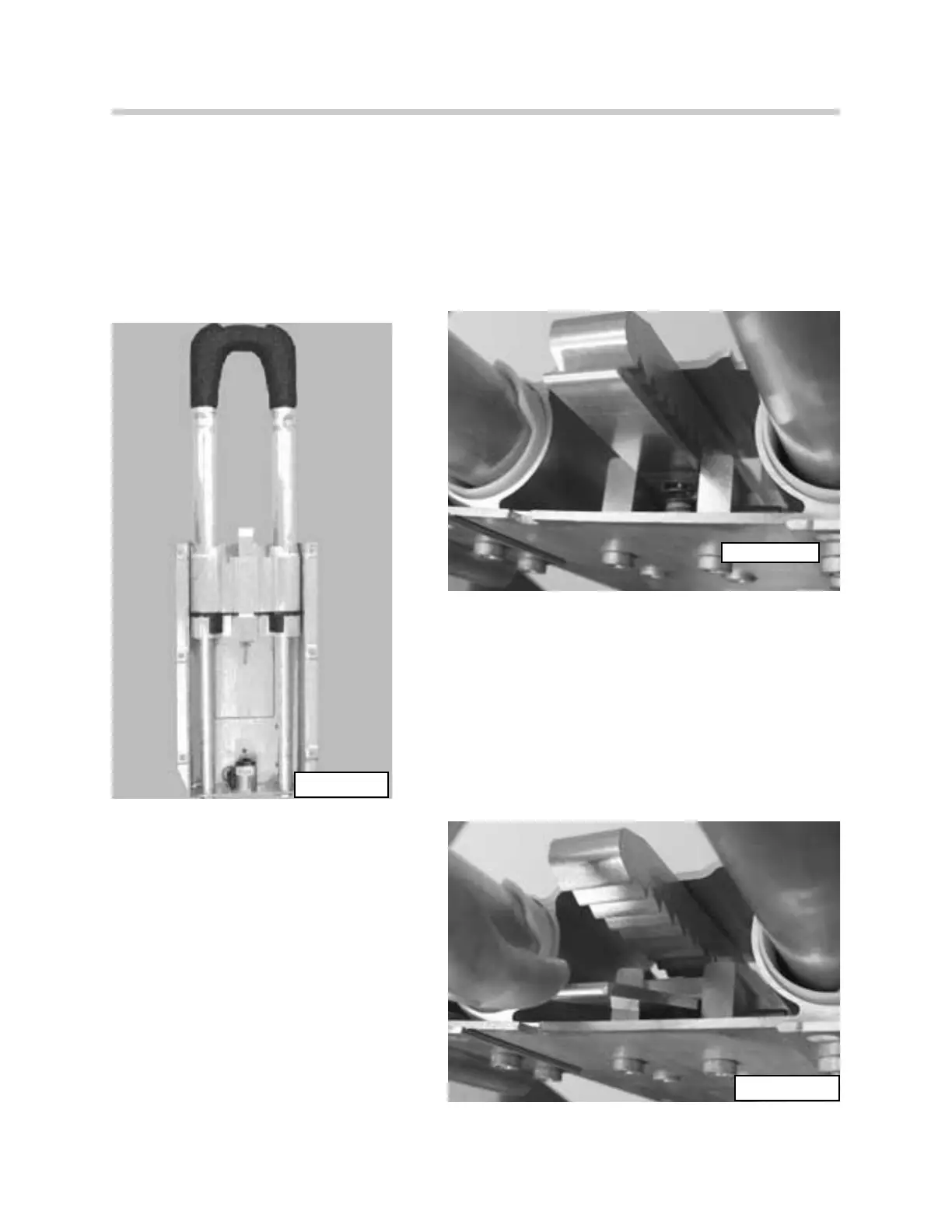

The roll over cassettes are new and constructed completely from aluminum with a pad inte-
grated in the top of the bar. The cassettes are bolted into the reinforced carrier behind the
seat back. When retracted, they are covered by the rear head rest which incorporate a flap,
at the back, that will open when the roll bars deploy.
A new resetting procedure is incorporated to retract
the bar after deployment. The reset is constructed in
the roll bar cassette and the separate tool has been
eliminated.
Pulling the reset lever forward will release the ratchet
assembly so that the roll bar can be pushed down and
locked into the solenoids.
Reset Lever
ART-KT5450
ART-KT5452
ART-KT5451
