Hydraulic Cylinders
Top Storage Compartment Cover

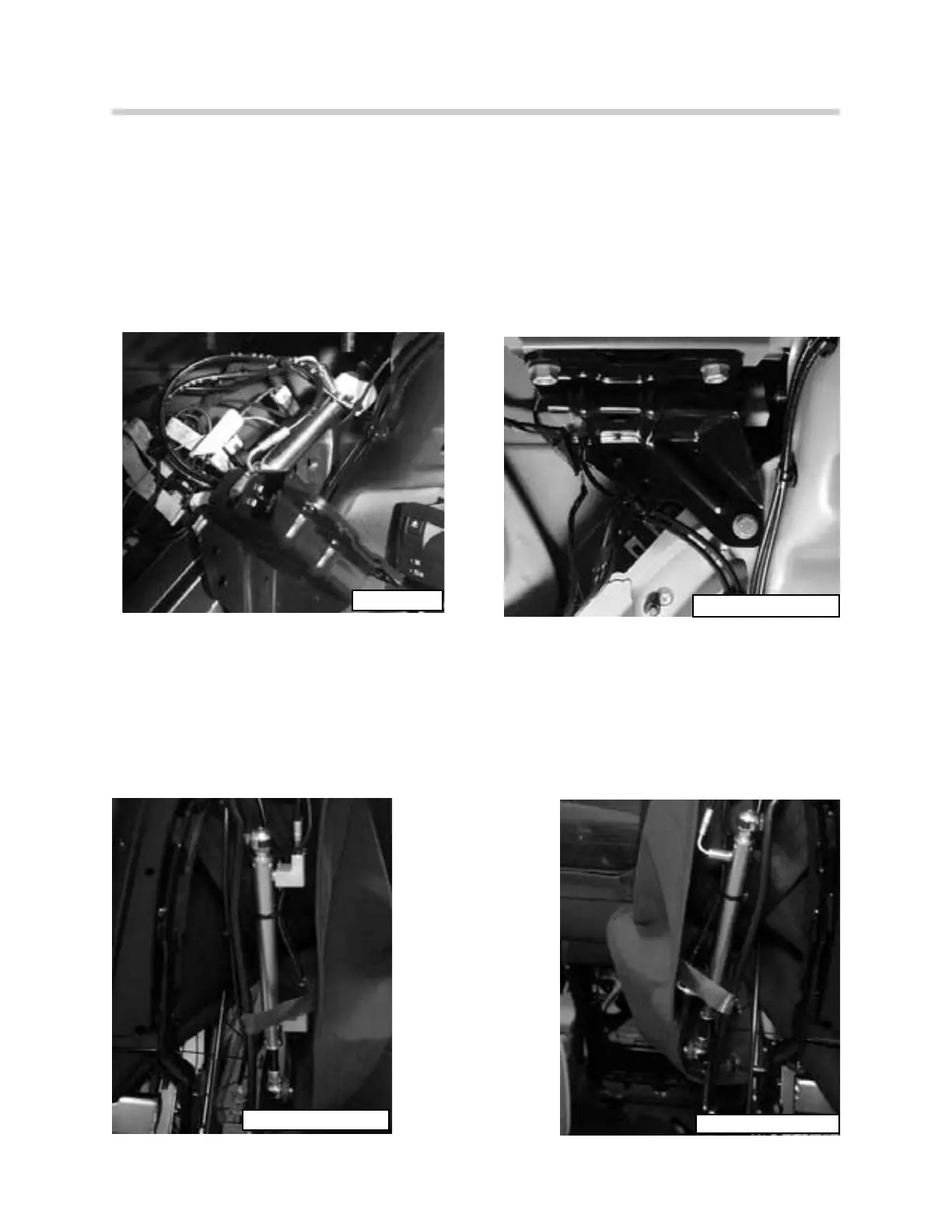

Two hydraulic cylinders are positioned on the left and right sides in the trunk for opening
and closing the top storage compartment cover. A Hall sensor is positioned on the left
cylinder to detect the full opened position of the cover.
Cylinder Removed Cylinder Installed
Tension Bow
Two hydraulic cylinders are positioned on the left and right sides of the tension bow, on the
top frame linkage for raising and lowering the bow. An angle hall sensor is installed on the
left tension bow linkage to detect the positioning of the bow. The hydraulic lines for the right
side tension bow cylinder are routed under the top fabric along the tension bow.
Hall Sensor
54E46CYLINDER1200
54E46CYLINDER1300
54E46CYLINDER0900
ART-KT5355
