Components of the System:
Top and Frame
The top frame is similar to the E36iC with modifications for the adoption of the hydraulic
cylinders used for raising/lowering the top. The unlock motor and gear drive assemblies are
attached to the front of the top frame as on the E36iC.
The convertible top consists of three layers:
•
TThhee oouutteerr llaayyeerr
is fabric with a non-replaceable glass rear window.
•
AA mmiiddddllee
fleece
lliinneerr
is installed between the fabric and inner liner for sound and
weather insulating purposes.
•
TThhee iinnnneerr lliinneerr
is similar to the E36iC and is attached to the top frame so that it
stretches tight when the top is closed.

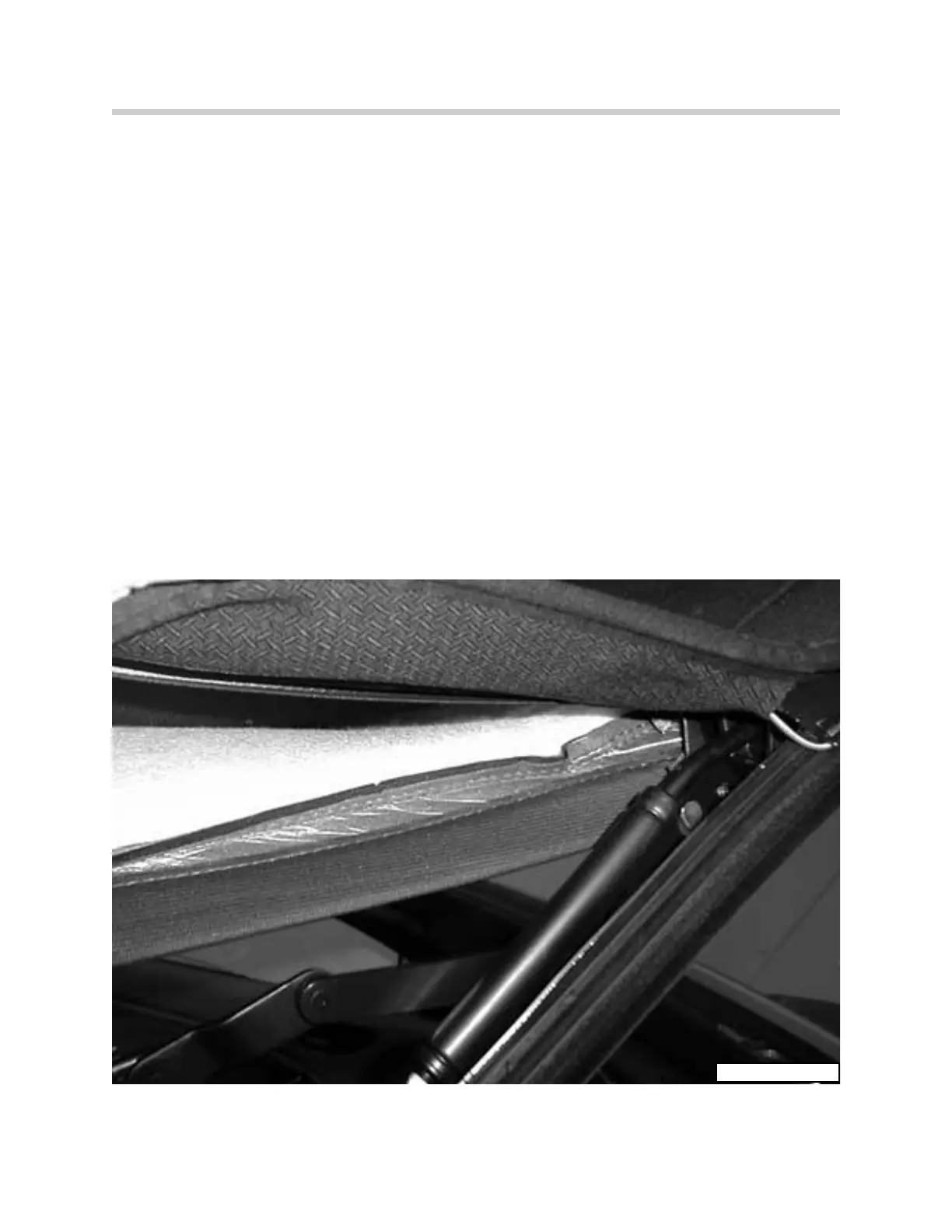

OUTER FABRIC
INNER LINER
FLEECE LINER
ART-TOPLAYERS
