109

E90 General Vehicle Electrical

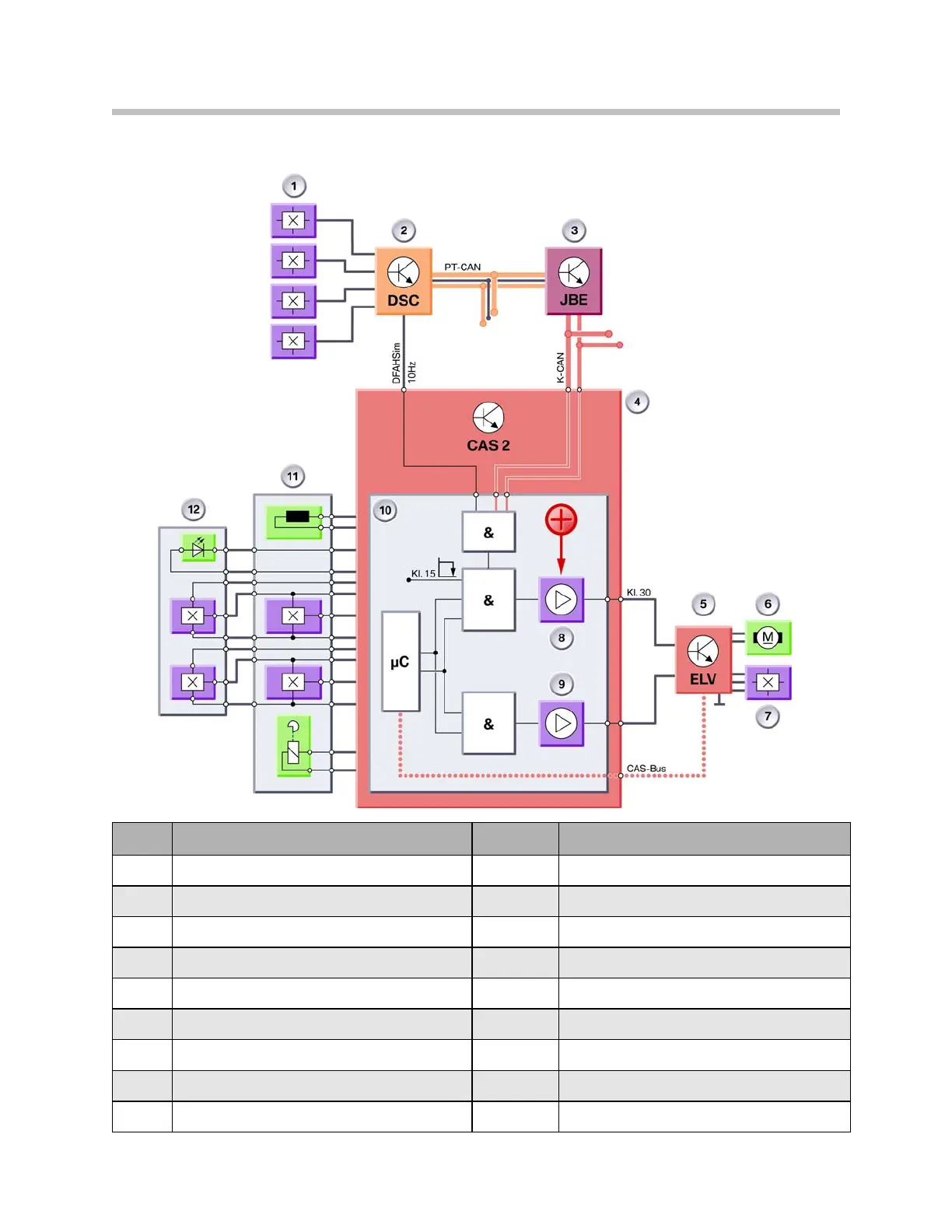

Electric Steering Lock (ELV) - Circuit Diagram

Index Explanation Index Explanation

Wheel Speed Sensors

Safety Concept

Dynamic Stability Control (DSC)

Holder

Junction Box Electronics Control Module (JBE)

START/STOP Button

Car Access System 2 (CAS2)

DFAH Sim

Redundant Speed Signal

Electric Steering Lock (ELV)

K-CAN

Bodyshell CAN

ELV Motor

PT-CAN

Powertrain CAN

Hall Sensor ELV

CAS-Bus

K-Bus based on K-bus protocol

Power Stage for Power Supply +

Kl. 15

Terminal 15

Power Stage
