BMW E90 - Locking Procedure

111
E90 General Vehicle Electrical
Locking Procedure

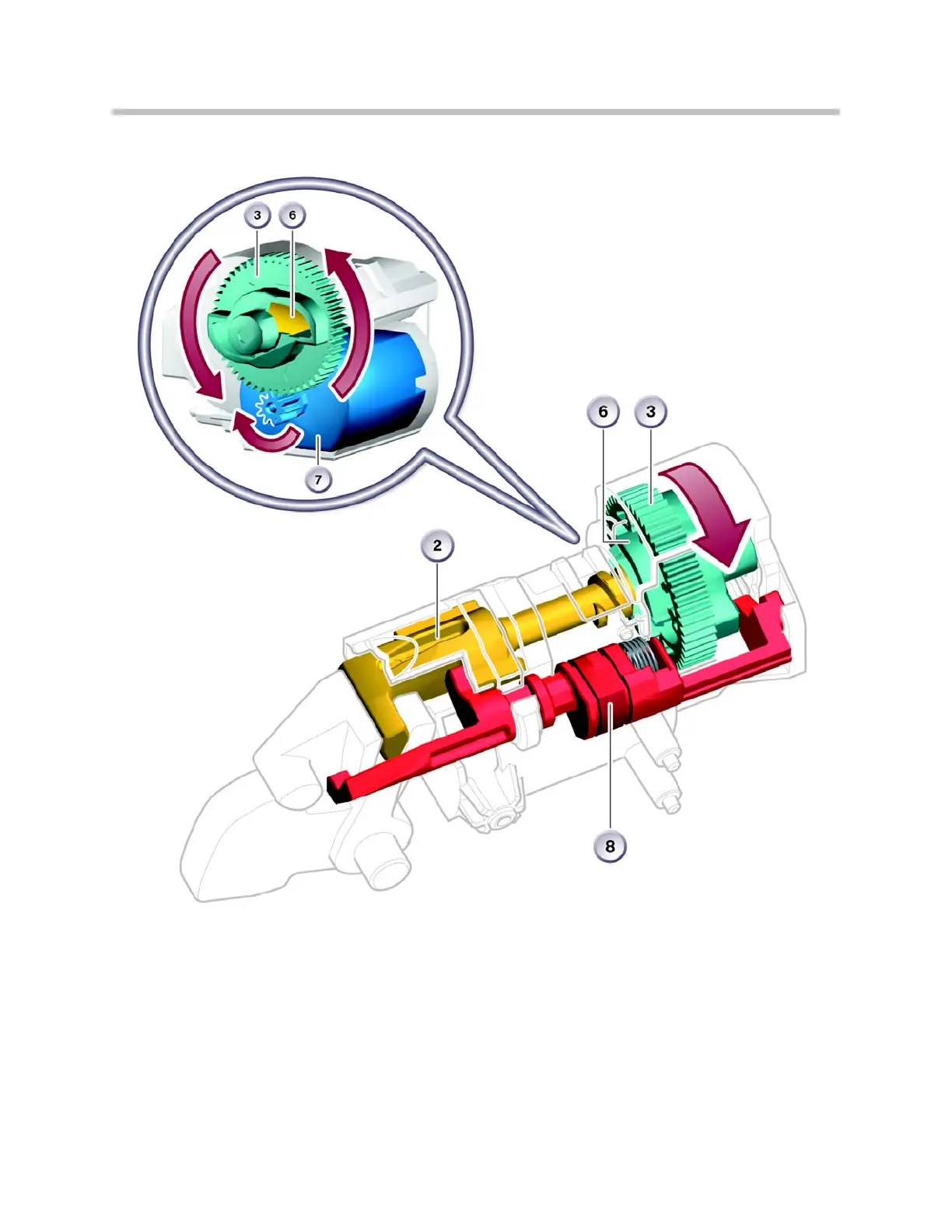

From the "unlocked" position, the electric motor (7) begins to turn the gearwheel with
controlled steps (3) and releases lock mechanism/lever.
The drive carrier with worm gear (2) is blocked by the locking lever (8). The nut (6) now
begins to rotate.
