E90 General Vehicle Electrical
Central Locking Drive Units for Truck Lid and Fuel Filler Flap
The central locking drive units for the truck lid and fuel filler flap are each equipped with a
motor for unlocking/locking purposes.
Manually Release for Fuel Filler Flap
The fuel filler flap can be unlocked manually in the event of an electrical defect. The
release device is located in the luggage compartment on the right behind the luggage
compartment cover.
1. Remove cover
2. Pull green knob with fuel pump symbol.
Lock Barrel, Trunk Lid
The trunk lid can be unlocked via the lock barrel using the mechanical key or spare key.
This a pure mechanical unlocking function and triggers no response in the central locking.
Emergency Trunk Lid Release
The emergency release for the trunk lid is integrated in the luggage compartment. The
central locking of the trunk lid is released by pulling the pull handle for the emergency
release.
A detailed description of the truck lid emergency release facility is provided in the E90
Owner's Manual.

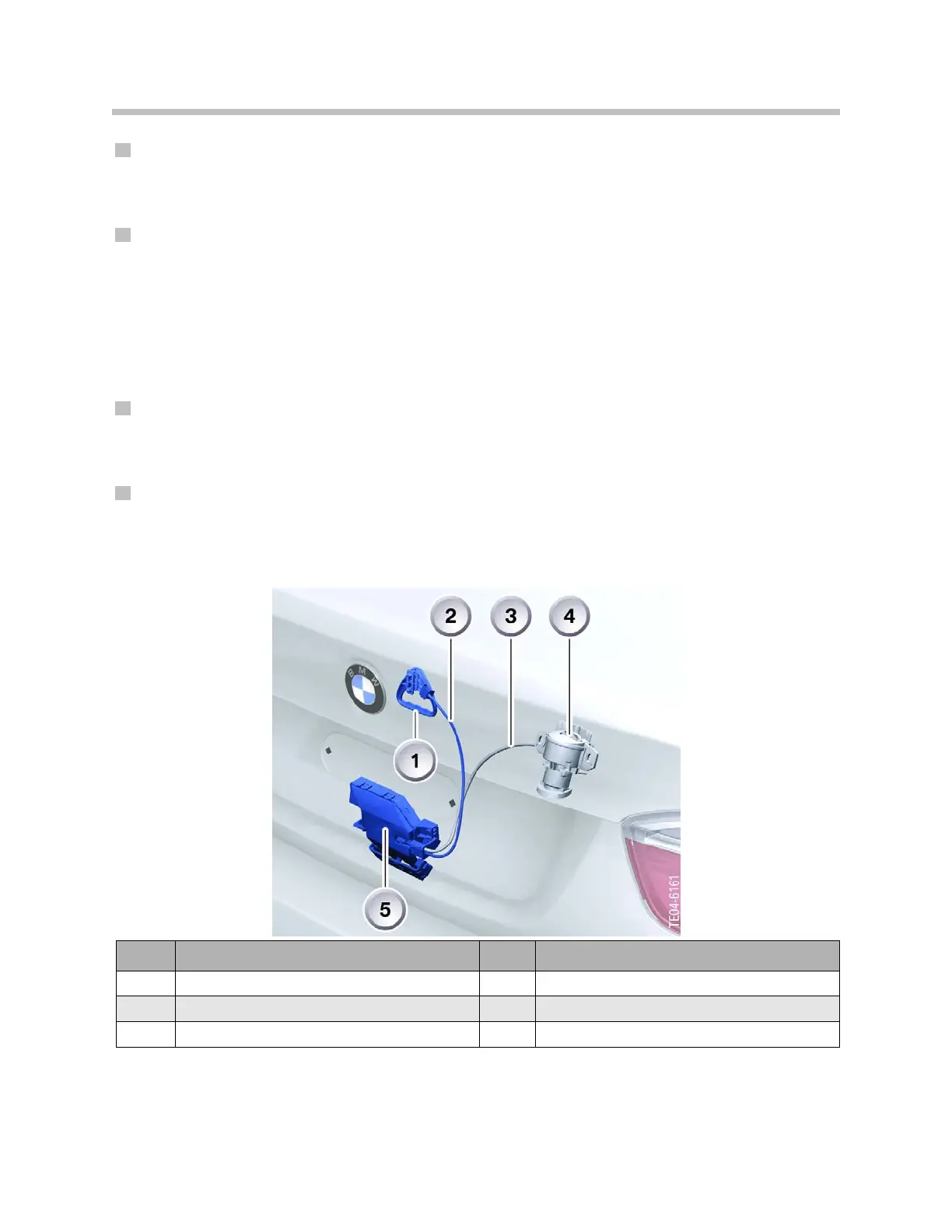

Index Explanation Index Explanation
1
Pull handle for emergency release
4
Cylinder barrel in trunk lid
2
Bowden cable for emergency release
5
Central locking, trunk lid
3
Bowden cable for cylinder barrel in trunk lid
