EN
13
Status LED information

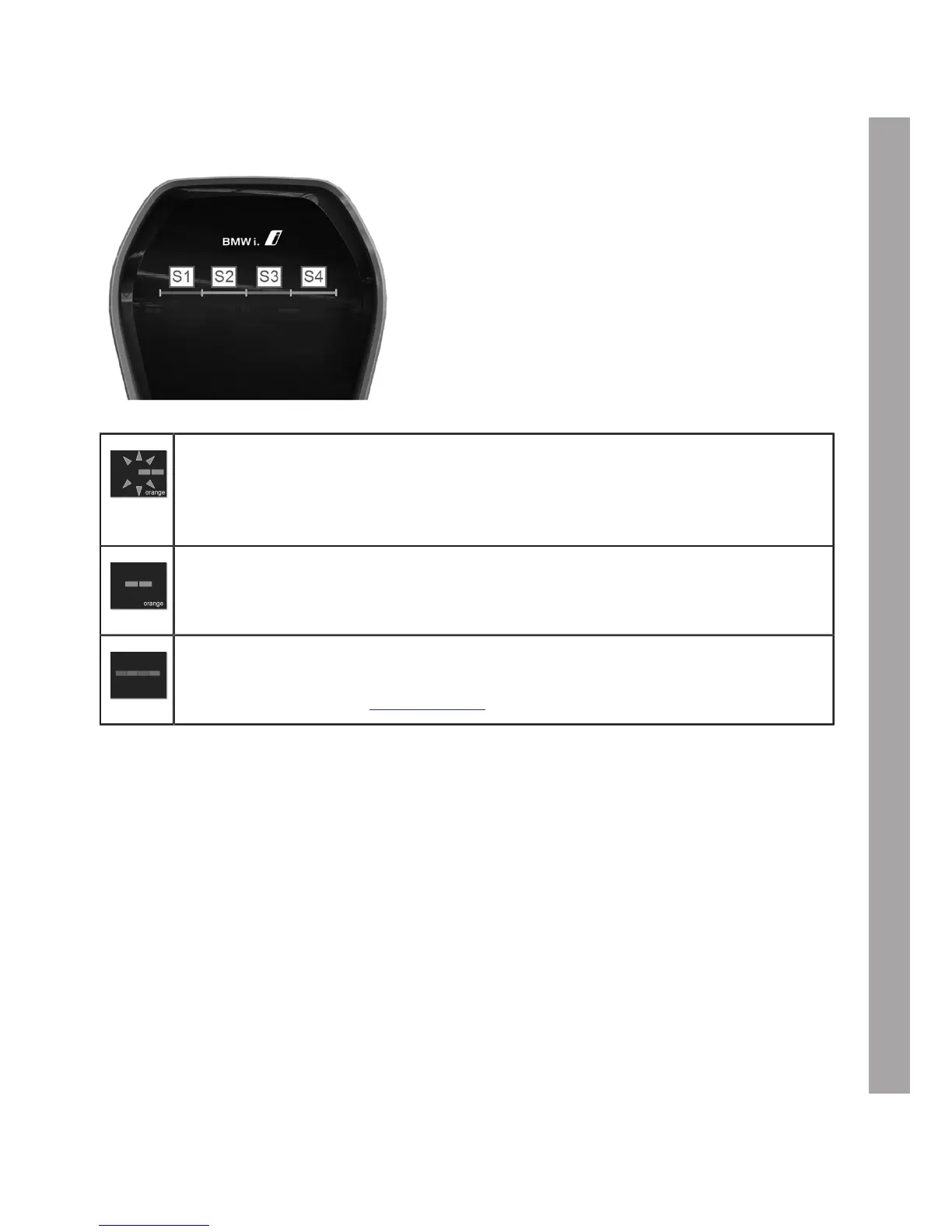

Status LED segments
The status LED provides information on the
current state of the Wallbox. It consists of
4 segments, S1 to S4, which may be lit or flash in
various colours together or individually.
The status LED is only visible when the power
supply is active.
Unless otherwise stated, all 4 segments will be lit
together.
Temperature cut-out
If the maximum temperature limit of the Wallbox is exceeded, the charging cycle will be
temporarily stopped, and segments S3 and S4 of the status LED will flash in orange.
After the cooling phase the charging cycle will restart automatically.
Commissioning mode
When commissioning mode is active, segments S2 and S3 of the status LED will be lit in
orange, see installation instructions.
Faults
If faults occur, they will be indicated by the status LED and special colour codes. For
further details see section Troubleshooting.
