3
45
Operation
• Press the seat firmly down-
wards over the detent.
» The seat engages with an
audible click.

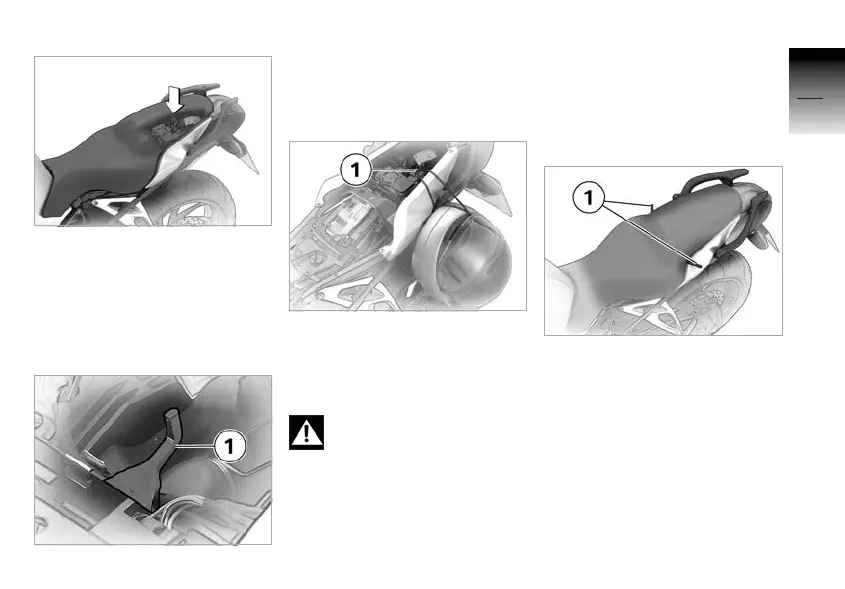

Helmet holder
Helmet holder 1 is underneath
the seat. It can accommodate
one motorcycle helmet.
• Remove the seat (
b 44).
• Pass the wire rope through
the helmet and engage the
ends in the holder.
• Install the seat.
On the right-hand side of
the motorcycle, the hel-
met could be damaged by
heat from the end silencer.
Always attach the helmet on
the left-hand side of the
motorcycle.c
Luggage loops
Loops 1 for attaching luggage
straps are located on the
underside of the seat.
