Mirrors
with Option 719, Classic milled
part package
OE
or
with Option 719, Storm milled
part package
OE
or
with HP milled part package
OE

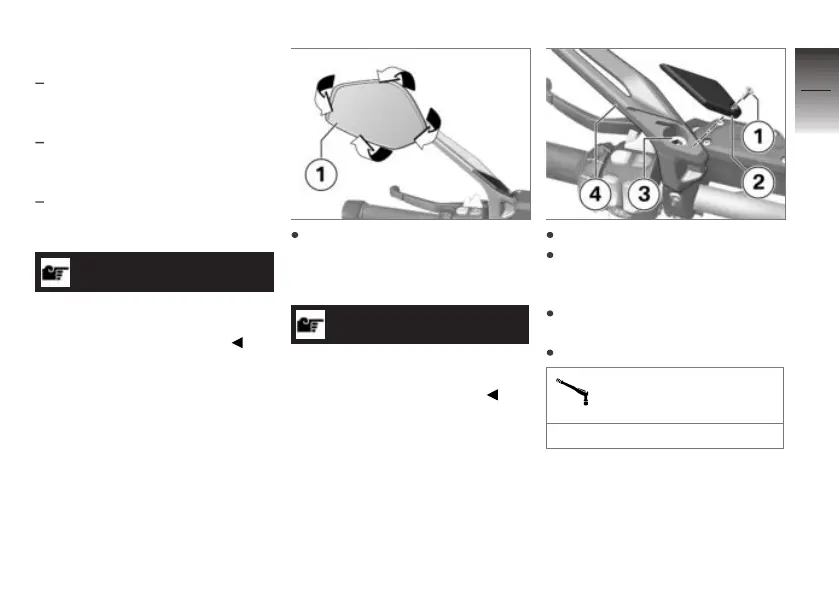

Adjusting mirrors
NOTICE
A small and a large angle screw-
driver is supplied with the vehicle
for adjusting the mirror arm.
Turn the mirror 1 to the correct
position.
Adjusting mirror arm
NOTICE
A small and a large angle screw-
driver is supplied with the vehicle
for adjusting the mirror arm.
Remove bolt 1 and cover 2.
Loosen adjusting screw 3 and
turn the mirror arm 4 to the
desired position.
Tighten adjusting screw 3,
while holding the mirror arm.
Attach cover 2 and fit bolt 1.
Mirror on handlebars
25 Nm
4
15
z
Adjustment
