From position A: narrowest
distance between handlebar
grip and handbrake lever.
In 5 steps in direction of po-
sition B for enlarging the dis-
tance between handlebar grip
and handbrake lever.

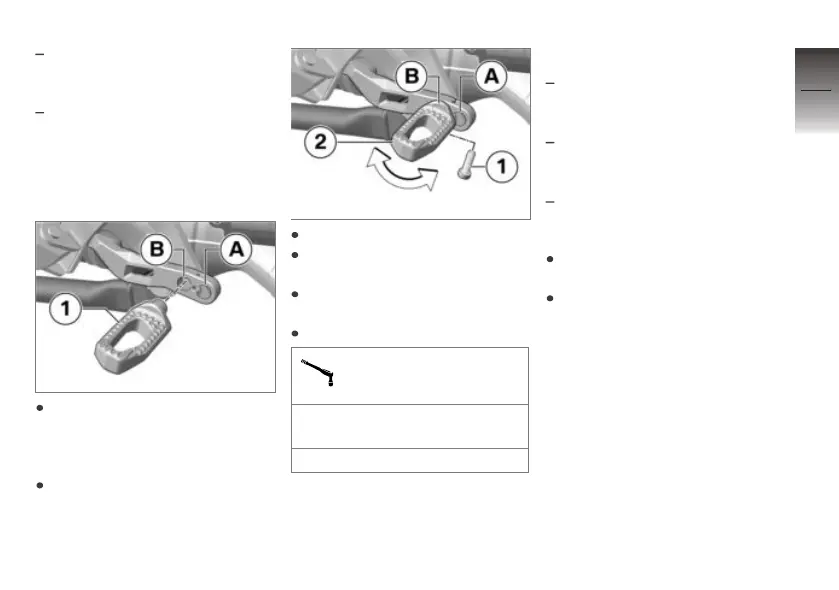

Adjust footbrake lever peg
Foot distance and height to
peg 1 can be adjusted by turn-
ing through 180° and installa-
tion in position A or B.
Remove the bolt 1.
Clean the threads.
Install peg 2 in desired posi-
tion A or B.
Turn the peg 2 in the desired
position.
Fit new bolt1.
Peg to footbrake lever
Thread-locking compound:
micro-encapsulated
10 Nm
Footrests
with Option 719, Classic milled
part package
OE
or
with Option 719, Storm milled
part package
OE
or
with HP milled part package
OE
Adjusting footrests
The footrest is adjusted on the
right and left in the same way.
The position of the footrest
must be set identically on the
right and on the left.
