Introduction
Description
The APC-AMC2-4WCF (also called AMC2-4W, AMC2, or
controller) is equipped with four independent interfaces for
Wiegand type readers. It is able to control two doors with a
reader in each direction and up to four doors with a reader in
one direction only.

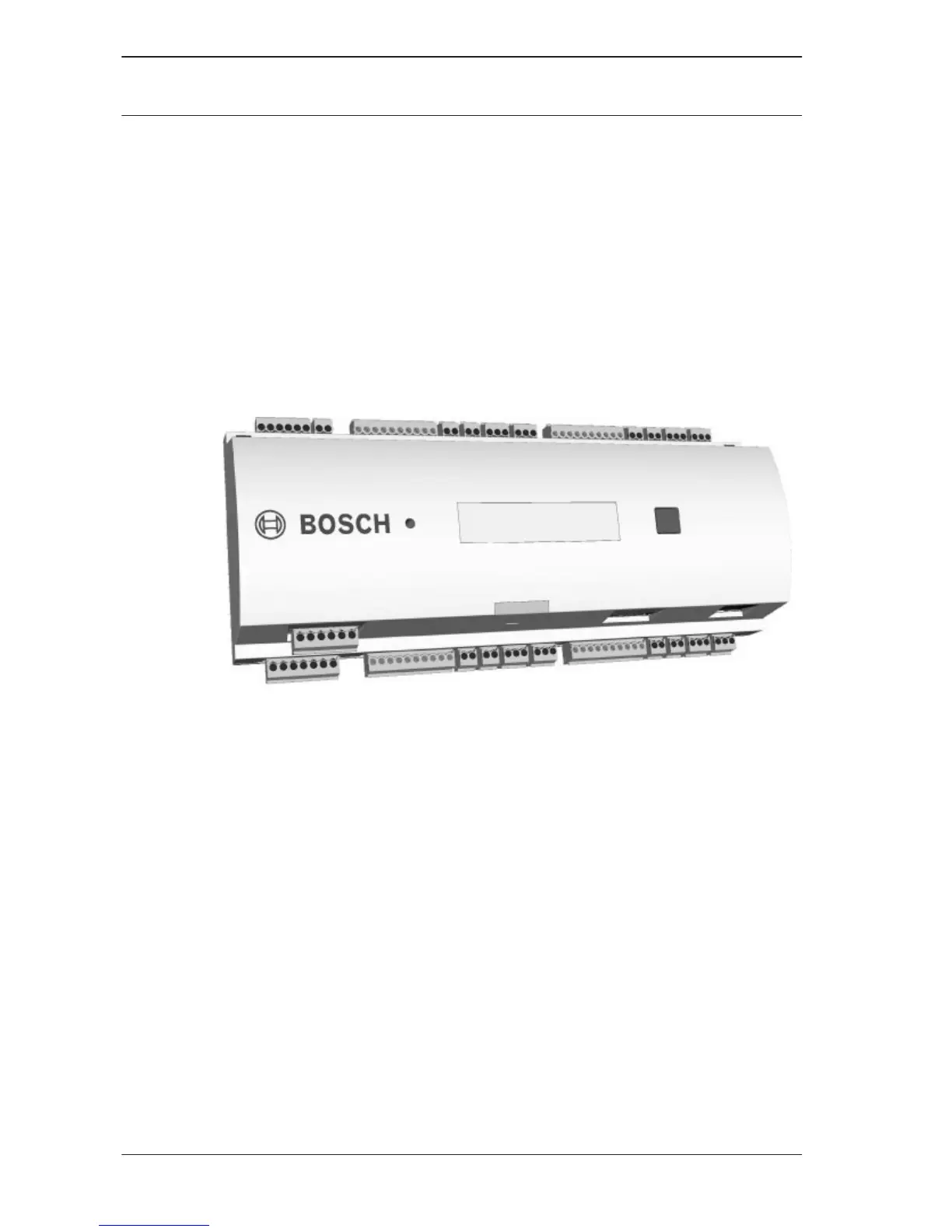

Figure 3.1: The Access Modular Controller AMC2-4W
All necessary information for access verification is stored in a
battery buffered on-board memory and a Compact Flash (CF)
memory card. This guarantees autonomous access decisions and
complete access registrations even if the management host
system is offline. The built in compact flash adapter provides
adequate storage capability for cardholders and events.
The AMC2-4W electronics are completely covered by a plastic
housing. The liquid crystal display provides all important status
information.
3
3.1
12 en | Introduction
Access Modular
Controller
2016-11 | AMC2-4W | Bosch Sicherheitssysteme
