Bosch AMC2-4W User Manual

RS-485 Two Wire Connection

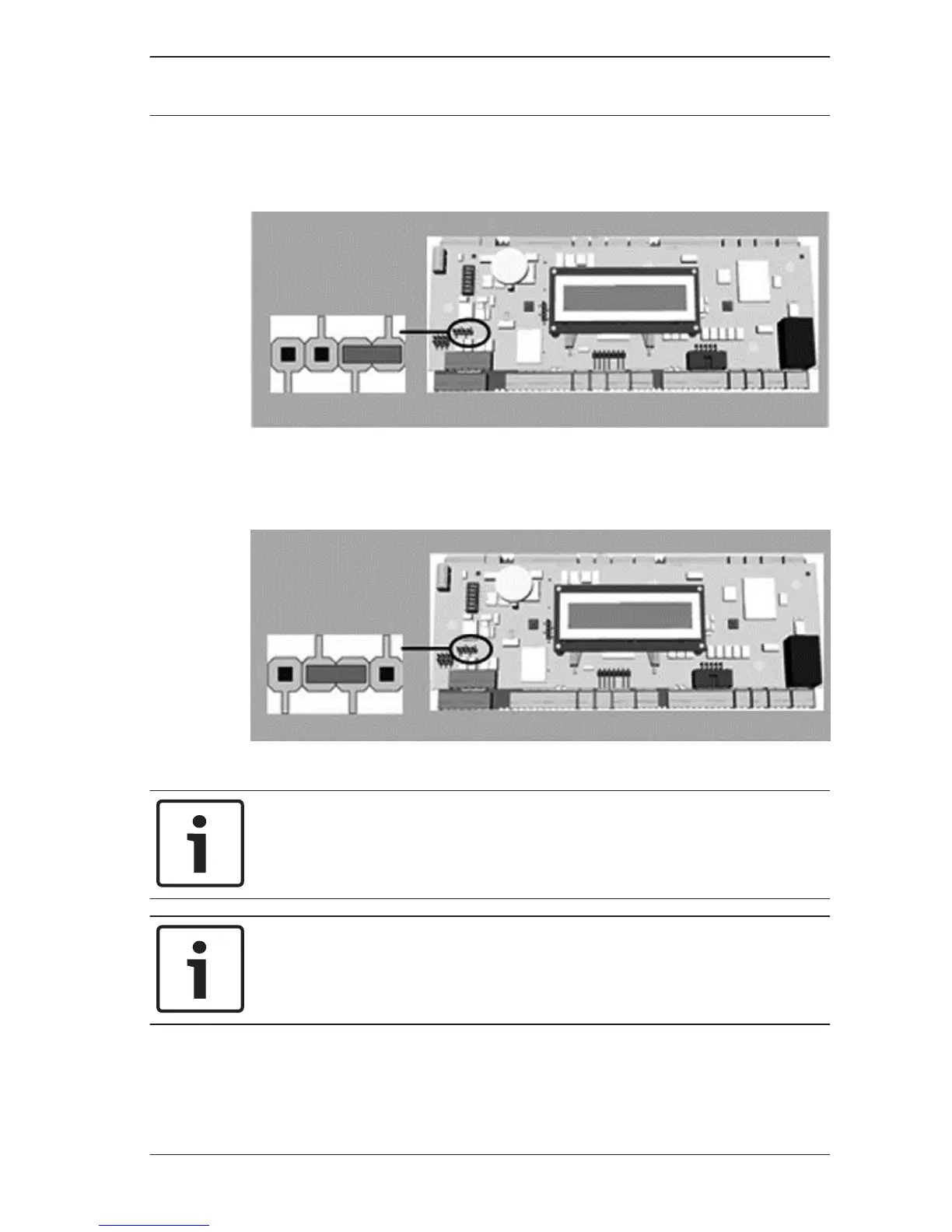

Figure 4.11: Setting of the jumpers for RS-485 two wire connections
RS-485 Four Wire Connection
Figure 4.12: Settings for RS-485 four wire connection
Notice!
See the notices for setting the RS-232 / RS-485 converter.
Notice!
If a four-wire connection is used the interface must be set up as
a crosslink.
4.9.1
4.9.2
Access Modular
Controller
Installing | en 33
Bosch Sicherheitssysteme 2016-11 | AMC2-4W |
