SSB 6720866940 (2017/11) US
Main components | 11

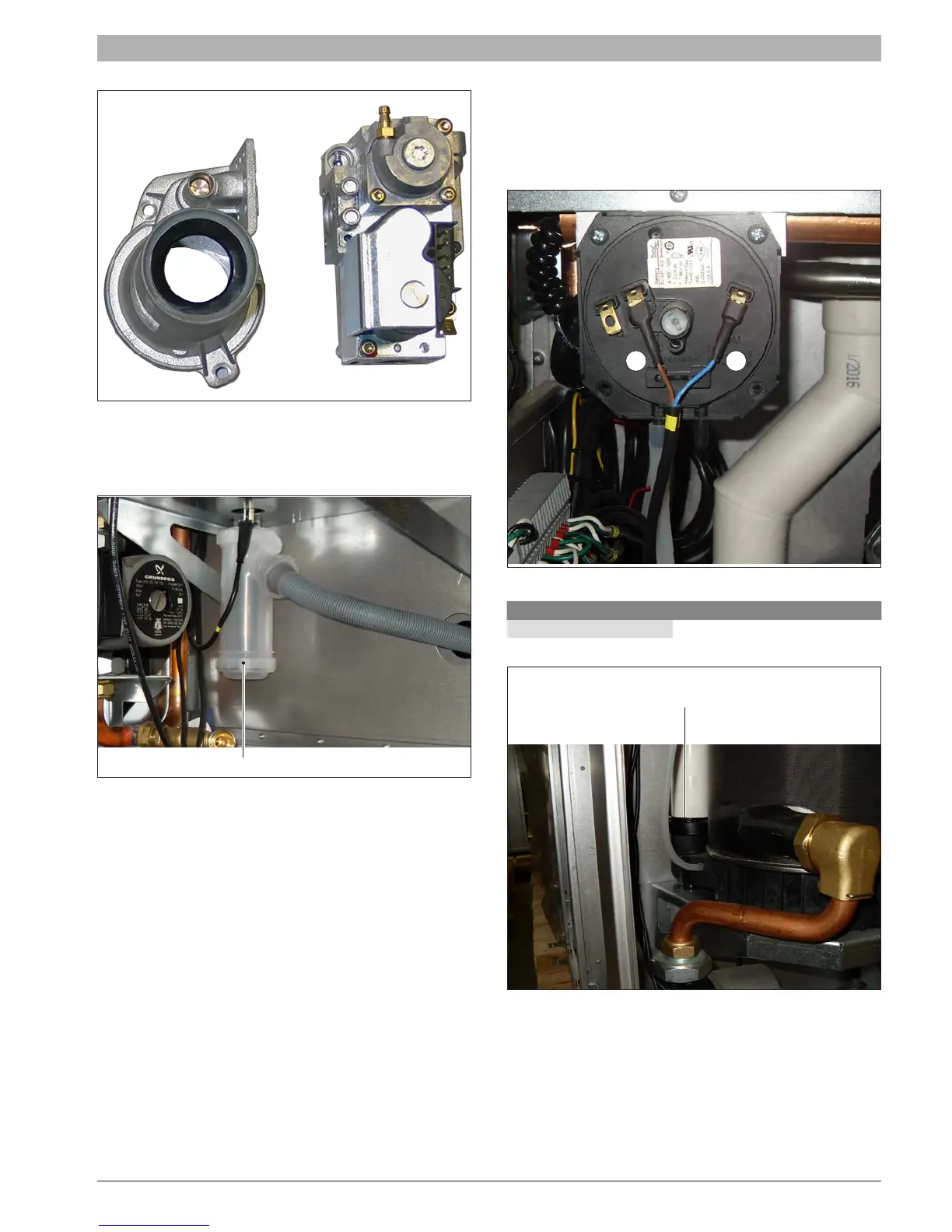

Fig. 18 Venturi SSB160
4.12 Condensate trap
The trap (Fig. 19) drains condensate discharged from the heat exchanger
and ue pipe.
Fig. 19 Condensate trap
4.13 Flue pressure switch
Flue pressure switch is a safety device designed to turn off the burner in
case of block vent (for example due to obstruction of condensate drain).
The silicon pipe is connected on one end to the “+” port of pressure
switch (Fig. 20), and on the other end to the bottom of the heat exchanger
(Fig. 21).
+
-
Fig. 20 Flue pressure switch
Inch W.C. mbar
1.4 3,5
Tab. 3 Flue gas pressure switch setpoint value
of heat exchanger
Fig. 21 Flue pressure switch
