Installation (only for approved contractors)
17
Tronic 4000 – 6721830066 (2021/06)
▶ The spacers should be placed at the back of the appliance.

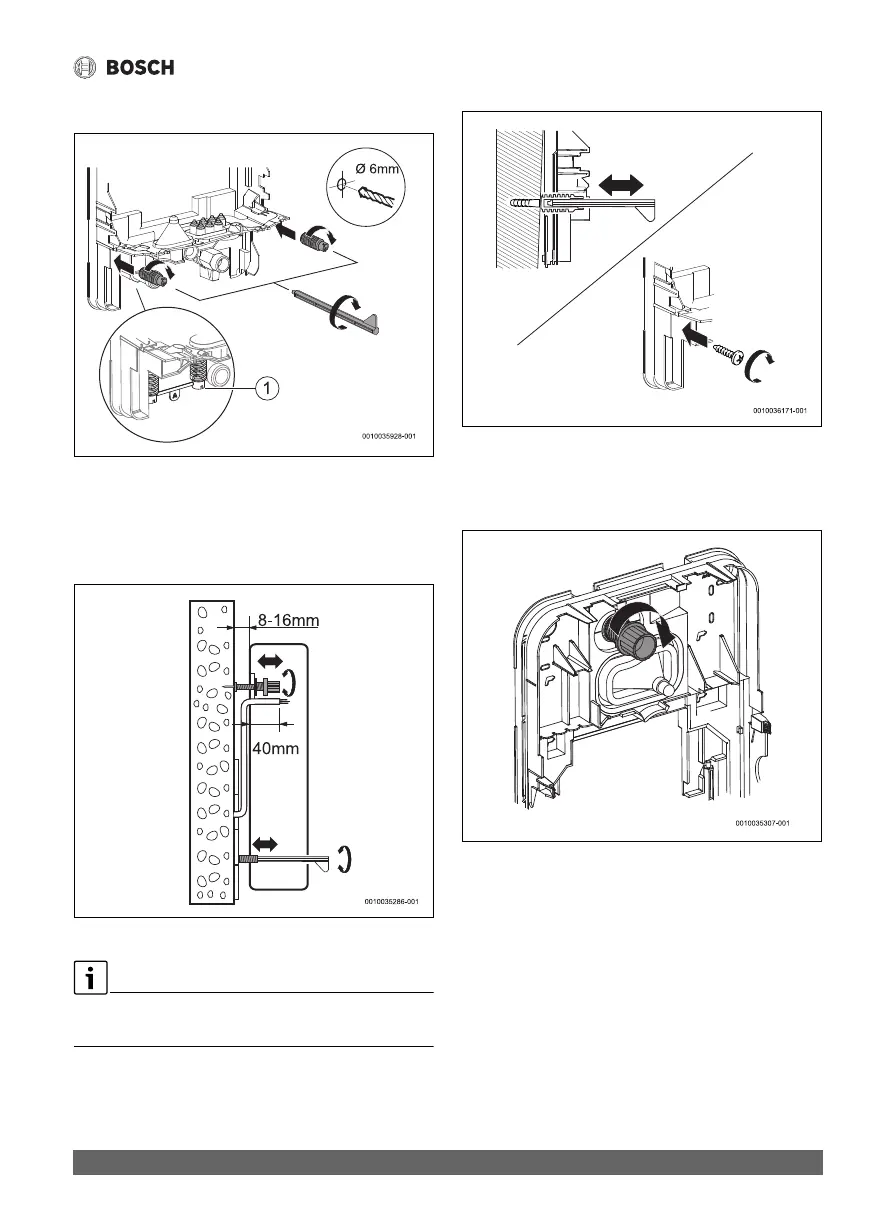

Fig. 25
[1] Spacers
▶ Level the appliance with the upper mounting fixing and the
spacers, if the distance between the appliance and the wall
is 8-16 mm.
Fig. 26
If the appliance is not securely fixed to the wall,
▶ Use the screws to fix the spacers to the wall.
Fig. 27
After levelling the appliance,
▶ Tighten the fixings so that the appliance is secured to the
wall.
Fig. 28
5.7 Hydraulic block assembly
▶ Position the hydraulic block into the back of the appliance.
