Input connections
RCA input connections
Insert the RCA plugs into the INPUT A or INPUT B connectors.

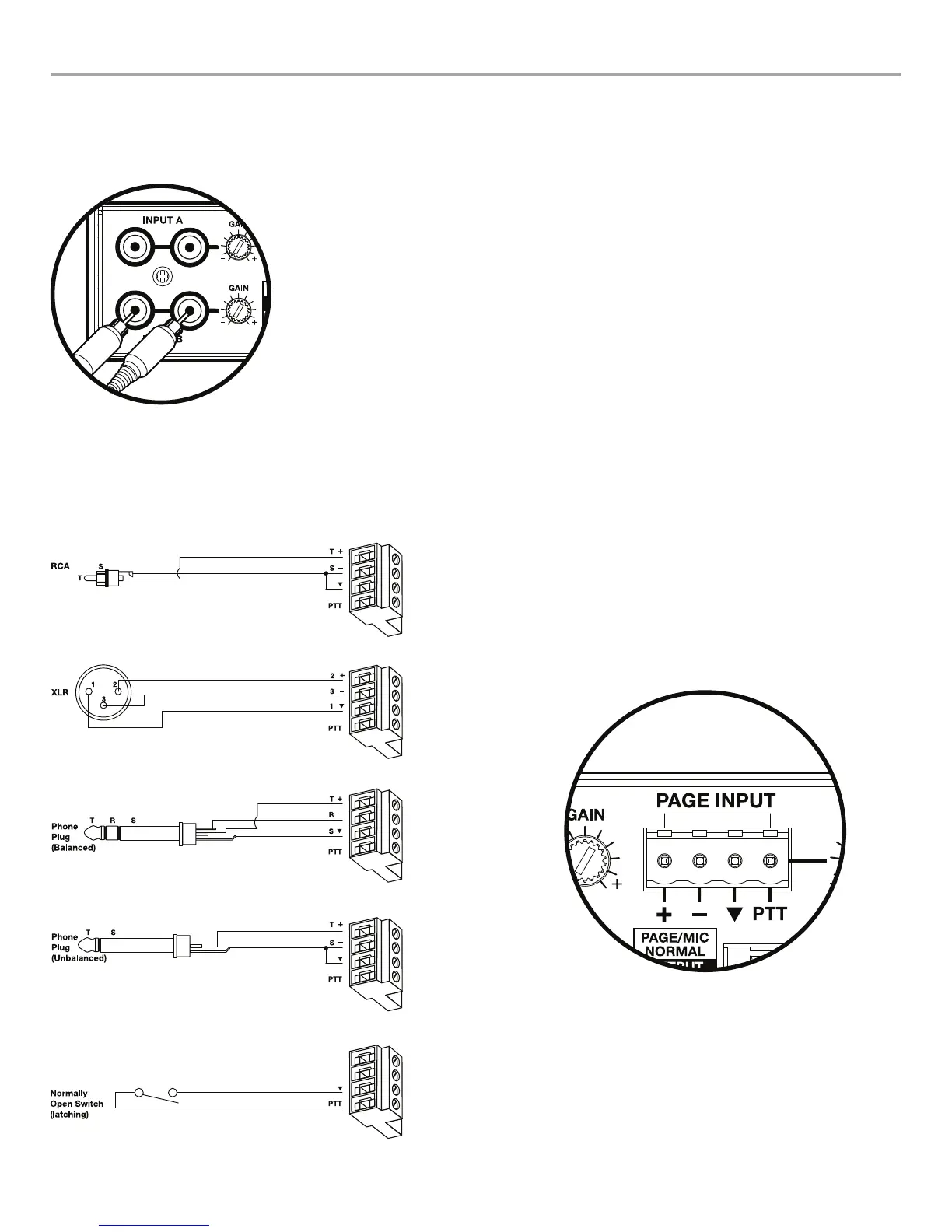

Page input connections
The PAGE INPUT is a mic/line input with a trigger contact closure. This input signal is routed to all outputs (including AUX
OUT) when the trigger is detected. This is designed for push-to-talk paging microphones and telephone paging systems.
See the diagrams below for input wiring configurations. Use the included 4-pin Euroblock.
Source connector PAGE INPUT

Bose FreeSpace IZA 190-HZ Specifications

General

Amplifier class	D
RMS rated power	90 W
Channels quantity	1 channels
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	1 %
XLR in	Yes
Line inputs (RCA)	2
Line outputs (RCA)	1
Speakers connectivity type	RCA
Product color	Silver
Rack capacity	1U
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power protection features	Overheating, Short circuit
Power consumption (typical)	15 W
Package weight	4100 g

Weight and Dimensions

Depth	310 mm
Width	214 mm
Height	45 mm
Weight	3200 g
