Remote Control connections
Remote volume and source selection control
The amplifier is designed to work with the Volume Control with A/B Select User Interface (PC 041967) accessory. The
REMOTE connector on the rear panel of the amplifier is labeled to match the connector on the user interface. Use the
included 4-pin Euroblock.

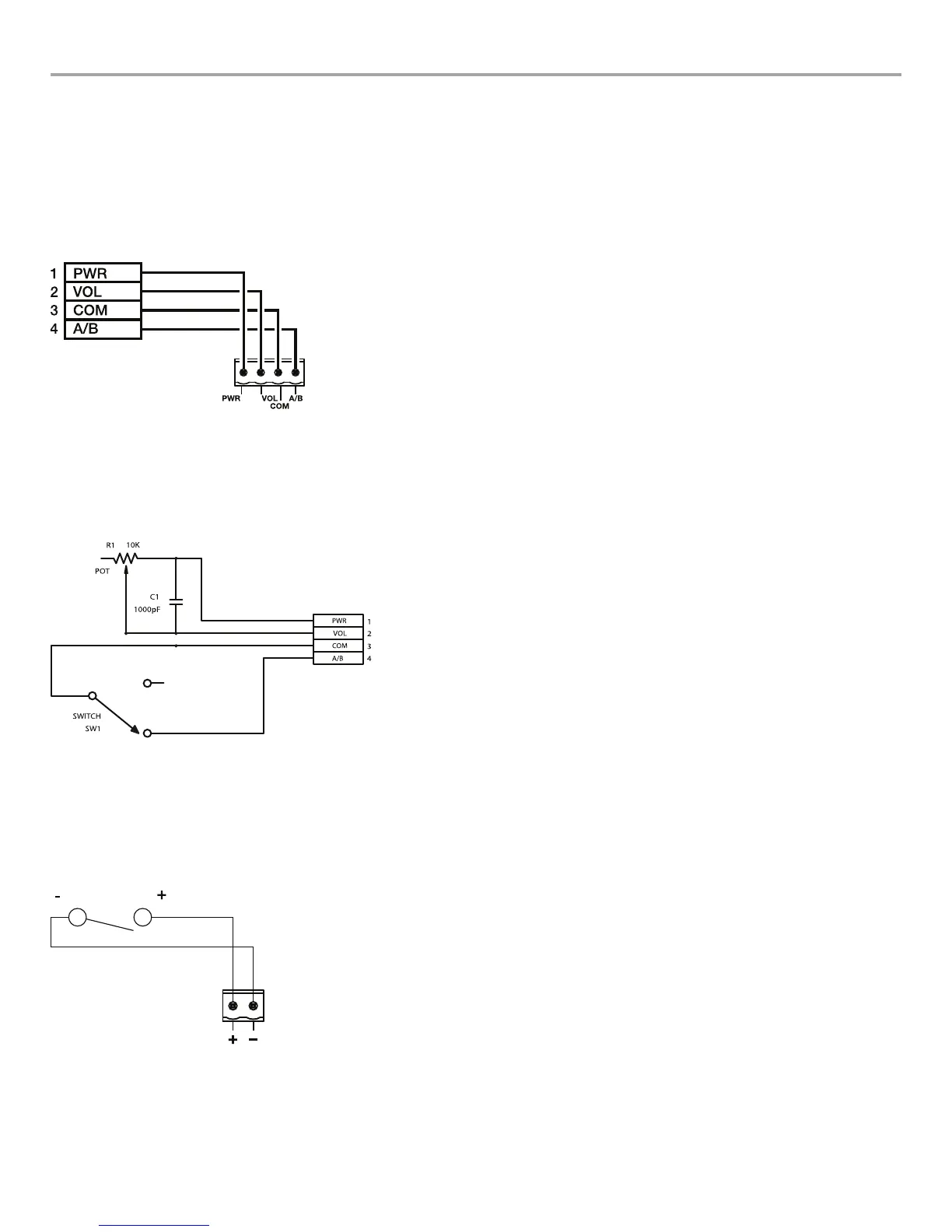

Volume Control with A/B Select User Interface
See the Bose
®
Volume Control with A/B Select User Interface install guide for more details.
The amplifier also can be controlled with a linear taper 10k ohm potentiometer (full CCW=0 ohm, full CW=10k ohm) and
SPDT switch.
Volume Control with A/B Select
Note: The Bose Volume Control User Interface (PC 041966), not shown here, is not fully functional with the IZA 190-HZ
and IZA 250-LZ amplifiers.
Mute with standard contact closure
The amplifier is designed to mute all outputs (including AUX OUT) when a trigger is detected via the MUTE connector.
This is triggered from a standard contact closure. Use the included 2-pin Euroblock.
AC power connection
Once all the input and output connections have been made on the rear panel, connect the amplifier to AC power with
included power cord.
