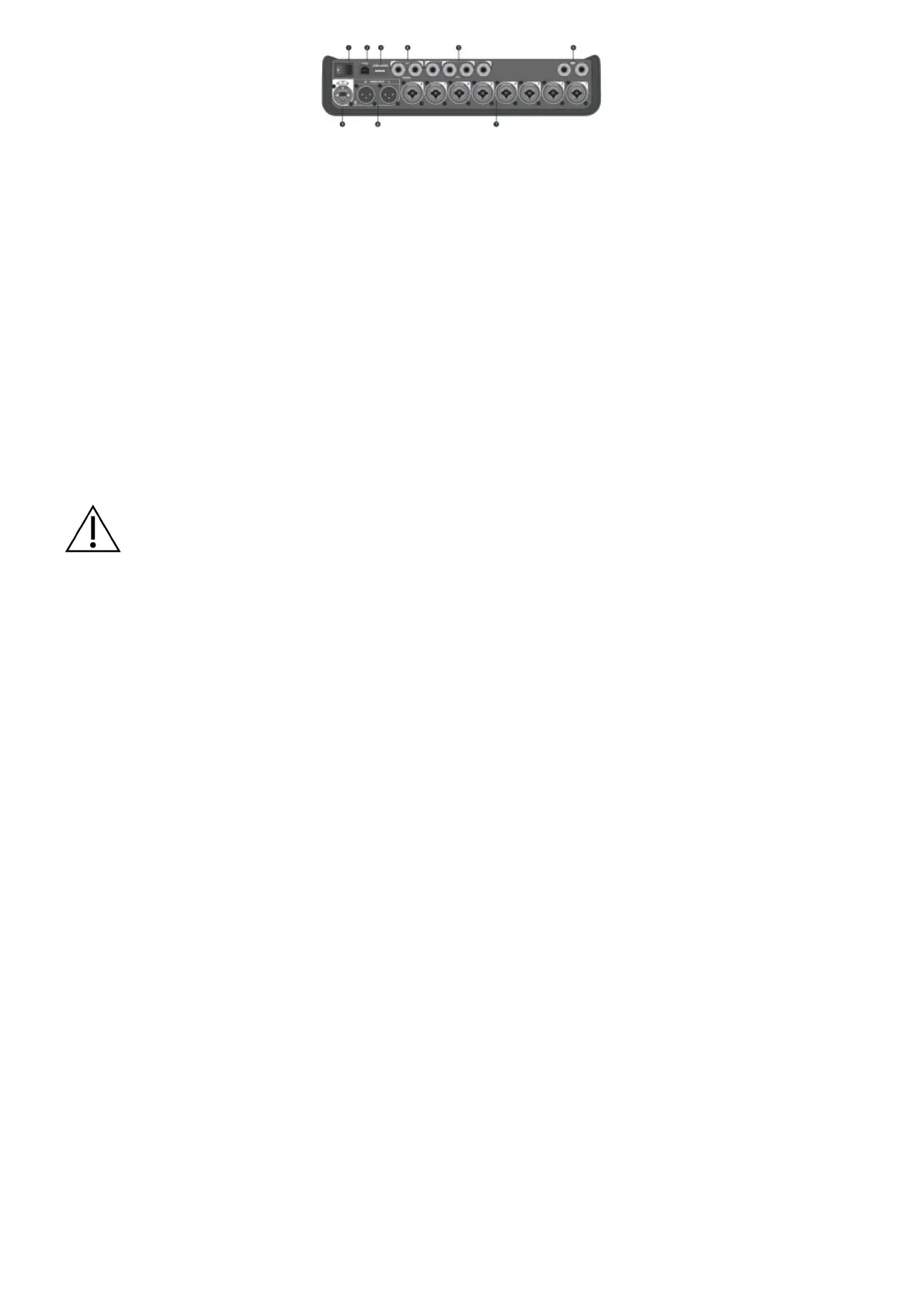

(1) POWER SWITCH: Turns the mixer on or off.
(2) USB 2.0 TYPE-B: A USB interface that allows you to connect the mixer to your computer.
(3) USB 2.0 TYPE-A: A USB interface that allows you to stream audio from your flash drive.
(4) ANALOG L/R OUTPUT: Main analog output. Accepts ¼-inch TRS balanced and TS unbalanced cables.
(5) AUX OUTPUT: Four user-definable analog outputs. Can be configured for a pre-fader, post-EQ, and effects, or
post-fader output. Accepts ¼-inch TRS balanced or TS unbalanced cables.
(6) AUX IN: Analog Input Channels 9/10. Accepts ¼-inch TRS balanced or TS unbalanced cables for line-level
inputs. Can be used for stereo input signals.
(7) INPUTS 1–8: Analog Input Channels 1–8. Accepts XLR balanced cables for microphones or ¼-inch TRS
balanced or TS unbalanced cables for high-impedance inputs, such as guitars.
(8) XLR STEREO OUTPUT: Stereo analog output. Accepts XLR balanced cables for stereo output.
(9) DIGITAL POWER PORT: For use w/ ToneMatch power supply (see “Connecting the ToneMatch® Power
Supply” on page 12).
Note: The T8S is NOT designed to connect digitally to the L1® Model 1S/II.
CAUTION: Although the ToneMatch port accepts a standard RJ-45 connector, do NOT connect the
T8S to a computer or phone network.
System Setup
Removing/Attaching the Cover
The T4S/T8S ToneMatch® mixer comes out of the carton with a cover installed on the top panel. The cover is
designed to protect the control panel while transporting or storing the mixer.
To remove the cover:
1. Place thumbs on notches on front of cover and slide cover forward.
2. Grab cover by the back and lift to remove it.
To attach the cover:
1. Slide cover over the mixer, from back to front.
2. The magnetized cover will engage on its own and secure itself to the mixer.
Figure 5. Removing and attaching the cover
