5.1.19 Earth Spring
(1) Turn the Exit chute cover ASSY upside down. Remove the Earth spring from the Exit chute
cover ASSY.

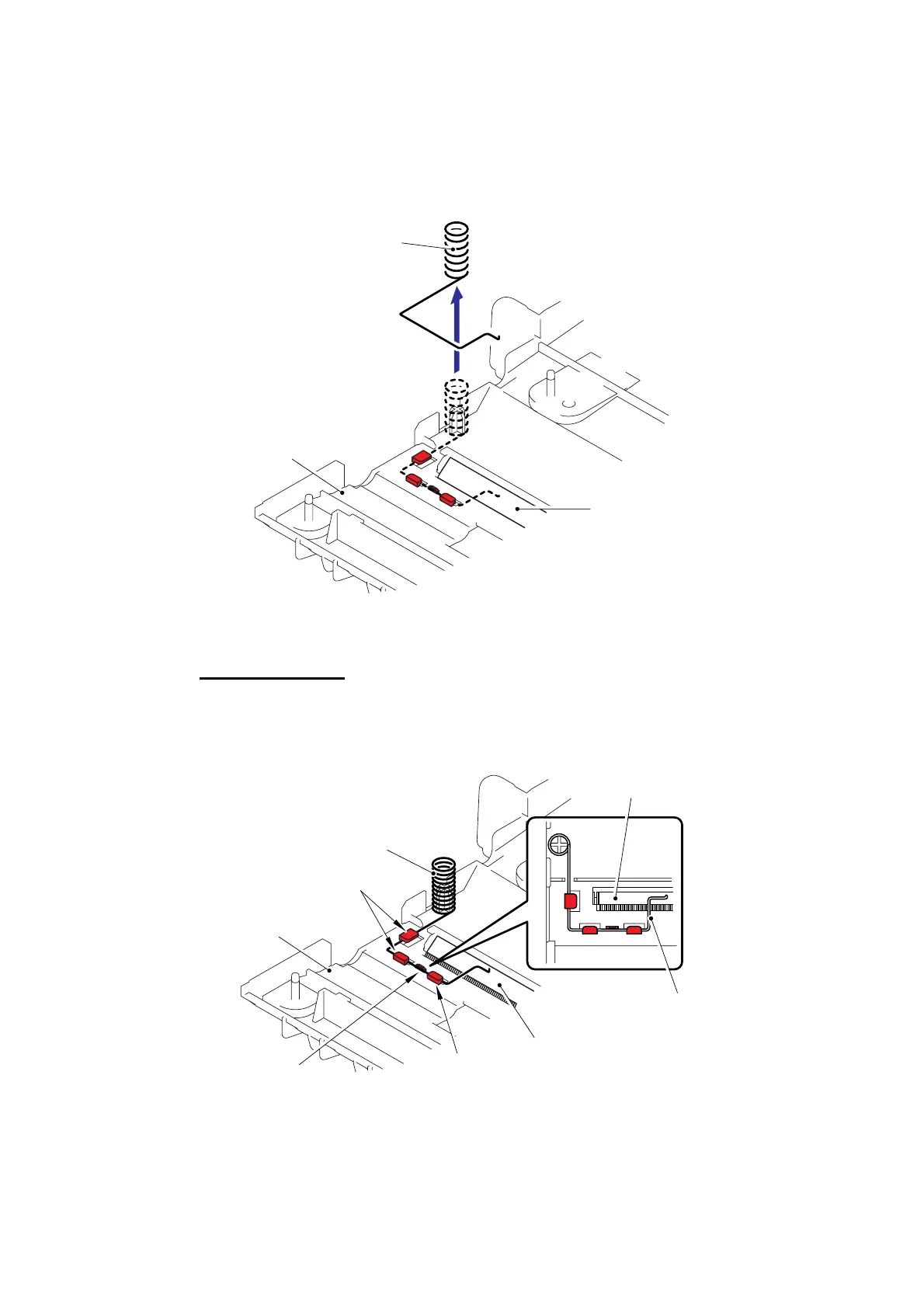

Fig. 5-33

Assembling Notes
When assembling the Earth spring, ensure that the end of the Earth spring is attached
onto the Antistatic brush as shown in the figure below.
Fig. 5-34
Earth spring
Exit chute cover ASSY
Hoo
k
Hooks
Rib
Earth spring
Earth spring
Antistatic brush
Antistatic brush
Exit chute cover ASSY
Antistatic brush
