Brother DCP-8065DN Servise Manual

Confidential
3-10
3.2.3 Paper Transfer
3.2.3.1 Paper supply
The feed roller picks up a few sheets or one sheet of paper from the paper tray every time it is
rotated and feeds it to the separation roller.

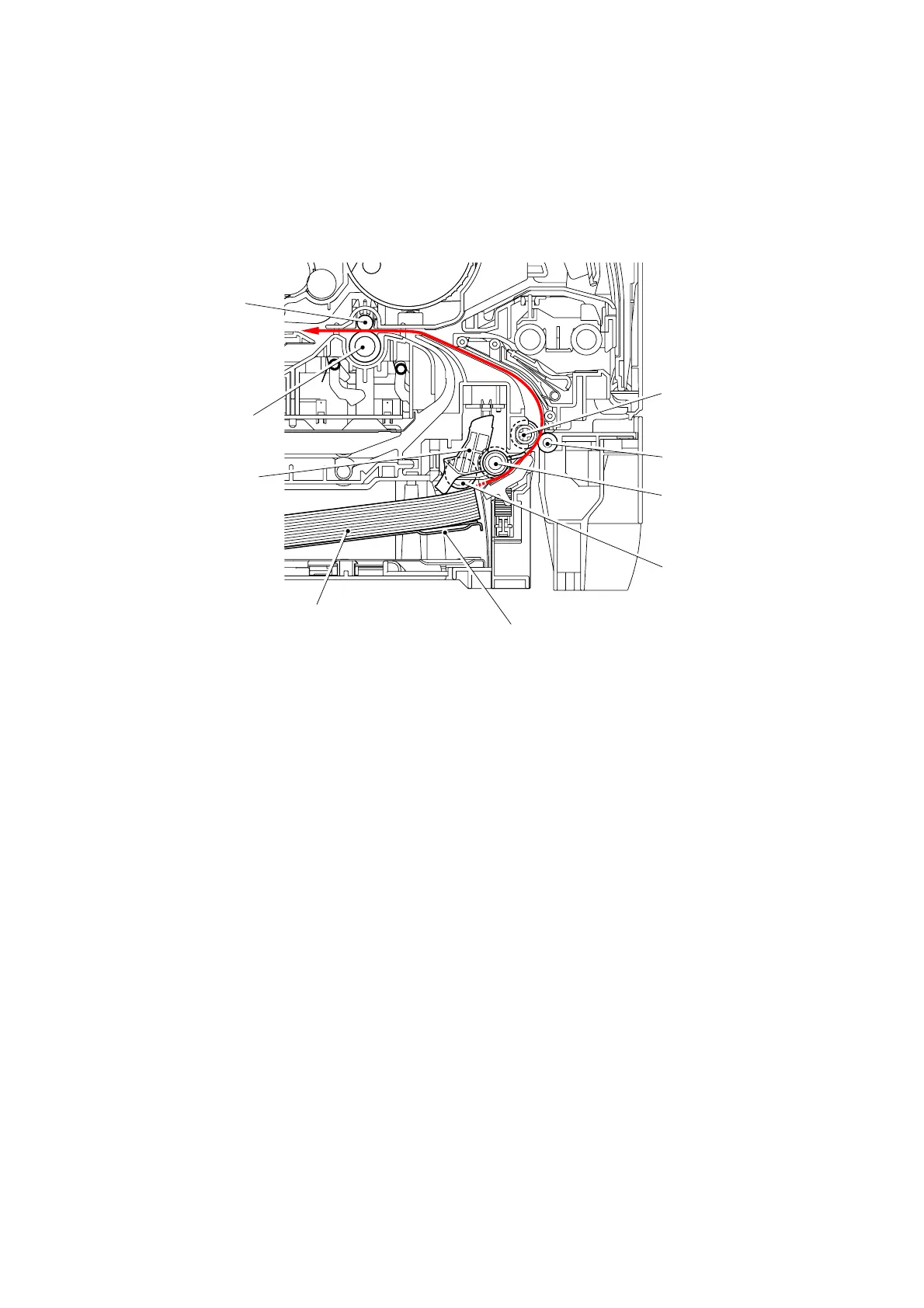

Fig. 3-11
The main motor drive is transmitted to the gears, and the gears are engaged. Then, the paper is
gripped between the separation roller and separation pad and separated into individual sheets.
The paper drawn out of the paper tray pushes against the regist front actuator, and the paper top
position or absence of paper is detected by the actuator movement. The tail edge actuator detects
the end of the paper fed.
When a paper jam occurs, the nips between the pressure roller and feed roller TR and between the
pinch roller and regist roller are released, which allows you to remove the jammed recording paper
easily.
Feed roller TR
Separation roller
Regist roller
Pinch roller
Feed roller
PE actuator
Pressure roller
Paper
Plate

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
