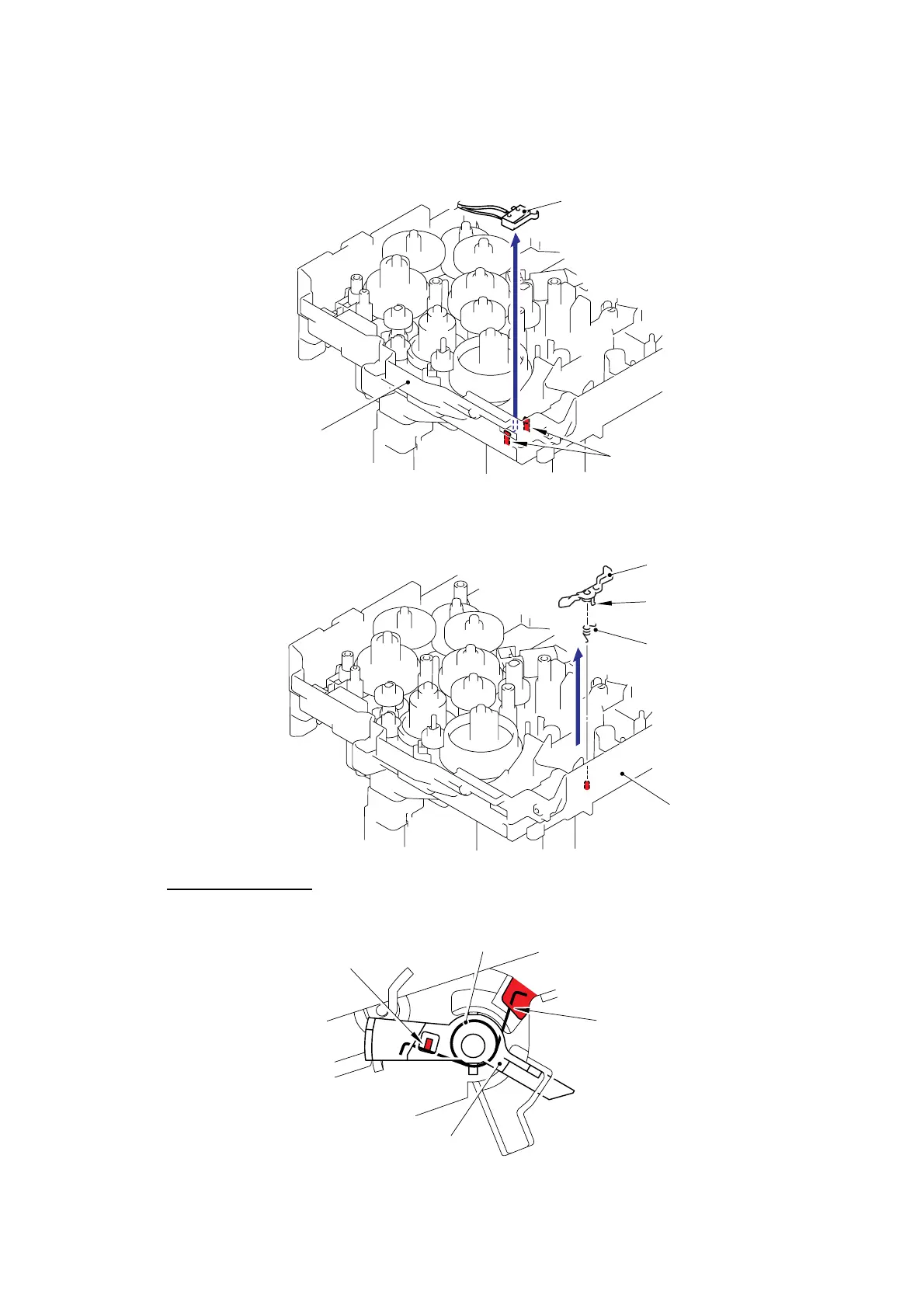

5.1.76 Interlock SW ASSY
(1) Remove the Interlock SW ASSY from the Frame L.
Fig. 5-143
5.1.77 New Toner Actuator
(1) Remove the New toner actuator and the New toner actuator spring.
Fig. 5-144

Assembling Notes
When assembling the New toner actuator spring, ensure that its direction is correct referring to
the figure below.
Fig. 5-145
Interlock SW ASSY
Frame L
Hooks
N
ew toner actuato
r
Hoo
k
N
ew toner actuator spring
Frame L
N
ew toner actuator spring
N
ew toner actuato
r
Hoo
k
Hoo
k
