VERTEX 70v User Manual 9
. . . . .
INSTALLATION
Site Requirements
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SITE REQUIREMENTS
Space Requirements
The spectrometer dimensions are 85cm (w) x 71cm (d) x 32cm (h). (For exact spec-
trometer dimensions refer to appendix D.) At the rear side, the spectrometer requires a
clearance of at least 25cm (10“). The spectrometer should be placed on a stable and
horizontal base. Note that the basic instrument has a weight of about 105kg.
When preparing the installation location for the spectrometer, take into consideration
that the mains power supply connection is easily accessible at any time. The mains
power supply can be interrupted, for example, either by disconnecting the safety plug or
switching off the mains switch on the spectrometer rear side or disconnecting the pri-
mary power receptacle.
Environmental Requirements
To ensure optimum spectrometer performance and long-term reliability the following
environmental conditions are essential:
Temperature Range: 18 - 35 °C (64 - 95 °F)
In case the vacuum pump is operated with installed noise reduction hood ensure the
ambient temperature does not exceed 32°C (90°F).
Humidity (non-condensing): 80% (relative humidity)
Temperature variations can impair the results of long-term measurements. Therefore,
the temperature variations should be less than 1°C per hour and should not exceed 2°C
per day for this type of measurement.

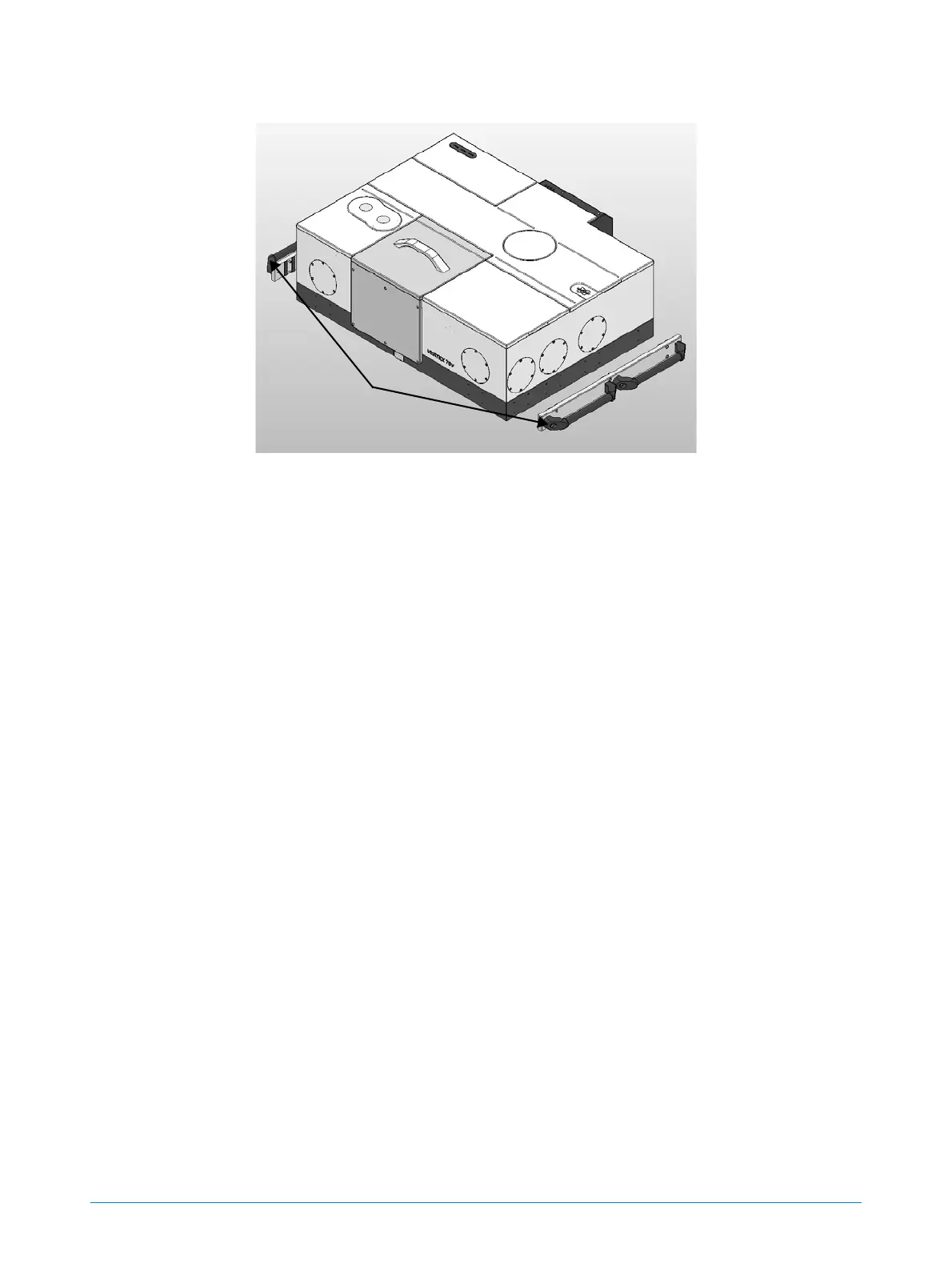

Figure 1: Installing the Transport Handles
Transport
Handles
≤
