VERTEX 70v User Manual 13
. . . . .
INSTALLATION
Connecting VERTEX 70v to the Vacuum Pump
CONNECTING VERTEX 70V TO THE VACUUM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMP
The attachment flange (NW25 flange) for connecting the vacuum pump is at the spec-
trometer rear side. Figure 3 shows the valve block with removed cover.
The vent openings are covered by a plug made from sintered-powder metal which is air-
permeable (i.e. the spectrometer can be vented with the plugs installed on the vent
opening). (See figure 8.) The plug functions like a filter preventing particles from enter-
ing the spectrometer together with the influent air.
Note: For detailed information about the vacuum pump refer to the user
manual provided by the vacuum pump manufacturer.
Attachment Flange for the Vacuum Pump
Opening for venting
the optical bench
(Note: When purging the
spectrometer this port is
used as purge gas inlet for
the optical bench.
Valve for evacuating
the optical bench
Valve for evacuating
the sample compart-
ment

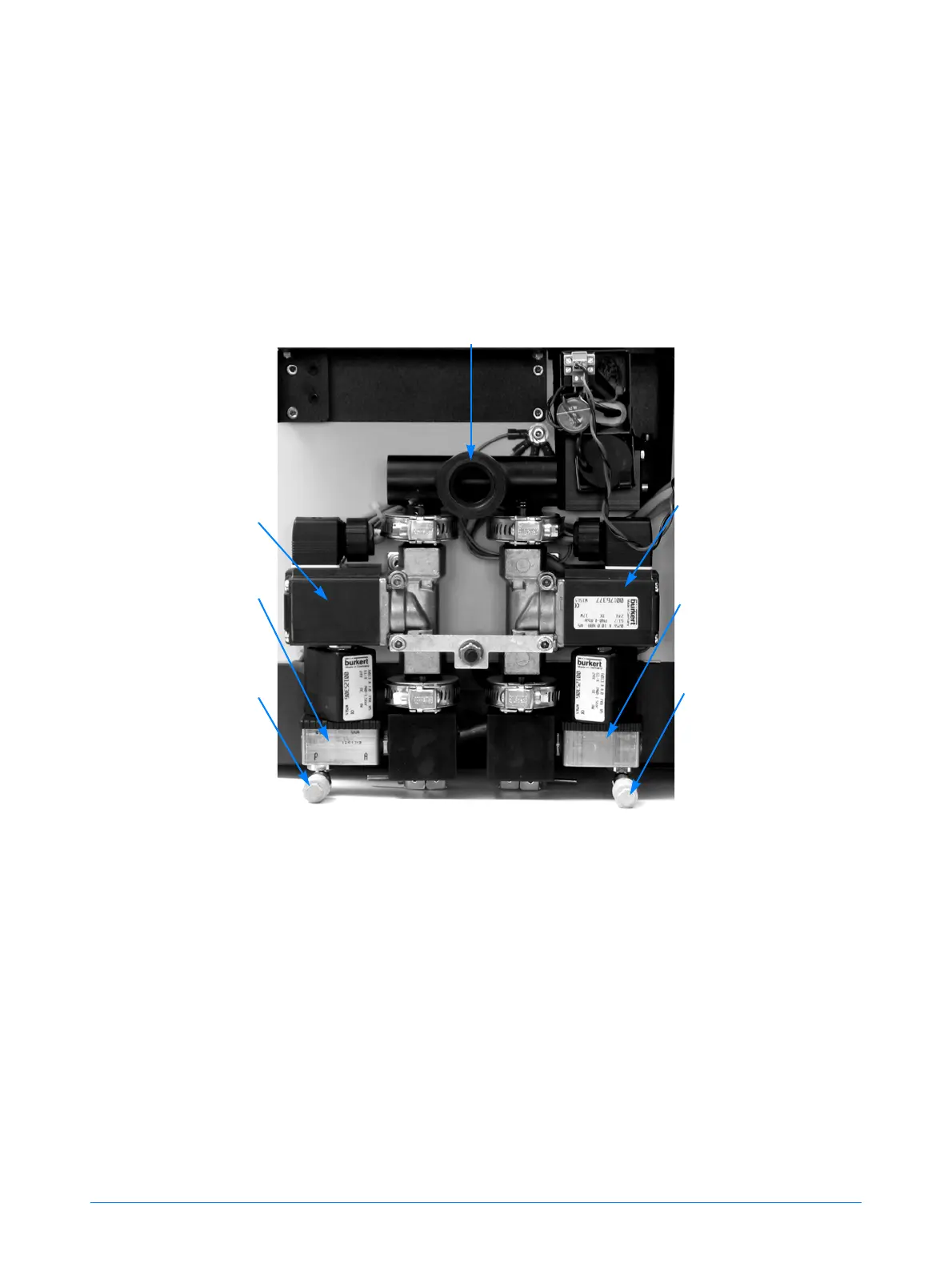

Figure 3: Valve Block (Spectrometer rear Side)
Opening for venting
the sample compart-
ment
(Note: When purging the
spectrometer this port is
used as purge gas inlet for
the sample compartment.
Valve for venting the
sample compartment
Valve for venting the
optical bench
